Hanwha - TEC-F16 - 16 Channel Ethernet over Coax Extender With Pass-Through PoE
Part number:
TEC-F16
Price:

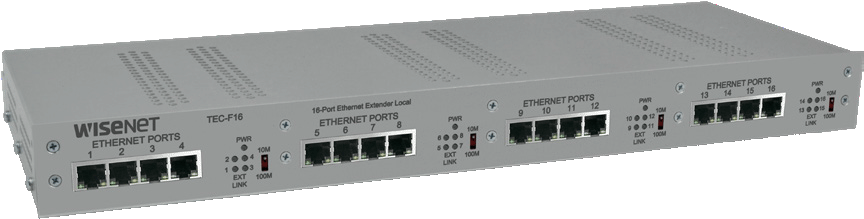

The TEC-F16 is a 16 channel, 1U rack-mounted Ethernet. over Coax extender. The Ethernet over copper TEC-F16 supports 16 channels of 10/100Mbps Ethernet with Pass-through PoE over coaxial cable. The unit is powered by local power and operates as the locally positioned device. These units provide the ultimate flexibility for extending a powered device (PD) over long distance copper. DIP switches are provided for user-selection of 10/100Mbps setting.
Features:
- Transmits individual Ethernet data channels with Pass-through PoE over standard Coaxial cable
- Extends Ethernet up to 5,000 feet (1,524 m) at 10 Mbps or 2,000 feet (610m) at 100 Mbps over Coaxial cable
- Extended temperature operation from -40°C to +75°C
- Extended Pass-through PoE meets the IEEE 802.3af standard for Power over Ethernet
- Full 10/100 Mbps Bandwidth
- Symmetric Bandwidth provides consistent upload and download with virtually zero packet loss over the total usable distance
- Perfect to retrofit existing analog CCTV installations to Ethernet-based systems
- Designed for CCTV systems for casinos, airports, school campuses, & more...
| Ethernet | |
| Data Interface | 10/100BaseT(X) Ethernet |
| IEEE 802.3 Compliant | |
| Data Rate | DIP-switch selectable 10/100Mbps |
| Full data rate / full duplex up to the maximum | |
| rated distance | |
| Standards | IEEE 802.3af PoE, |
| RFC: 768 UDP, 2068 HTTP, 793 TCP | |
| 791 IP, 1783 TFTP, 894 IP over Ethernet. | |
| Mechanical | |
| LED Indicators | Operating Power |
| Ethernet Link/Activity | |
| Extended Link/Activity | |
| Circuit Board | Meets IPC Standard |
| Size (L×W×H) | 1 CH: 3.3 × 2.5 × 1.1 in (8.4 × 6.4 × 2.8 cm) |
| 4 CH: 6.1 × 5.3 × 1.1 in (15.5 × 13.5 × 2.8 cm) | |
| 16 CH: 6.1 × 19 × 1.75 in (15.5 × 48.26 × 4.45 cm) | |
| Shipping Weight: | 1 CH: <1 lbs./0.5 kg |
| 4 CH: <2 lbs./0.9 kg | |
| 16 CH: <5 lbs./2.3 kg | |
| Connectors | |
| Ethernet | RJ-45 |
| Operating Power | Powered by PoE or 2-pin screw terminal for |
| local power | |
| Environmental | |
| MTBF | >100,000 hours |
| Operating Temp | -40˚ C to +75˚ C |
| Storage Temp | -40˚ C to +80˚ C |
| Relative Humidity | 0% to 95% (non-condensing) |
