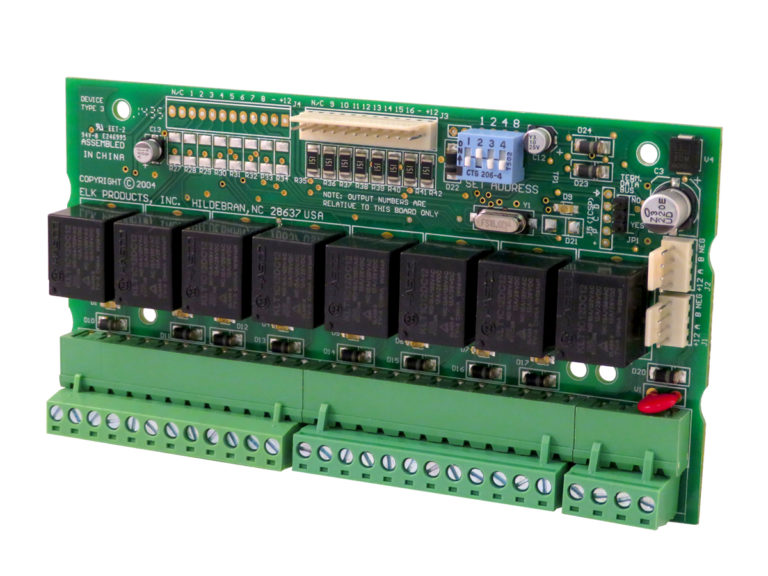

ELK - M1XOVR - 16 Output Expander, 8 voltage (flying leads) + 8 relays

Product Overview

The ELK-M1XOVR is a 16-output expander for M1 Gold or M1EZ8 controls, adding 8 voltage outputs (12 VDC @ 50 mA each) and 8 SPDT relay outputs (7A @ 30 VDC, 10A @ 125 VAC). It operates on the 4-wire data bus with DIP switch address settings. Up to 12 output expanders may be used for a total of 208 outputs.

Key Configuration

• • Voltage outputs: 8 outputs, 12 VDC @ 50 mA each (flying leads)
• • Relay outputs: 8 SPDT relays, 7A @ 28 VDC, 10A @ 125 VAC
• • Operating power range: 9 to 14 VDC; current draw: 65 mA nominal, 330 mA max
• • Wire harness length: 12" (12-conductor flying lead)
• • Dimensions: 6" × 3.25" × 0.75" H

Key Features

It operates on the 4-wire RS-485 data bus with DIP switch addressing and features a diagnostic status LED. The 8 voltage outputs can be converted to relays using an optional M1RB relay board. The unit mounts easily in enclosures using the included ELK-SWG glides or structured wire plates. Each package includes the expander, a 12-conductor cable assembly, mounting glides, and instructions.
