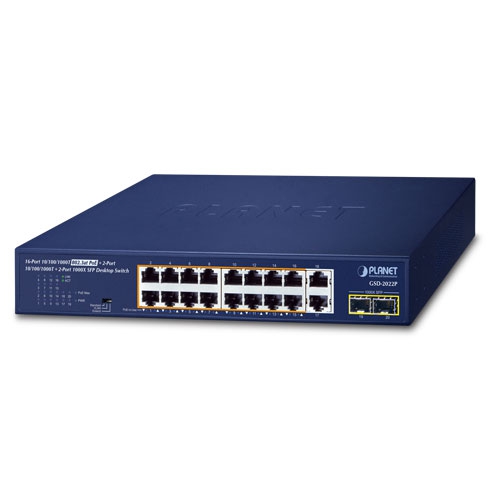

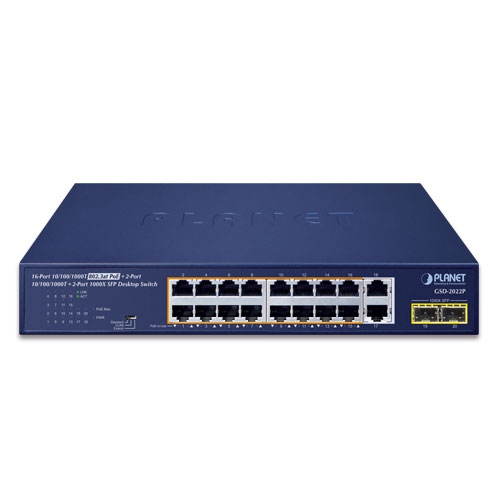

Planet - GSD-2022P - 16-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T + 2-Port 1000X SFP Unmanaged Gigabit Ethernet Switch

Product Overview

The Planet GSD-2022P is an unmanaged Gigabit PoE+ switch with 16 PoE+ ports (185W budget), 2 Gigabit uplinks, and 2 SFP slots, delivering 40Gbps switching capacity. It supports Standard, VLAN, and Extend modes (up to 250m at 10Mbps), includes PD Alive Check, and allows desktop or rack-mount installation.

Key Configuration

• Copper ports: 16 × 10/100/1000BASE-T PoE+ (ports 1–16), 2 × 10/100/1000BASE-T (ports 17–18)
• SFP slots: 2 × 1000BASE-X SFP
• PoE budget: 185W total; per-port output: 30W (802.3at) / 15.4W (802.3af) at 54V DC
• Switch fabric: 40Gbps non-blocking; throughput: 29.76 Mpps
• Dimensions: 280 × 180 × 44 mm (1U); weight: 1810g

Key Features

DIP switch modes include Standard (100m), VLAN for port isolation, and Extend mode (up to 250m at 10Mbps with 20W PoE). It features PD Alive Check for automatic power cycling when a connected device stops sending data, an 8K MAC address table, and support for 9216-byte jumbo frames. Protection includes 6KV contact and 8KV air ESD, along with ±6KV surge protection. The switch is TAA compliant, certified to FCC Part 15 Class A and CE standards, supports Energy-Efficient Ethernet (IEEE 802.3az), and allows both end-span and mid-span PoE configurations (pins 1/2/4/5+, 3/6/7/8-).

Technical Context

The GSD-2022P is an IP surveillance PoE switch with a 185W budget supporting up to 16 cameras, depending on power use. Extend mode allows up to 250m reach at 10Mbps, VLAN isolates ports, and dual SFP slots provide fiber uplinks up to 120km. It also features PD Alive Check for automatic device recovery and supports both end-span and mid-span PoE compatibility.

Installation Notes

1U rack/desktop switch (280 × 180 × 44 mm, 1.81 kg) with 16 PoE+ ports (185W budget), 2 SFP uplinks, and 1 fan. It operates on 100–240V AC (up to 201W) in 0–50°C conditions and includes 6KV/8KV ESD plus ±6KV surge protection. PoE supports 16×7W, 12×15.4W, or 6×30W devices, with DIP modes for Standard, VLAN, and Extend. It also features LED indicators, a rackmount kit, and supports 1000BASE-SX/LX/BX SFP modules.
