Planet - GS-4210-16P2S - IPv6/IPv4, 16-Port Managed 802.3at PoE+ Gigabit Ethernet Switch + 2-Port 100/1000X SFP
Product Overview

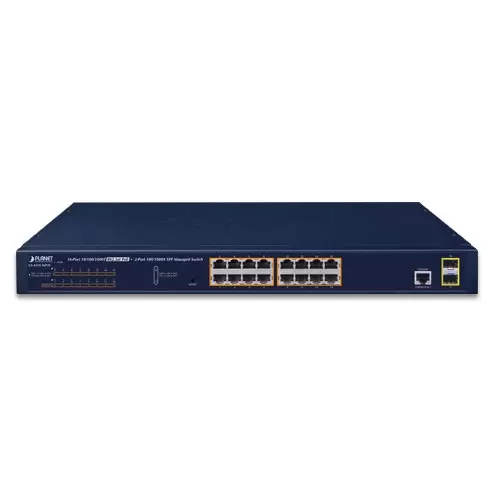

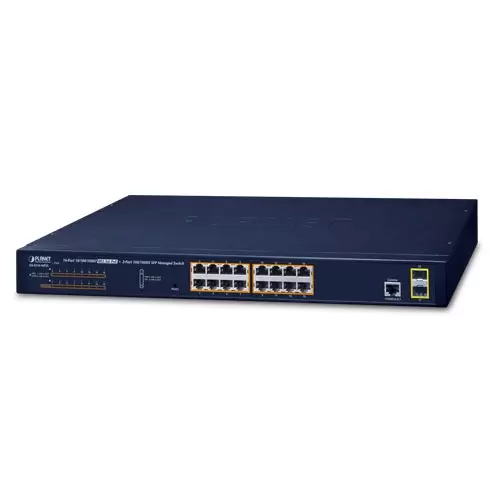

The Planet GS-4210-16P2S is a 16-port managed Gigabit PoE+ switch with 16 802.3at PoE+ ports (220W budget) and 2 100/1000BASE-X SFP slots, delivering 36Gbps switch fabric and 26.78 Mpps throughput. Features IPv6/IPv4 dual stack, ERPS ring support, CloudViewer app monitoring, MQTT, and cybersecurity features (HTTPS, SNMPv3, SSH/SSL). Rack-mountable 1U metal chassis with 2 smart fans.
Key Configuration
• Copper ports: 16 × 10/100/1000BASE-T RJ45 with 802.3af/at PoE+ (End-span, pins 1/2+,3/6-)
• SFP slots: 2 × 100/1000BASE-X SFP (supports 100/1000Mbps dual mode)
• Console port: 1 × RJ45-to-RS232 (115200, 8, N, 1)
• PoE budget: 220W max; per-port output: 53V DC, 30.8W max
• Switch fabric: 36Gbps non-blocking; throughput: 26.78 Mpps @ 64 bytes
• Dimensions: 445 × 207 × 45 mm (1U); weight: 2.8kg
Key Features
This TAA-compliant switch features a hardware reset button (<5s reboot; >5s factory default), 256 VLAN groups (Q-in-Q, voice, protocol, GVRP), and flexible link aggregation (static 8-port or dynamic LACP 16-port trunks). Traffic management is handled via 8 priority queues (Strict Priority/WRR), 802.1p, DSCP, and 256-group IGMP v2/v3 snooping.
Technical Context
Security and diagnostic features include 802.1X, RADIUS/TACACS+, MAC filtering, DHCP Snooping Option 82, BPDU guard, and local/remote Syslog with LLDP/SNTP. To automate administration, it incorporates a ping-based "PD alive check" to power-cycle frozen devices, port-by-port PoE schedules, and a weekly scheduled reboot tool. The FCC Class A/CE certified unit draws up to 281W (964 BTU) and supports secure management via Web, Telnet, SSH/SSL, SNMP v1/v2c/v3, and a dedicated RJ45 console port.
Installation Notes

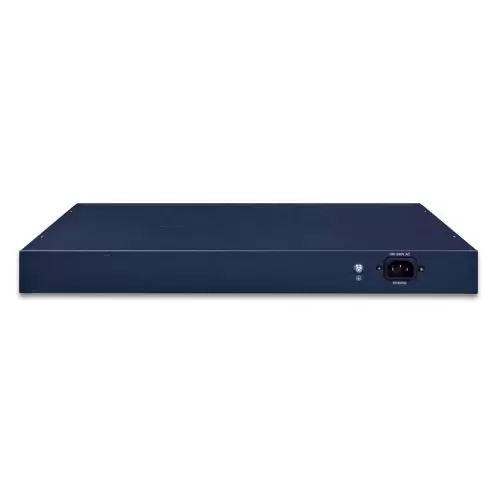

This 1U rack-mount switch measures 445 × 207 × 45 mm (2.8kg), operates on an internal 100–240V AC power supply, and is cooled by two smart fans (0–50°C operating range). Physical features include an RJ45-to-RS232 console port, dual 100/1000 SFP slots, and dedicated status LEDs, with a storage tolerance of -10°C to 70°C. Remote management is expanded via CloudViewer app and MQTT support.
| Hardware Specifications | |
| Copper Ports | 16 10/100/1000BASE-T RJ45 auto-MDI/MDI-X port |
| SFP/mini-GBIC Slots | 2 100/1000BASE-X SFP interfaces, supporting 100/1000Mbps dual mode |
| PoE Injector Port | 16 ports with 802.3af/at PoE injector function |
| Console | 1 RJ45-to-RS232 serial port (115200, 8, N, 1) |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 36Gbps/non-blocking |
| Switch Throughput@64 bytes | 26.78Mpps@64 bytes |
| MAC Address Table | 8K entries |
| Shared Data Buffer | 4Mbits |
| Flow Control | IEEE 802.3x pause frame for full-duplex Back pressure for half-duplex |
| Jumbo Frame | 9K bytes |
| Reset Button | < 5 sec: System reboot > 5 sec: Factory default |
| LED | System: Power (Green) 10/100/1000T RJ45 Interfaces (Port 1 to Port 16): 1000 LNK/ACT (Green), 10/100 LNK/ACT (Orange), PoE (Orange) 100/1000Mbps SFP Interfaces (Port 17 to Port 18): 1000 LNK/ACT (Green), 100 LNK/ACT (Orange) |
| Thermal Fan | 2 |
| Power Requirements | 100~240V AC, 50/60Hz, 4A (max.) |
| Power Consumption/Dissipation | Max. 281 watts/964 BTU |
| Dimensions (W x D x H) | 445 x 207 x 45 mm (1U height) |
| Weight | 2.8kg |
| Enclosure | Metal |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3at Power over Ethernet Plus/PSE |
| PoE Power Supply Type | End-span |
| PoE Power Output | Per Port 53V DC, 30.8 watts (max.) |
| PoE Power Budget | 220 watts (max.) |
| Number of PDs, 7 watts | 16 units |
| Number of PDs, 15.4 watts | 14 units |
| Number of PDs, 30 watts | 7 units |
| Layer 2 Functions | |
| Port Mirroring | TX/RX/Both Many-to-1 monitor |
| VLAN | 802.1Q tagged-based VLAN Up to 256 VLAN groups, out of 4094 VLAN IDs 802.1ad Q-in-Q tunneling Voice VLAN Protocol VLAN GVRP |
| Link Aggregation | IEEE 802.3ad LACP supports 8 groups of 16-port trunk Static trunk supports 8 groups of 8-port trunk |
| Spanning Tree Protocol | IEEE 802.1D STP IEEE 802.1w RSTP IEEE 802.1s MSTP |
| Multicast | IGMP (v2/v3) Snooping IGMP Querier Up to 256 multicast groups |
| Access Control List | IPv4 IP-based ACL MAC-based ACL |
| QoS | 8 mapping ID to 8 level priority queues – Port Number – 802.1p priority – DSCP field in IP Packet Traffic classification based, Strict priority and WRR |
| Security | IEEE 802.1X Port-based authentication Built-in RADIUS client to cooperate with RADIUS server RADIUS/TACACS user access authentication MAC filter Static MAC address DHCP Snooping and DHCP Option82 STP BPDU Guard, BPDU Filtering and BPDU Forwarding |
| Management Functions | |
| Basic Management Interfaces | Web browser, Telnet, SNMP v1/v2c/v3 and RJ45 Console Firmware upgrade by HTTP/TFTP protocol through Ethernet network Remote/Local Syslog System log LLDP protocol SNTP |
| Secure Management Interfaces | SSH, SSL, SNMP v3 |
| SNMP MIBs | RFC 3635 Ethernet-like MIB RFC 2863 Interface Group MIB RFC 2819 RMON (1, 2, 3, 9) RFC 1493 Bridge MIB |
| Standards Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Standards Compliance | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX/100BASE-FX IEEE 802.3z Gigabit SX/LX IEEE 802.3ab Gigabit 1000BASE-T IEEE 802.3x Flow Control and Back pressure IEEE 802.3ad Port Trunk with LACP IEEE 802.1D Spanning Tree protocol IEEE 802.1w Rapid Spanning Tree protocol IEEE 802.1s Multiple Spanning Tree protocol IEEE 802.1p Class of Service IEEE 802.1Q VLAN Tagging IEEE 802.1x Port Authentication Network Control IEEE 802.1ab LLDP IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus RFC 768 UDP RFC 793 TFTP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP version 1 RFC 2236 IGMP version 2 RFC 3376 IGMP version 3 |
| Environment | |
| Operating | Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Storage | Temperature: -10 ~ 70 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
