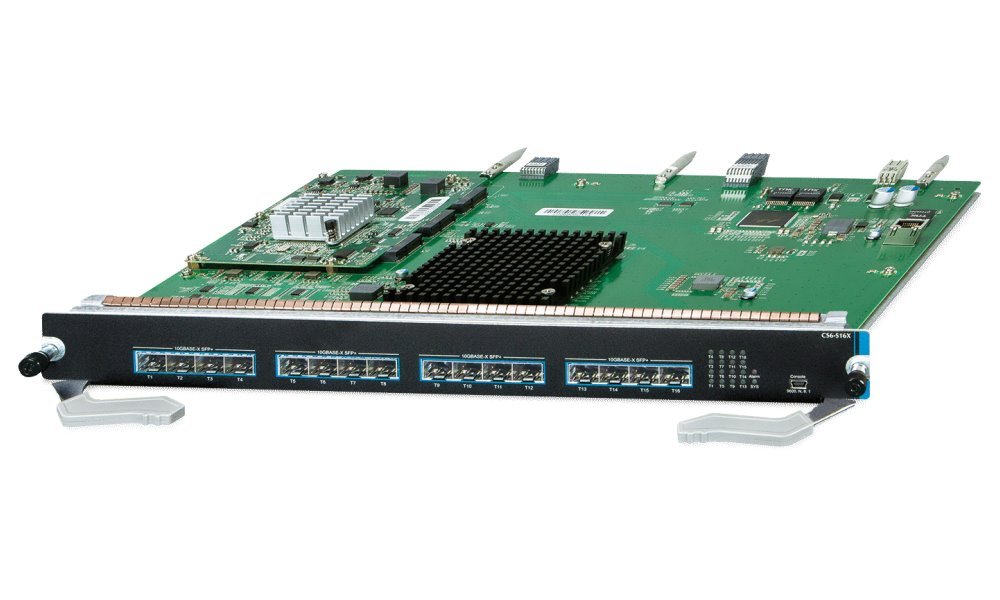

Planet - CS6-S16X - 16-Port 10G SFP+ Switch Module for CS-6306R
Part number:
CS6-S16X
Price:
16-Port 10G SFP+ Switch Module for CS-6306R
| SFP+/mini-GBIC Slots | 16 x 1G/10GBASE-X SFP+ slots |
| Switch Fabric | 320Gbps |
| Throughput | 238Mpps@64Bytes |
| LED | 1 x Alarm LED – Red. 1 x SYS LED – Green. LINK/ACT LED – Green. |
| Standards Compliance | IEEE 802.3z Gigabit SX/LX IEEE 802.3ae 10 Gigabit Ethernet |
| Dimensions (WxDxH) | 400 x 300 x 41 mm |
| Weight (empty) | 2424g |
| CS-6306R Allowed Module Slots | Slots 1, 2, 3 and 4 |
Name
Description
Size
Downloads
File
Quick Guide
1.9mb
