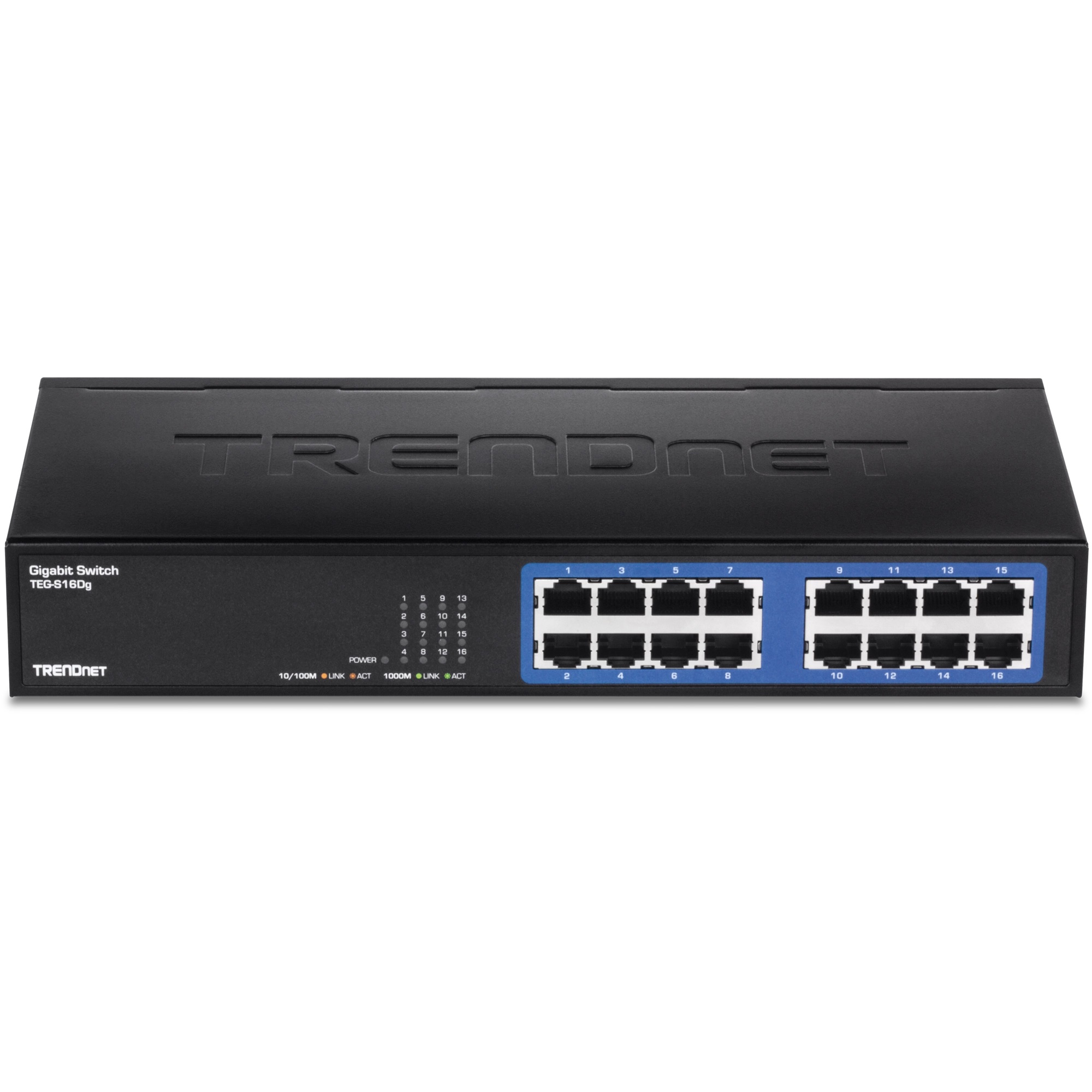

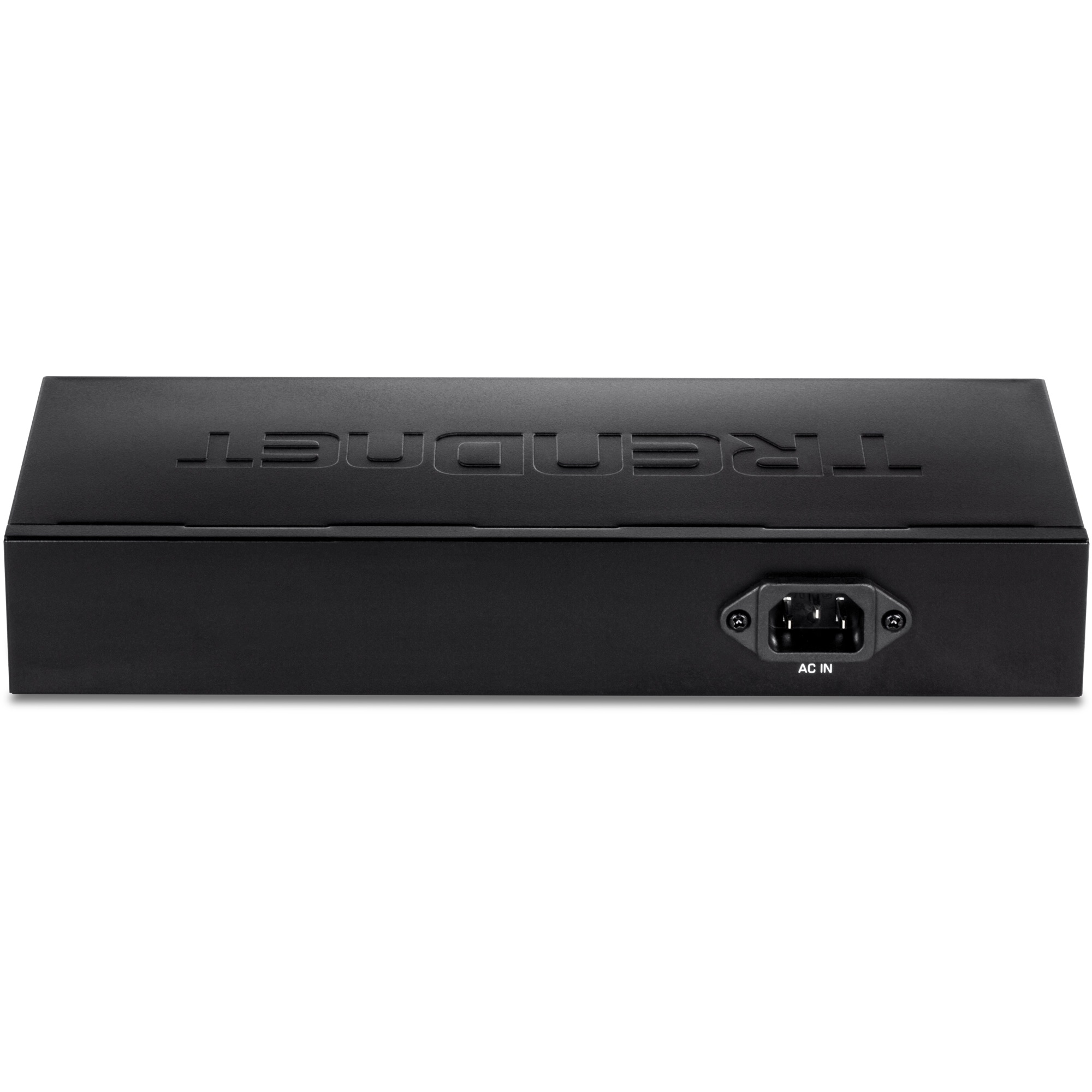

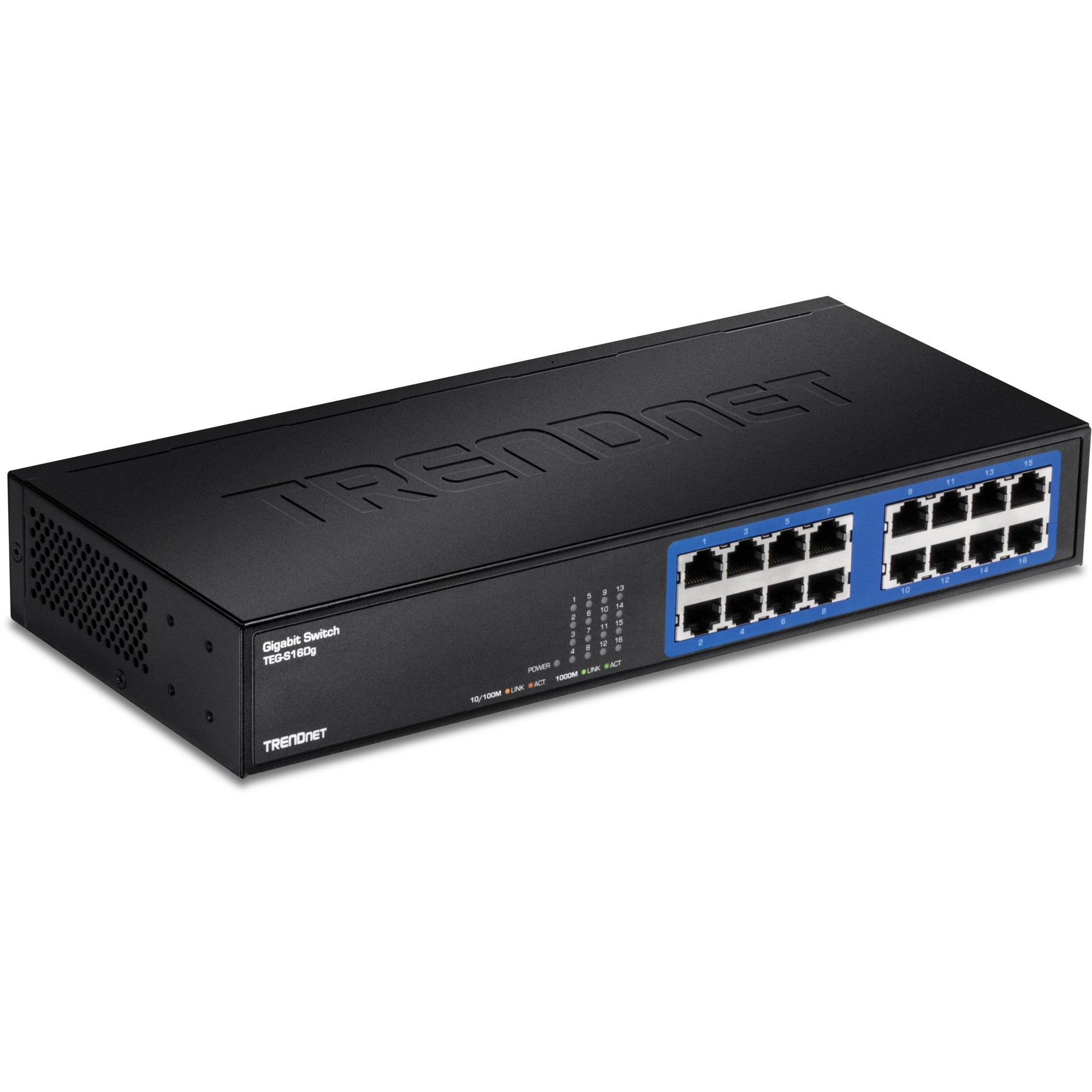

TRENDNET - TEG-S16Dg - 16-port Gigabit GREENnet Switch(Metal Desktop) w/ internal power
TRENDNET - TEG-S16Dg - 16-port Gigabit GREENnet Switch(Metal Desktop) w/ internal power
Part number:
TEG-S16Dg
Price:
Dealers only
Add to Quote/Project Registration
Description Specifications Downloads

The 16-Port Gigabit GREENnet Desktop Switch, model TEG-S16Dg, provides high bandwidth performance, ease of use, and reliability, all while reducing power consumption by up to 70%*. GREENnet technology automatically adjusts power consumption as needed, resulting in substantial energy savings. Embedded GREENnet technology works right out of the box with no management requirement.



Features:

  • GREENnet technology reduces power consumption by up to 70%
  • 16 x Gigabit RJ-45 ports
  • Sturdy metal desktop switch with built-in power supply
  • 32 Gbps forwarding capacity
  • NDAA / TAA compliant (U.S. and Canada only)
  • Lifetime Warranty
Standards
  • IEEE 802.3 10Base-T
  • IEEE 802.3u 100Base-TX
  • IEEE 802.3ab 1000Base-T
  • IEEE 802.3x Flow Control
  • IEEE 802.3az Energy Efficient Ethernet
Network Media
  • Ethernet: Cat. 5 up to 100 m
  • Fast Ethernet: Cat. 5 and 5e up to 100 m
  • Gigabit Ethernet: Cat. 5e and 6 up to 100 m
Data Rate
  • Ethernet: 10 Mbps / 20 Mbps (half / full-duplex)
  • Fast Ethernet: 100 Mbps / 200 Mbps (half / full-duplex)
  • Gigabit Ethernet: 2000 Mbps (full-duplex)
Protocol / Topology
  • CSMA / CD, Star
Power Consumption
  • 10.1 Watts (max.)
Switch Fabric
  • 32 Gbps
Interface
  • 16 x 10/100/1000 Mbps Auto-MDIX RJ-45 ports
Data RAM Buffer
  • 512 KB
  • 8 K entries
Jumbo Frame Support
  • Up to 10 KB
Diagnostic LED
  • Power, 10/100 Mbps Link / ACT, 1000 Mbps Link / ACT
Power
  • 100~240 VAC, 50/60 Hz Internal universal switching power
Dimension
  • 280 x 125.8 x 44 mm (11 x 5 x 1.7 in.)
Weight
  • 1.1 kg (2.4 lbs.)
Temperature
  • Operating: 0° ~ 40° C (32° ~ 104° F)
  • Storage: -10° ~ 70° C (14° ~ 158° F)
Humidity
  • Max. 90% (non-condensing)
Certifications
  • CE, FCC
Warranty
  • Lifetime Warranty*

PACKAGE CONTENTS

  • TEG-S16Dg
  • Quick Installation Guide
  • Power cord (1.8 m / 6 ft.)
Name
Description
Size
Downloads
File
Datasheet
0.5mb
