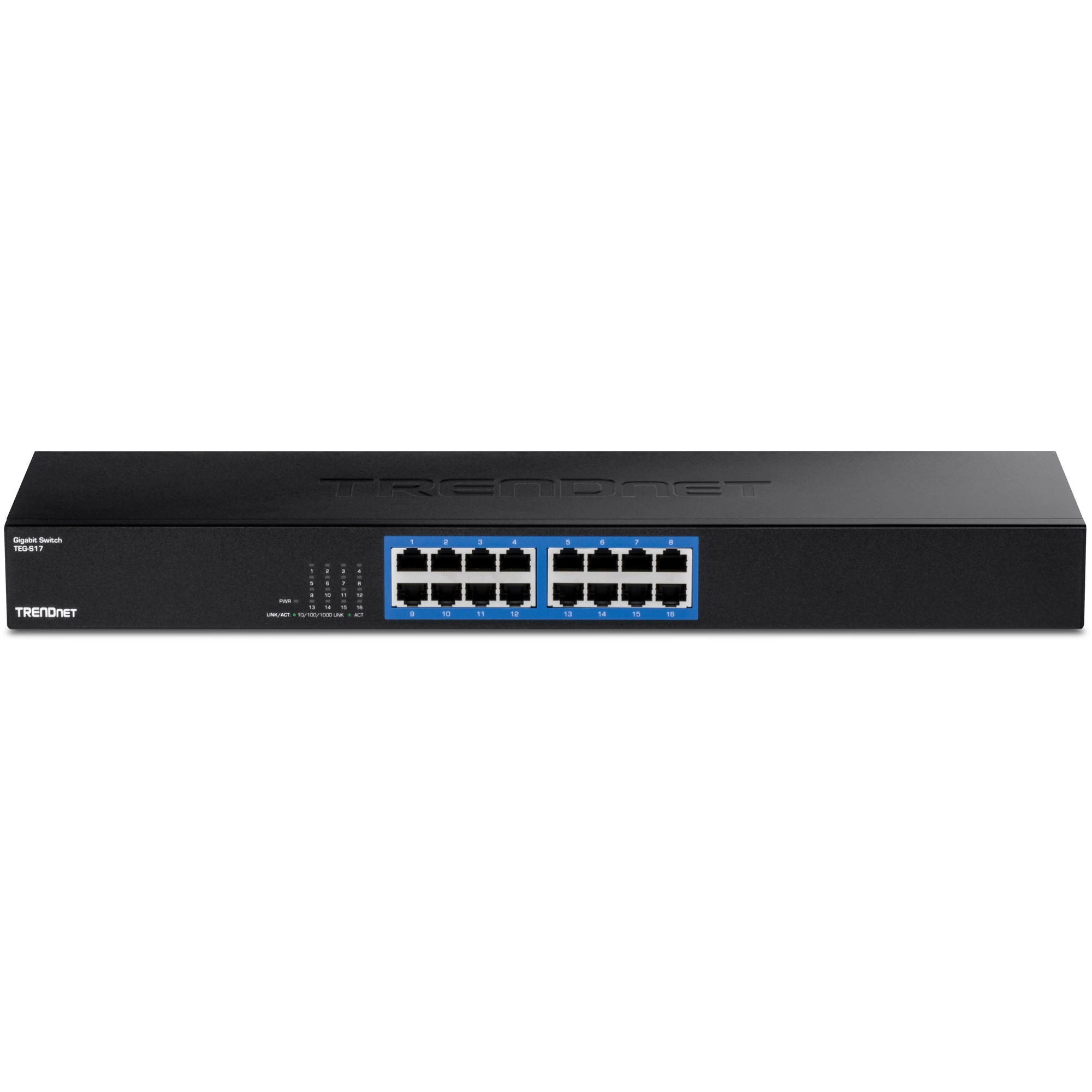

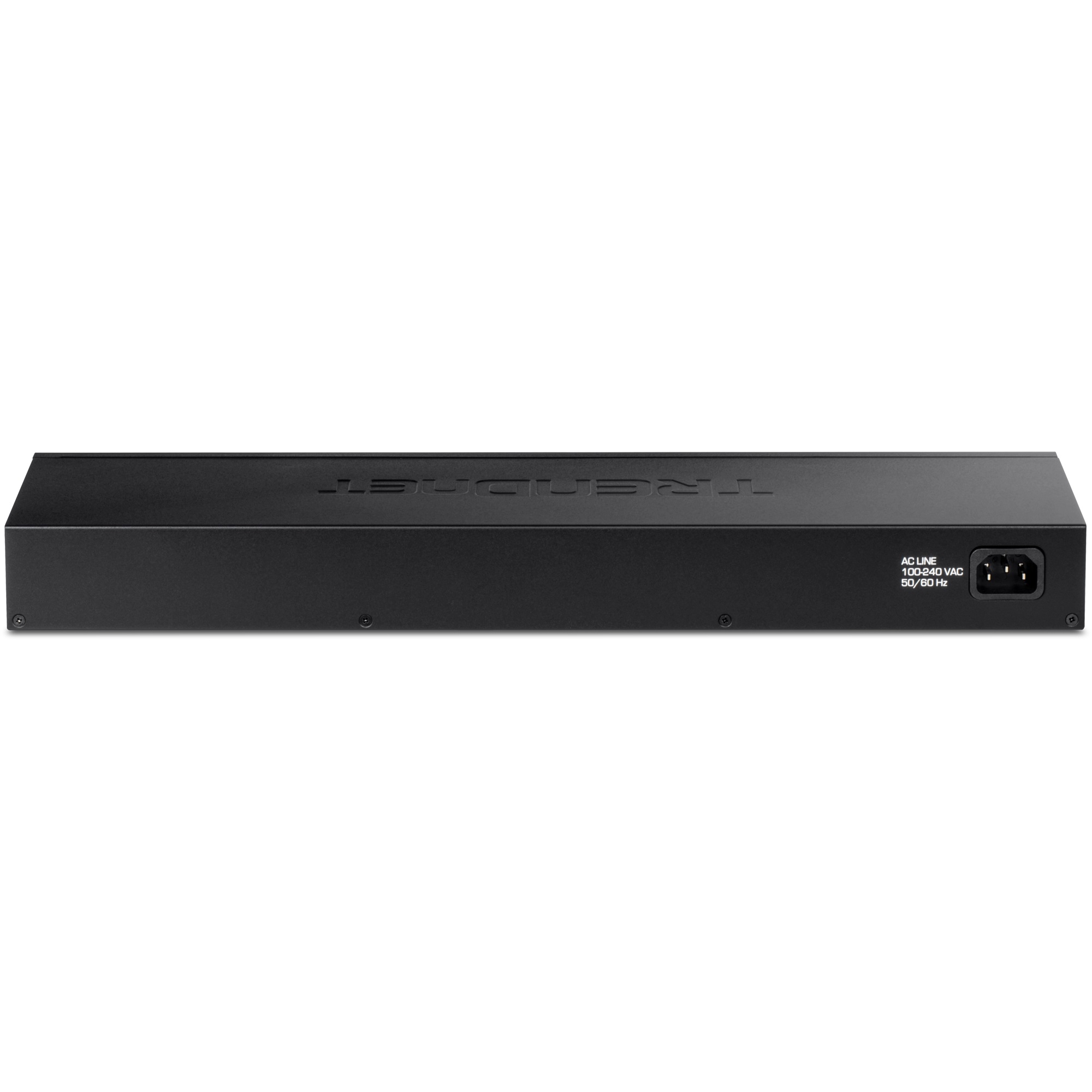

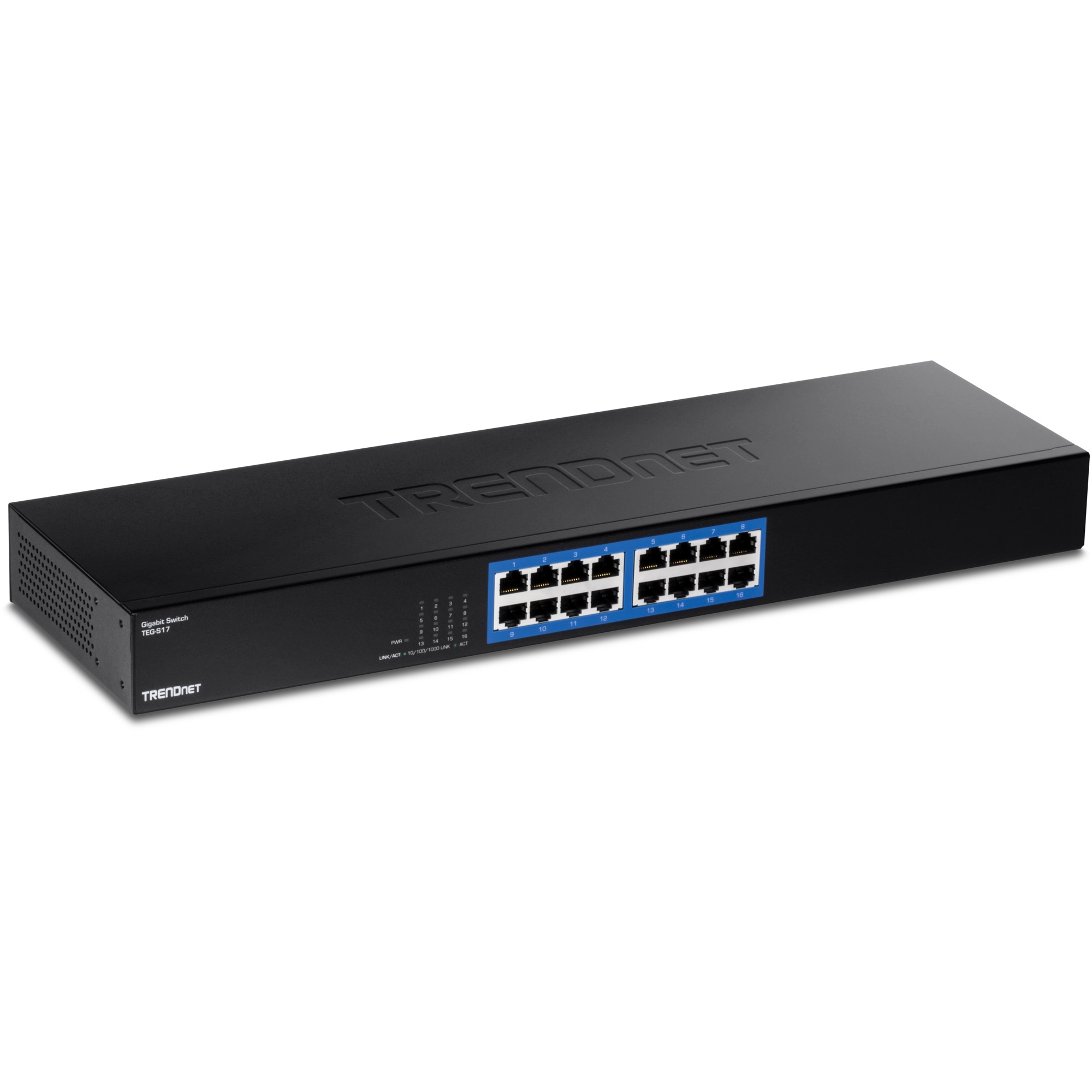

TRENDNET - TEG-S17 - 16-port Gigabit Switch(Rack Mount)

Name: TRENDNET - TEG-S17 - 16-port Gigabit Switch(Rack Mount)
Brand: Trendnet
SKU: TEG-S17

Part number:

TEG-S17

Price:

Dealers only

Add to Quote/Project Registration

Description Specifications Downloads

The 16-Port Gigabit Switch, model TEG-S17, provides high-bandwidth performance, ease of use, and reliability. Boost office network efficiency and eliminate network congestion with gigabit speeds and a total switching capacity of 32Gbps with full-duplex mode. A built-in universal power supply reduces cable clutter, and diagnostic LEDs help with network troubleshooting. Plug and play this sturdy metal switch for reliable high-speed network connectivity.

Features:

16 x Gigabit RJ-45 ports
Sturdy metal switch
Built-in power supply
32Gbps forwarding capacity
Fanless design
1U 19” rackmount brackets included
NDAA / TAA compliant (U.S. and Canada only)
Lifetime Warranty

Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3ab
Device Interface	16x Gigabit ports LED indicators
Data Transfer Rate	Ethernet: 10Mbps (half duplex), 20Mbps (full duplex) Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex) Gigabit: 2000Mbps (full duplex)
Performance	Switching Capacity: 32Gbps RAM Buffer: 512KB MAC Address Table: 8K entries Forwarding Rate: 23.8Mpps (64-byte packet size) Jumbo Frames: 9KB
Special Features	Rack Mountable
Power	Internal power supply: 100 – 240V AC, 50/60 Hz, 0.2A Max. Consumption: 9.19W
Fan/Acoustics	Fanless design
MTBF	1,121,721 hours
Operating Temperature	0° – 40° C (32° – 104° F)
Operating Humidity	Max. 90% non-condensing
Dimensions (L x W x H)	435 x 130 x 43mm (17.12 x 5.11 x 1.69 in.)
Weight	1.63kg (3.59 lbs.)
Certifications	FCC CE ETL
Warranty	Lifetime Warranty*

PACKAGE CONTENTS

TEG-S17
Quick Installation Guide

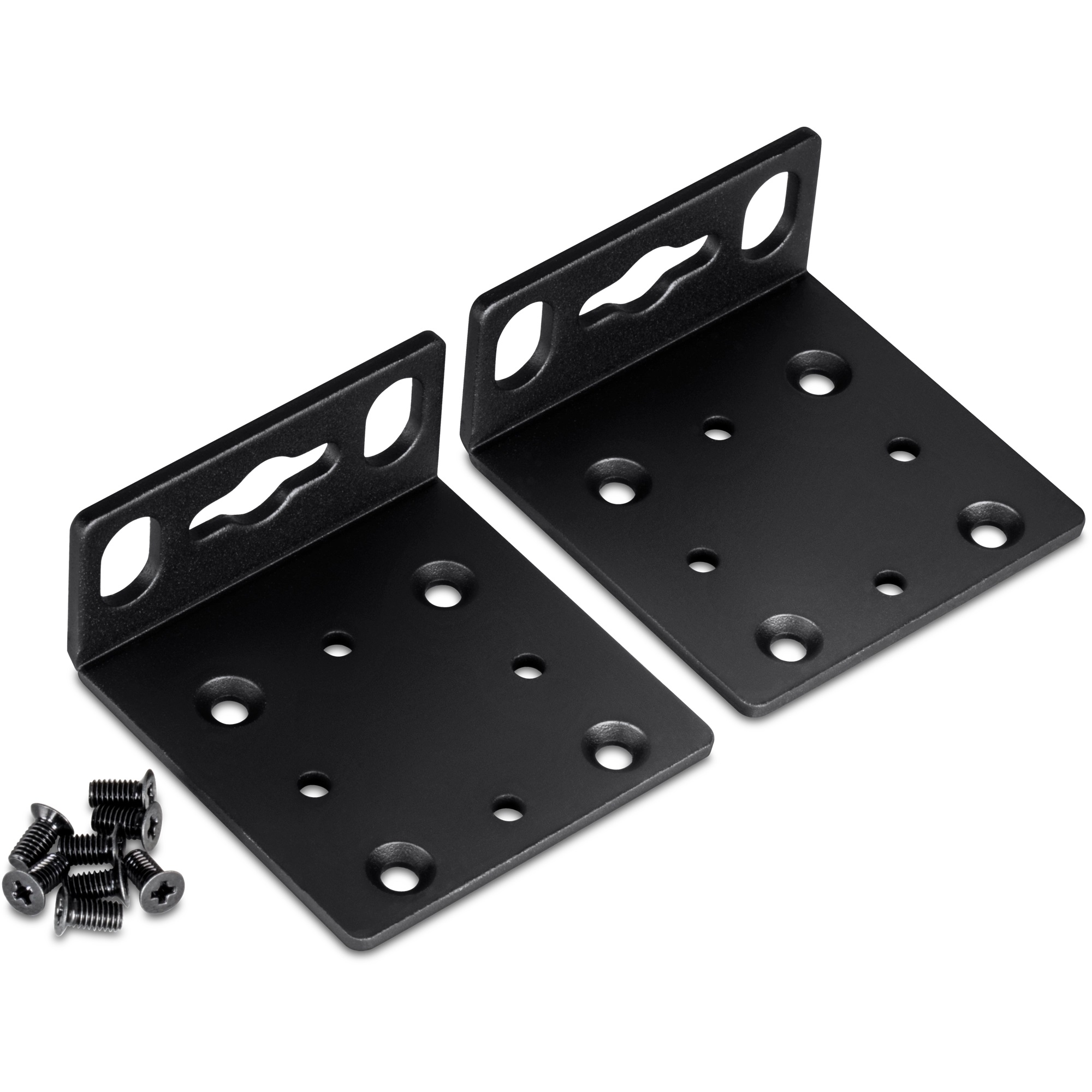

Rack Mount Kit
Power Cord (1.5m / 4.9 ft.)

Name

Description

Size

Downloads

File

Datasheet

1mb
