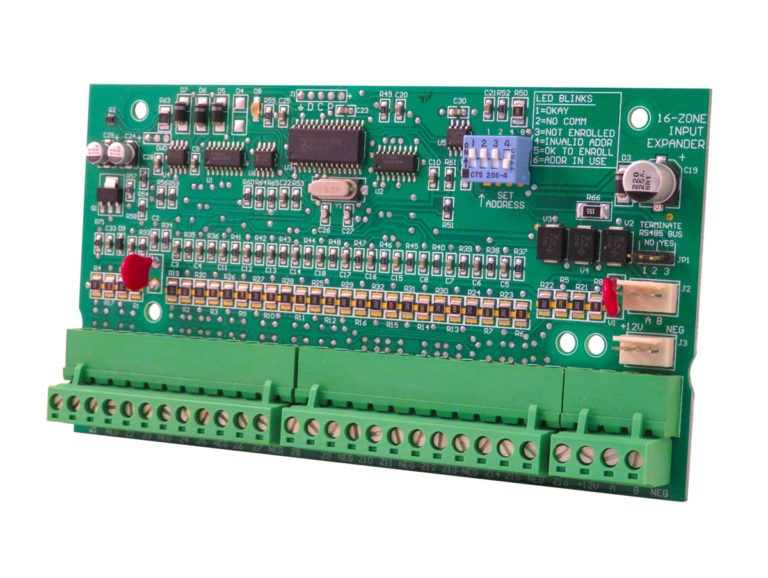

Adds 16 hardwired zones (EOL resistor supervised) to the M1 Gold or M1EZ8 Controls. Operates from 4-wire data bus. Up to 12 of these can be used, increasing total zones (inputs) to 208.
Features:
- 16 EOL Resistor Supervised Hardwire Zones
- Operates on the 4-Wire Data Bus
- DIP Switch Address Settings
- Plug-In Terminal Strips
- Status and Diagnostic LED
- On-Board EOL Bus Termination Jumper
- Vertical Mounting using ELK-SWG Glides(included)
What's Included:
- 16 Zone Input Expander
- ELK-SWG Circuit Board Mounting Glides 2/pack
- 18 2200 Ohm Resistors
- Instructions
| Specifications | |
| Inputs | Plug-In Terminals with Elevator Style Wire Clamps and Screws |
| Operating Power Range | 9 to 14 VDC |
| Current Draw | 65 mA |
| Size | 6" x 3.25" x .75" H |
