Planet - IKVM-210-08M - 17" 8-Port Combo VGA LCD IP KVM Switch: 1280x1024 video quality, Up to 64 computers, On Screen Display (OSD)

Product Overview

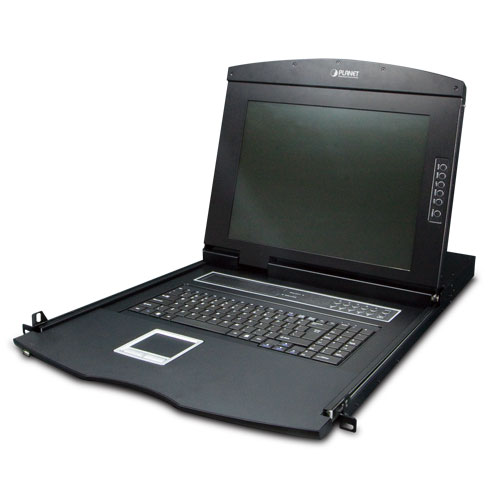

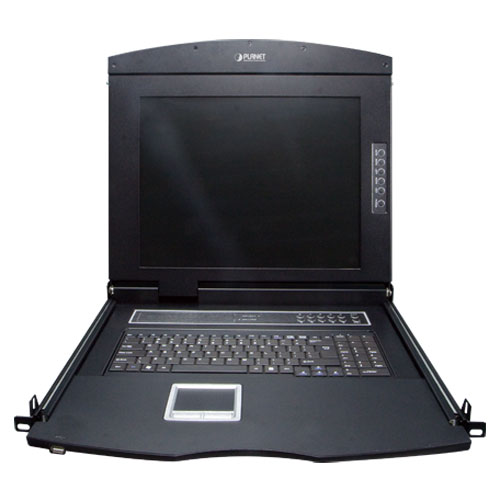

Planet IKVM-210-08M is a 17" IP KVM switch with integrated SXGA TFT-LCD monitor, keyboard, and touchpad in a 1U rackmount chassis. Supports 8 direct computer connections (expandable to 64 via cascading), local video up to 1280x1024, remote video up to 1920x1080 over built-in Gigabit Ethernet, and multiplatform compatibility (Windows, Linux, Mac, Sun).

Key Configuration

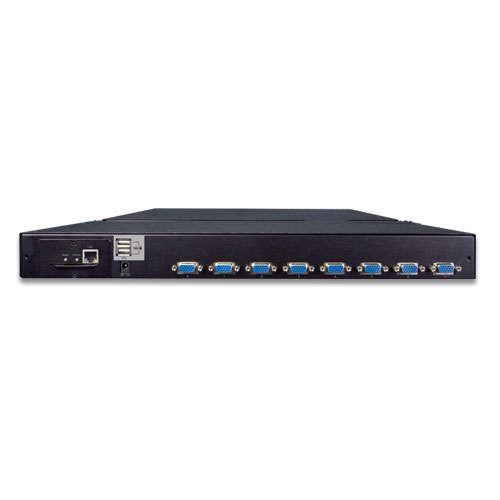

• Ports: 8 × VGA (HDB-15) with PS/2 + USB combo keyboard/mouse support
• Capacity: up to 64 computers via 2-tier cascading (max 8 units)
• LCD: 17" SXGA TFT (1280×1024) with LED backlight and 1000:1 contrast
• Remote access: 1 × Gigabit RJ45 IP interface (TCP/IP, HTTP)
• USB: 3 × USB 2.0 hub ports for shared peripherals
• Dimensions: 445 × 611 × 44.5 mm (1U)
• Weight: 17.52 kg

Key Features

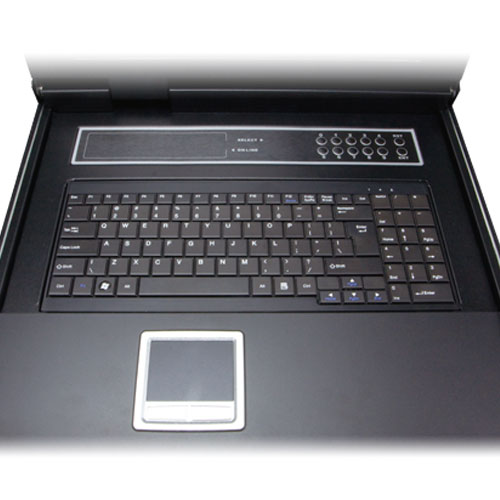

17" LCD KVM console with full keyboard, touchpad, and port selection panel, supporting IP remote access via Gigabit Ethernet with encrypted control (DES/AES/3DES), absolute mouse sync, auto-scan, bandwidth control, hot-plug use, QVS switching, multi-platform/browser support, USB sharing, and CE/FCC certification.

Technical Context

The IKVM-210-08M extends the LCD KVM with IP-based remote access for out-of-band server management. Built-in Gigabit Ethernet allows browser-based console control with accurate mouse synchronization for Windows systems. Supports cascading up to 8 units for centralized management of up to 64 servers from local or remote locations.

Installation Notes

1U rackmount KVM unit (445 × 611 × 44.5 mm, 17.52 kg) with 12V DC power and 0–50°C operation. Provides Gigabit IP access (TCP/IP, HTTP) with cascading up to 8 units for 64 servers. Supports 1080p remote video, encrypted access, and 5–60 sec scan intervals.
