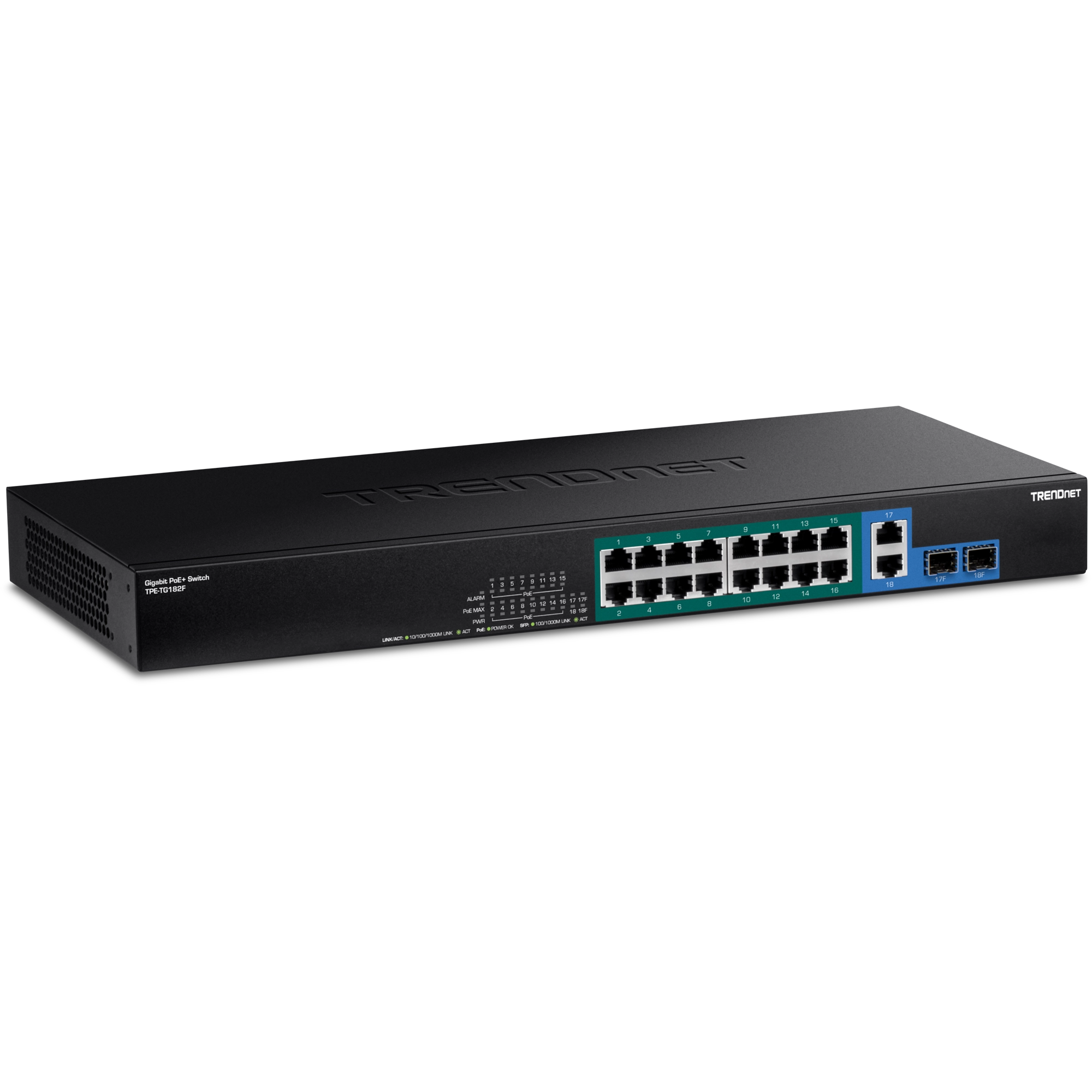

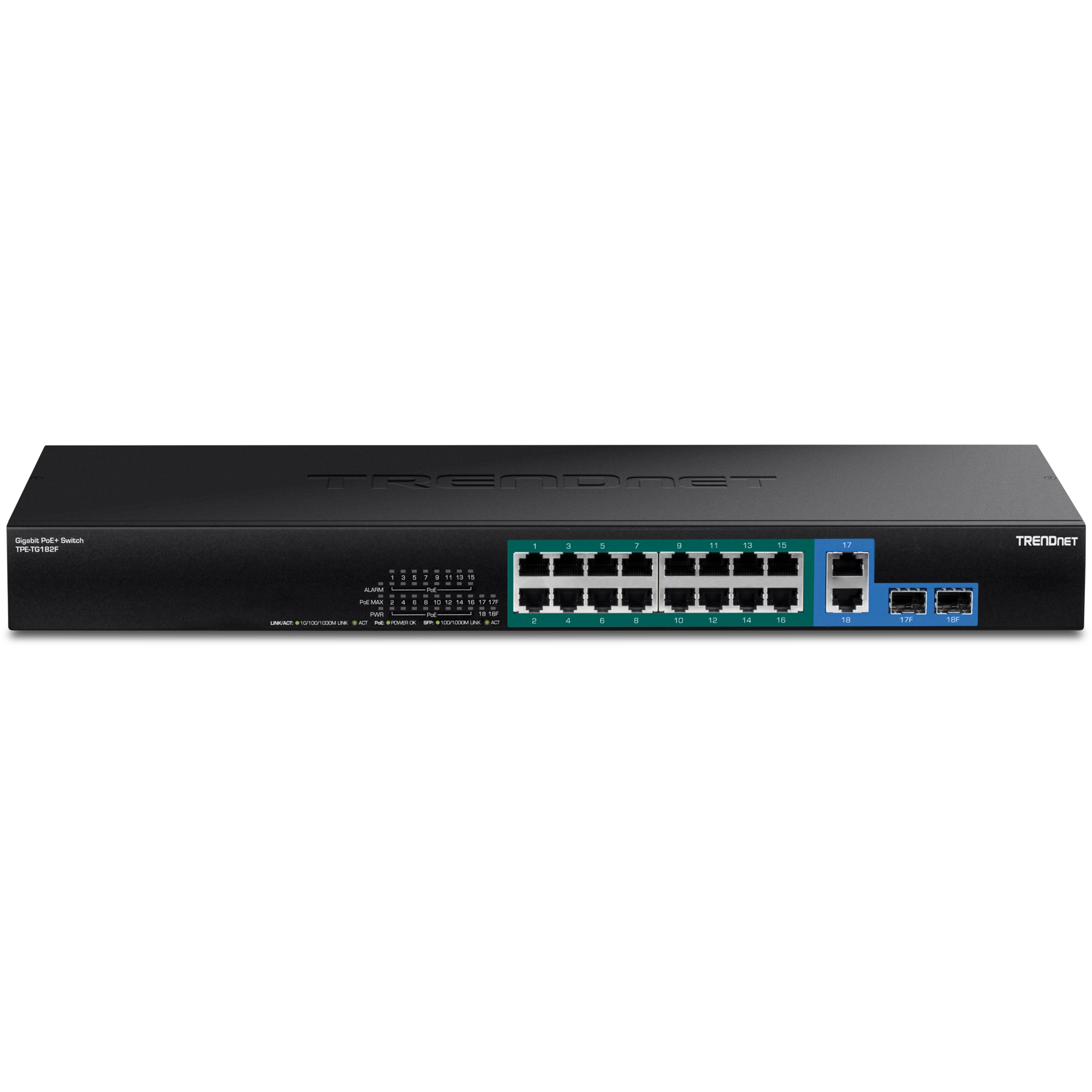

TRENDnet’s 18-Port Gigabit High-Power PoE+ Switch, model TPE-TG182F, reduces equipment and installation costs by delivering data and power over existing Ethernet cables. This rack mountable, high-power PoE switch provides 16 gigabit PoE+ ports with a total PoE power budget of 440W. It also features two additional shared RJ-45 or SFP gigabit ports. The TPE-TG182F high-power PoE+ switch supplies up to 30W of power per port for devices such as high-power wireless access points, PTZ (Pan/Tilt/Zoom) IP cameras, and other PoE+ systems.

High-Power PoE

The 440W total PoE power budget supplies 16 Power over Ethernet devices with up to 30W per port.

.

Gigabit Ports

Eighteen gigabit ports provide a 36Gbps switching capacity to support high-speed network applications.

Housing Design

Features a sturdy 19” rack mountable metal housing with mounting brackets included.

High Power PoE

The 440W total PoE power budget on this high-power PoE switch supplies 16 Power over Ethernet devices with up to 30W per port.

Jumbo Frame

Sends larger packets, or Jumbo Frames (up to 9KB), for increased performance

LED Indicators

LED indicators convey port status

Features:

• 16 x Gigabit PoE+ ports
• 2 x Shared Gigabit ports (RJ-45 or SFP)
• 36Gbps switching capacity
• Internal power supply
• 440W PoE power budget
• Reduces equipment cost by delivering data and power over existing network cables
• Sturdy 19” rack mountable metal housing with included brackets
• NDAA / TAA compliant (U.S. and Canada only)
• Lifetime Warranty*
