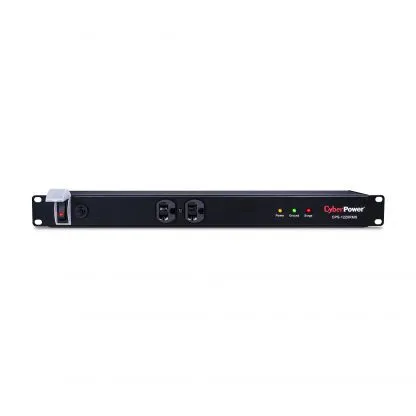

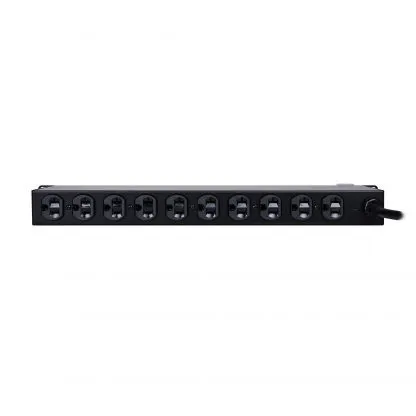

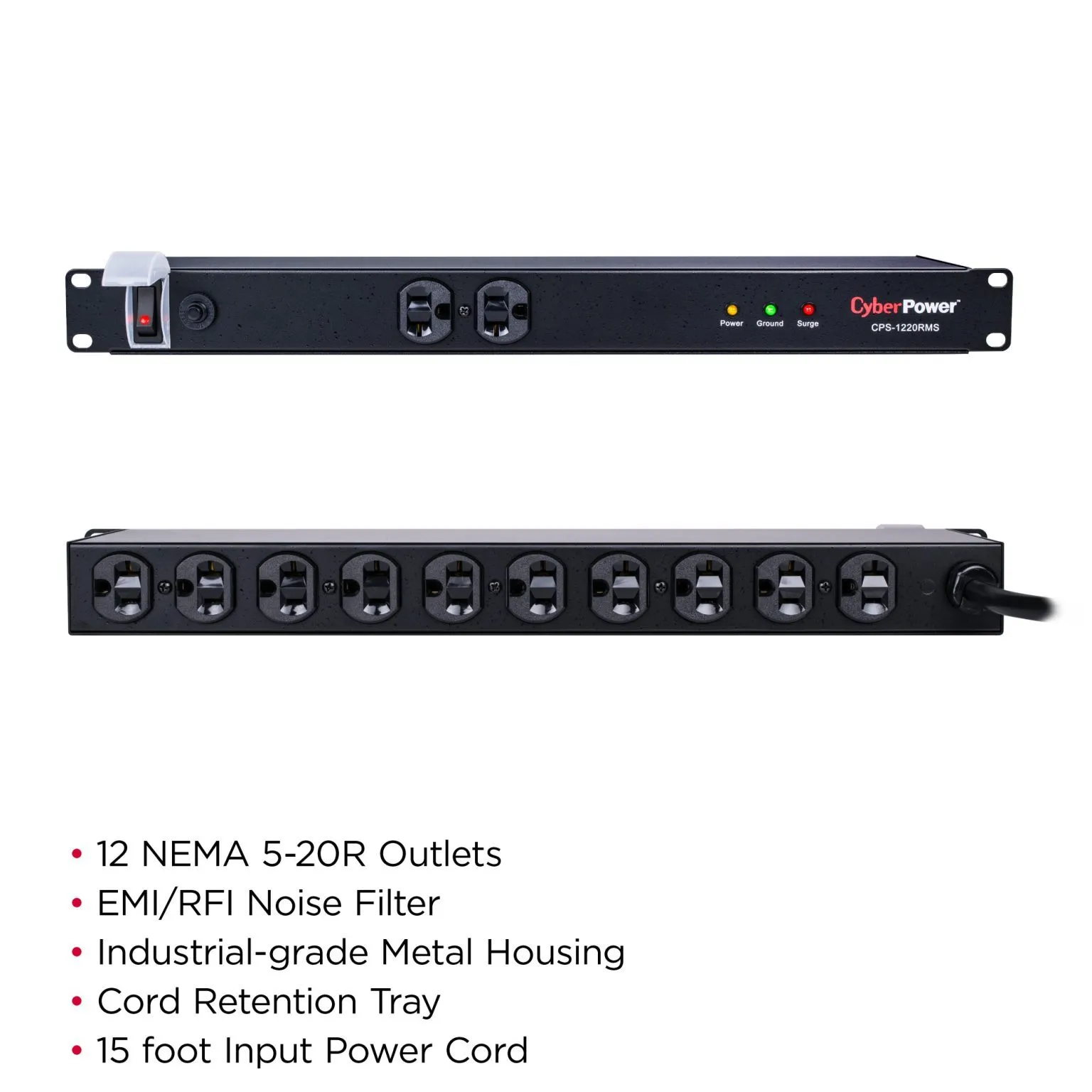

Cyber Power - CPS1220RMS - 1800 J, 120 V, 12 NEMA 5-20R (2 front, 10 rear), 15 ft Cord, 3 Year Warranty
Part number:
CPS1220RMS
Price:

Engineered for the most demanding applications, the professional-grade Rackbar Surge Protector CPS1220RMS from CyberPower safeguards systems and networking equipment by absorbing spikes in energy caused by storms and electrical power surges. Designed for network environments, the CPS1220RMS also performs superbly for home office use, providing 1800 joules of protection, 20-Amp electrical capacity with circuit breaker, and 12 surge-protected outlets (2 front, 10 rear). Industrial-grade metal housing keeps this Rackbar performing flawlessly. The CPS1220RMS has a 1U racksize and can be mounted vertically or horizontally.



Features of the CPS1220RMS include an EMI/RFI noise filter, industrial-grade metal housing, AC power cord (15 ft.). The CPS1220RMS also comes with a three-year limited warranty.



Features:

  • Surge Protection: Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.
  • EMI/RFI Noise Filter: Maintains clean power for connected equipment by filtering out electromagnetic and radio frequency interference to improve picture and sound quality.
  • Versatile Rackmount Options: Enable the Rackbar to be installed vertically or horizontally. 1U rackmount.
  • Power Management Features: Include network-grade plugs and outlets, an AC power cord, efficiency, and performance.
  • Industrial-Grade Metal Housing: Prolongs model life with rugged casing made of impact-resistant material for maximum durability.
  • Three-Year Limited Warranty: Covers defects in materials and workmanship in the product under normal use and conditions within three years of the purchase date. See warranty for details.
Input
Voltage120 V
Plug TypeNEMA 5-20P
Plug StyleStraight
Cord Length15 ft
SwitchLighted On/Off
Output
Outlet TypeNEMA 5-20R
Outlets – Front2
Outlets – Rear10
Outlets – Total12
Surge Protection & Filtering
Surge Suppression1,800 joules
Clamping Voltage330 V
EMI/RFI Filtration150 KHz – 150 MHz
Physical
Rack Size0U
Dimensions – W×H×D (in)17.25 × 1.75 × 4.75 inches
Weight (lbs)6.0 lbs
Environmental
Operating Temperature32 – 95 °F (0 – 35 °C)
Operating Humidity0 – 95% (non-condensing)
Storage Temperature5 – 113 °F (-15 – 45 °C)
Maximum Operating Elevation10,000 ft (3,000 m)
Maximum Storage Elevation50,000 ft (15,000 m)
Certifications
SafetyUL Recognized
EnvironmentalRoHS Compliant
Warranty
Product WarrantyLimited Lifetime
Connected Equipment GuaranteeNone
Name
Description
Size
Downloads
File
Datasheet
0.3mb
File
User Manual
0mb
