TRENDNET - TEG-25GECTX - 2.5GBASE-T PCIe Network Adapter

Part number:

TEG-25GECTX

Price:

Dealers only

Add to Quote/Project Registration

Description Specifications Downloads

TRENDnet's 2.5GBASE-T PCIe Network Adapter, model TEG-25GECTX, converts a free PCI Express slot into a 2.5GBASE-T Ethernet port. The 2.5G network adapter includes advanced features such as jumbo frame and VLAN tagging support. Compatible with Windows desktop computer designs, the 2.5G network adapter includes both standard and low-profile brackets.

Features:

Converts a PCIe slot into a 2.5G Ethernet Port
Supports 802.1Q VLAN Tagging
Includes standard and low-profile brackets
Windows support
IEEE 802.3ab and 802.3bz compliant
Supports up to 9KB jumbo frames
NDAA / TAA compliant (U.S. and Canada only)

Standards	IEEE 802.3u IEEE 802.3ab IEEE 802.3bz 2.5GBASE-T IEEE 802.1Q
Hardware Interface	PCIe 2.0 x1 interface 1 x RJ-45 Ethernet port (Supported Speeds: 2.5Gbps / 1Gbps / 100Mbps) LED indicators
Minimum Cable Requirements	2.5GBASE-T (2.5Gbps): Cat5e twisted pair @ 100m (328 ft.) (max.) 1000BASE-T (1Gbps): Cat5e twisted pair @ 100m (328 ft.) (max.) 100BASE-TX (100Mbps): Cat5 twisted pair @ 100m (328 ft.) (max.)
Compatibility	Windows^® 10, 8.1, 7 Windows^® Server 2016, 2012
Jumbo Frames	Up to 9KB
Special Features	2.5GBASE-T 2.5Gbps support for high speed network connectivity Windows Server support
Additional Support	Virtual NIC support (VMQ 32 group) 802.1Q VLAN Tagging LTR (Latency Tolerance Reporting) Microsoft WPI (Wake Packet Indication) Large Send (up to 64KB) IP, TCP, and UDP checksum offloading Advanced cable diagnostics
Power	Max. consumption: 1.8W
Operating Temperature	0° – 40 °C (32° – 104 °F)
Operating Humidity	Max. 90% non-condensing
Certifications	CE FCC
Dimensions	84 x 64 x 18mm (3.3 x 2.5 x 0.7 in.)
Weight	42g (1.5 oz.)
Warranty	3 year

PACKAGE CONTENTS

TEG-25GECTX
Quick Installation Guide

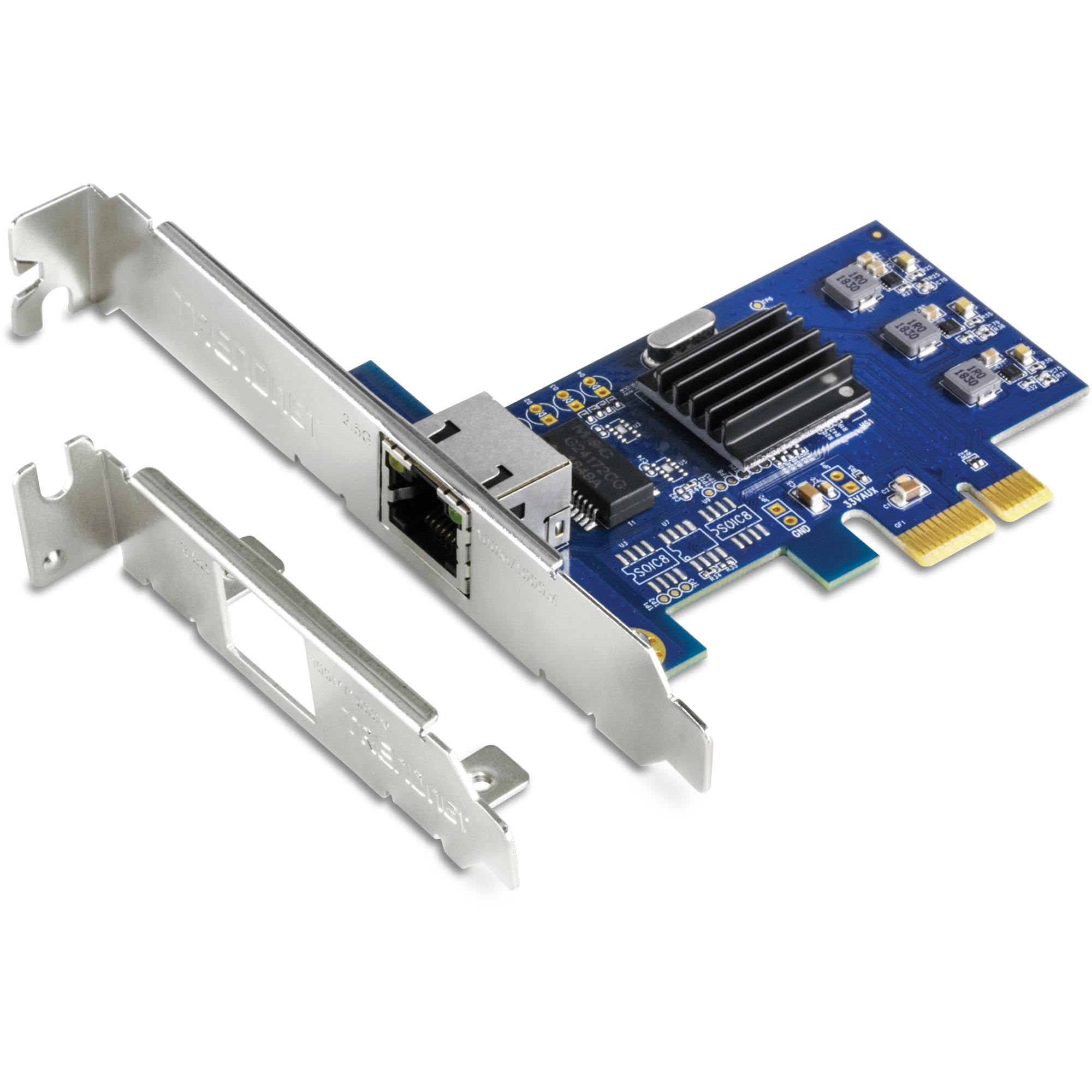

Standard & low-profile brackets
