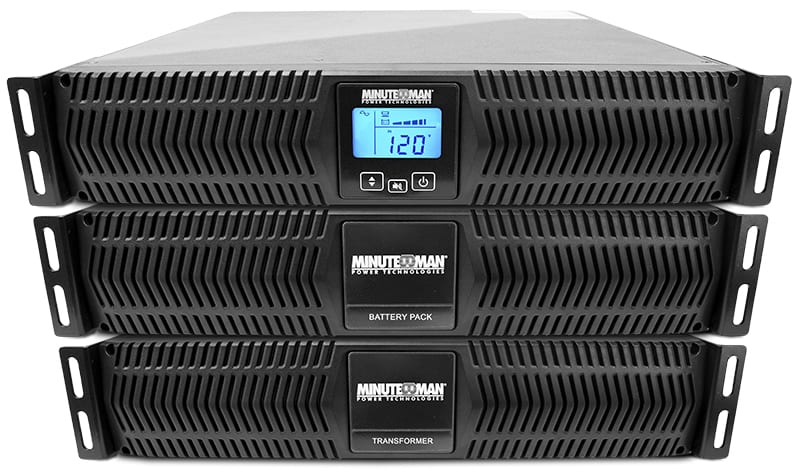

Endeavor®Series: Double conversion, true sine wave, online UPS w/ Battery Pack, rackmount/tower, LCD display, 6000VA/5400W, 208-240V input and 208-240V output, parallelable to 12kVA, extended runtime capable, 3 min full load and 11 min half load runtime, 0.9 power factor, automatic internal bypass, Independent Battery Bypass, simultaneous communication options, SentryHD®software included, 3-year standard product warrantyMission critical applications demand the best power quality – Endeavor 5-10kVA systems deliver it in versatile, easily configurable packages that can be tailored to your specific needs.

Endeavor 5-10kVA Series Upgraded Features:

• User-friendly LCD Display:
  Minuteman’s familiar LCD interface provides real-time status and control of the unit
• Easy order model numbers:
  No more individual modules for ordering
• Expands the Endeavor product family:
  Models up to 10kVA in a rack/tower format allows paralleled systems up to 20kVA in capacity
• Output receptacle configurations on some models:
  All dual-voltage output models will have standard receptacle configurations
• All 5/6kVA models include an L6-30P/pigtail power cord
•

Electrical Characteristics :

Digital Signal Processor

• Reduced number of components in the UPS also reduces the potential for defects or malfunctions
• Digital Signal Processor, (DSP), combines many components into a single processor, increasing the reliability of the UPS and reducing any downtime potential
• Helps ensure stable, quality power and long life span

High Output Power Factor

• All models feature an output power factor of 0.9 which increases the Watt capacity of the units
• Larger capacities in a smaller UPS VA rating can reduce the overall cost of the UPS solution for a specific load requirement

Output T.H.D.

• Endeavor units maintain an output AC signal within 2% of a true sine wave pattern (Total Harmonic Distortion)
• Prevents equipment damage from internal heat build up on sensitive connected equipment

Overload Capacity

• Sudden spikes can occur when supporting IT infrastructure, industrial equipment, security installations or any electrically-driven load
• Endeavor UPSs are designed to support such situations with the ability to absorb up to 150% of its rated load for up to 30 seconds
• Allows the UPS to be sized for maximum capacity without worry of overload and shutdown, providing cost-savings

Independent Battery Bypass

• An independent battery circuit allows the Endeavor UPS to operate in Normal Mode, even with weak, dead, or defective batteries
• Endeavor UPSs monitor internal battery status at regular intervals; If the UPS detects weak or bad batteries, it will engage an audio alarm and also any preconfigured electronic notifications
• Normal AC output will be maintained as long as utility power is supplied within the UPS’ nominal input range
• The UPS will have a constant 120/208/240V signal and protection from any dangerous spikes or surges while allowing time to replace batteries without having to shut down connected equipment

Optional 240V Output

• Endeavor units can be configured from the factory for use with 240V input and output applications for an additional charge
• Include ED-240VAC with Endeavor 5-10 order for 240V configuration
• For more information about this option, please contact your Minuteman representative

Other Features:

Minuteman Reliability for Large Applications

• RoHS 2 Compliant:
  as defined by the EU for the reduction of hazardous substances in electrical equipment: 2011/65/EU
• 3-yr Standard Warranty
  covering all parts and labor, as well as non-pro-rated coverage of batteries
• 5-year Extended Warranty Plans available
• Platinum Protection Plan
  Insures properly connected equipment up to $200,000 (Continental U.S. and Canada only)

Key features include:

• True double-conversion online technology:
  Maximum protection for critical equipment
• Digital Signal Processor Design
  Higher reliability through reduced number of components used in the UPS
• Higher power factors (0.9pf)
  Increases the real power capacity of each individual model
• 120VAC/208VAC models with standard receptacles
  Provides flexibility for support of multiple voltages used on connected loads
• Real-time LCD status display
  See power and unit status, estimated runtime, and more in real time
• Parallelable to 20kVA
  Scalable capacity to grow with the customer’s loads
• 240V input/output configuration optional
  Units can be configured for 240V power for an additional charge
• Automatic Internal Bypass
  The UPS will sound an alarm and go to bypass mode when an internal fault, (either hardware or battery), is detected
• Independent Battery Bypass
  The unit can operate as a voltage regulator, even with dead or defective batteries
• Smart Fan Control
  Variable speed fan control maximizes the cooling of the UPS while maintaining optimum efficiency
• Cold Start Function
  Start UPS even without utility power
• Simultaneous Communication Options
  Greater flexibility in the management and monitoring of the UPS system
