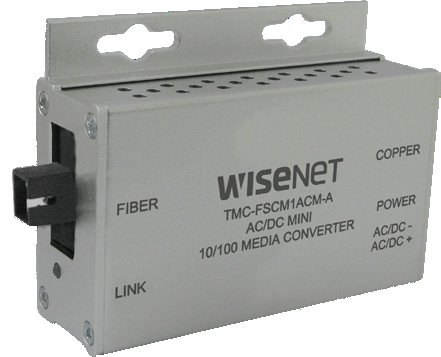

Hanwha - TMC-FSCM1ACM-A - Mini 100M Media Converter (A)
Part number:
TMC-FSCM1ACM-A
Price:
The TMC-FSCM1ACM-A Ethernet media converter is a one-channel Ethernet electrical to optical media converters. These auto-negotiating devices accept a 10/100 Mbps electrical input and convert this to a 100 Mbps optical output. LED indicators confirm operational status. Environmentally hardened with no electrical or optical adjustments (Plug and Play). Powered by an included DC power supply. Small 100Mbps Media Converter (A), SC Connector, AC/DC Power, Multi-Mode, 1 fiber. (Requires “A” and “B” units), TMC-FSCM1-B required to work as a pair.
Features:
- 10/100 BASE-T/TX electrical port
- 100 BASE-FX optical port
- Electrical port supports Auto-Negotiation for 10 Mbps or
- 100 Mbps, full duplex or half duplex data.
- Optical port supports 100 Mbps full duplex data
- Automatic MDI/MDI-X crossover
- IEEE 802.3 compliant
- Distances up to 3 km (2 mi)
- No in-field optical adjustments required
- LED Indicators
Ethernet
| Data Rate | DIP-switch selectable 10/100Mbps Full data rate / full duplex up to the maximum rated distance |
| RFC | 2544 TCP/IP Packet Transmission |
| Data Interface | 10/100BaseT(X) Ethernet |
Mechanical
| LED Indicators | Operating Power Ethernet Link/Activity Extended Link/Activity |
| Circuit Board | Meets IPC Standard |
| Size (L×W×H) | 1 CH: 3.3 × 2.5 × 1.1 in (8.4 × 6.4 × 2.8 cm) 4 CH: 6.1 × 5.3 × 1.1 in (15.5 × 13.5 × 2.8 cm) 16 CH: 6.1 × 19 × 1.75 in (15.5 × 48.26 × 4.45 cm) |
| Shipping Weight: | 1 CH: <1 lbs./0.5 kg 4 CH: <2 lbs./0.9 kg 16 CH: <5 lbs./2.3 kg |
Connectors
| Ethernet | RJ-45 |
| Operating Power | Powered by PoE or 2-pin screw terminal for local powe |
Environmental
| MTBF | >100,000 hours |
| Operating Temp | -40˚ C to +75˚ C |
| Storage Temp | -40˚ C to +85˚ C |
| Relative Humidity | 0% to 95% (non-condensing) |
