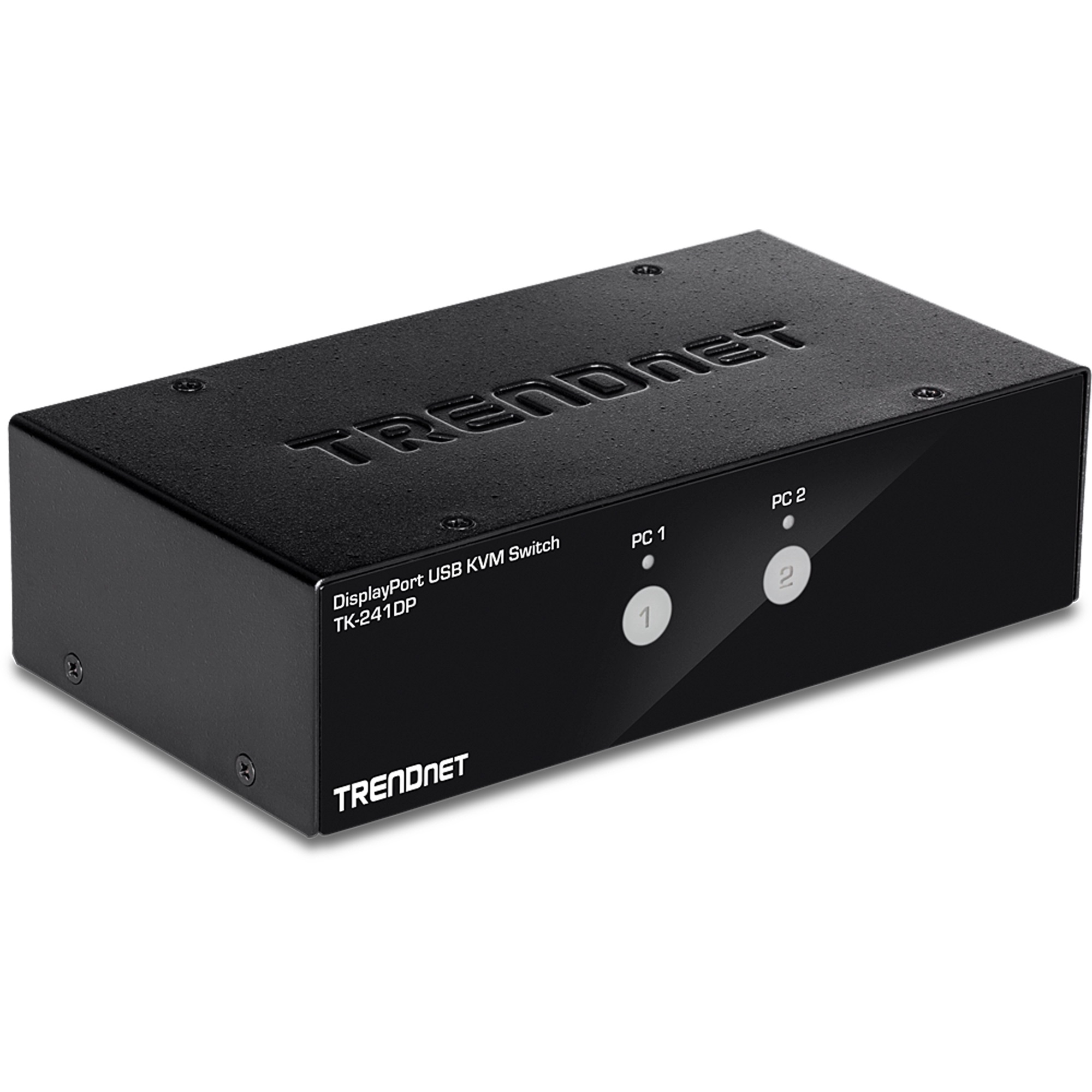

Trendnet - TK-241DP - 2-Port DisplayPort KVM Switch
Part number:
TK-241DP
Price:

TRENDnet’s 2-Port DisplayPort KVM Switch, model TK-241DP, allows you to control two computers with one set of console controls. Experience up to 4K UHD resolution with this DisplayPort KVM switch, no driver installation required. The TK-241DP DisplayPort KVM switch is designed for systems with DisplayPort, USB mouse and keyboard connections, and features a two-port USB hub to share storage devices or other USB peripherals between computers.



Features:

  • DisplayPort 1.2 KVM
  • 3.5mm speaker and microphone connections
  • Designed for use with DisplayPort systems
  • Resolutions & refresh rates
    • Up to 1920 x 1080 @ 144Hz
    • Up to 1920 x 1200 @ 144Hz
    • Up to 1920 x 1440 @ 144Hz
    • Up to 2560 x 1440 @ 144Hz
    • Up to 3440 x 1440 @ 60Hz
    • Up to 3840 x 2160 @ 60Hz
    • NDAA / TAA compliant (U.S. and Canada only)
  • 2-Port USB 2.0 hub for storage devices and other USB peripherals
  • Required cabling sold separately (2x TK-CP06)
  • No CD installation required
  • NDAA / TAA compliant (U.S. and Canada only)

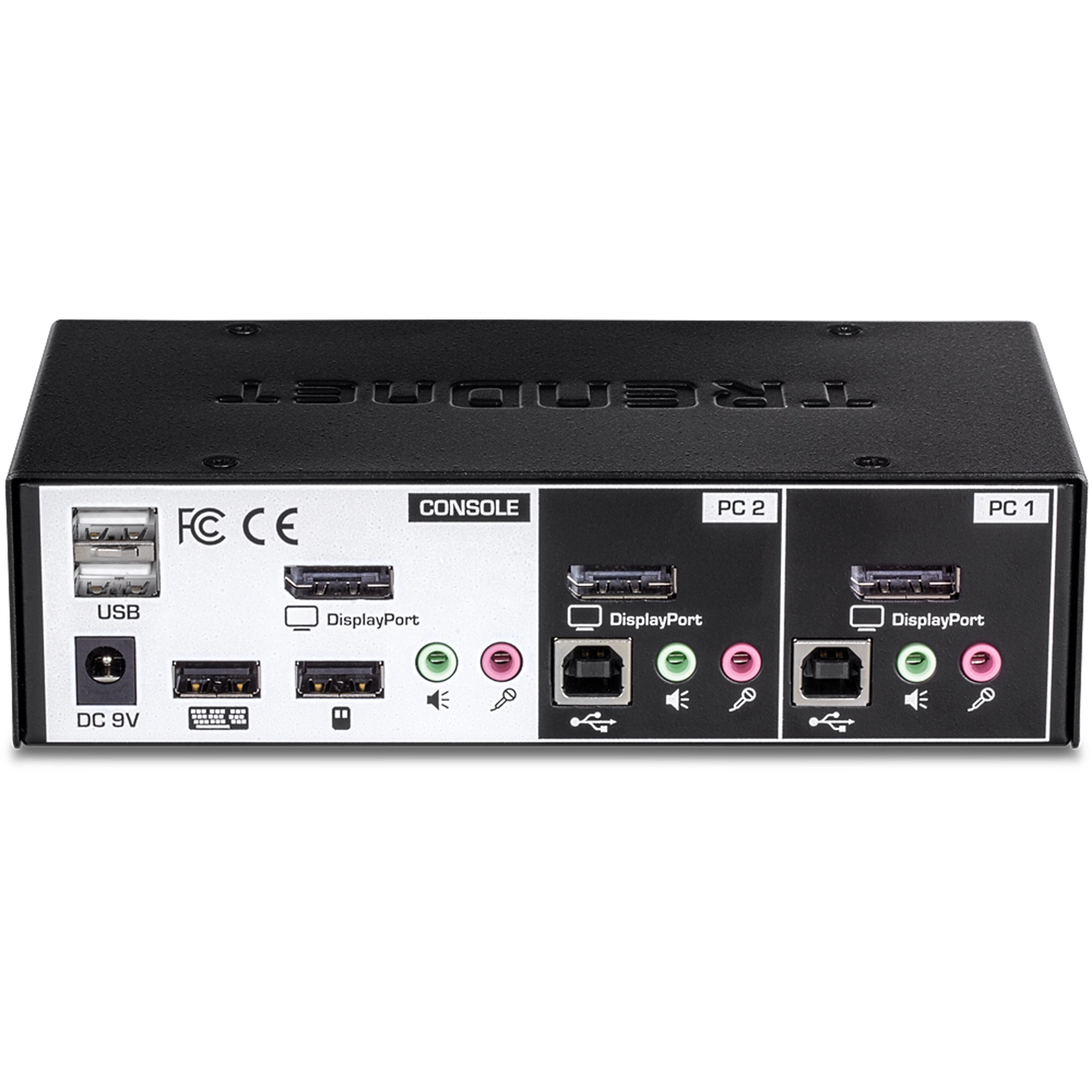

Console Port Connectors
  • Keyboard: USB Type A
  • Mouse: USB Type A
  • Monitors: 1 x DisplayPort 1.2
  • 2-port USB 2.0 Hub
  • Speaker jack: 3.5mm
  • Microphone jack: 3.5mm
KVM Port Interface (up to 2)
  • Keyboard/Mouse: USB Type B
  • Monitors: 1 x DisplayPort 1.2
  • Speaker jack: 3.5mm
  • Microphone jack: 3.5mm
Computer Interface (up to 2)
  • Keyboard/Mouse: USB Type A
  • Monitors: 1 x DisplayPort 1.2
  • Speaker jack: 3.5mm
  • Microphone jack: 3.5mm
Monitor Resolution
  • Up to 1920 x 1080 @ 144Hz
  • Up to 1920 x 1200 @ 144Hz
  • Up to 1920 x 1440 @ 144Hz
  • Up to 2560 x 1440 @ 144Hz
  • Up to 3440 x 1440 @ 60Hz
  • Up to 3840 x 2160 @ 60Hz

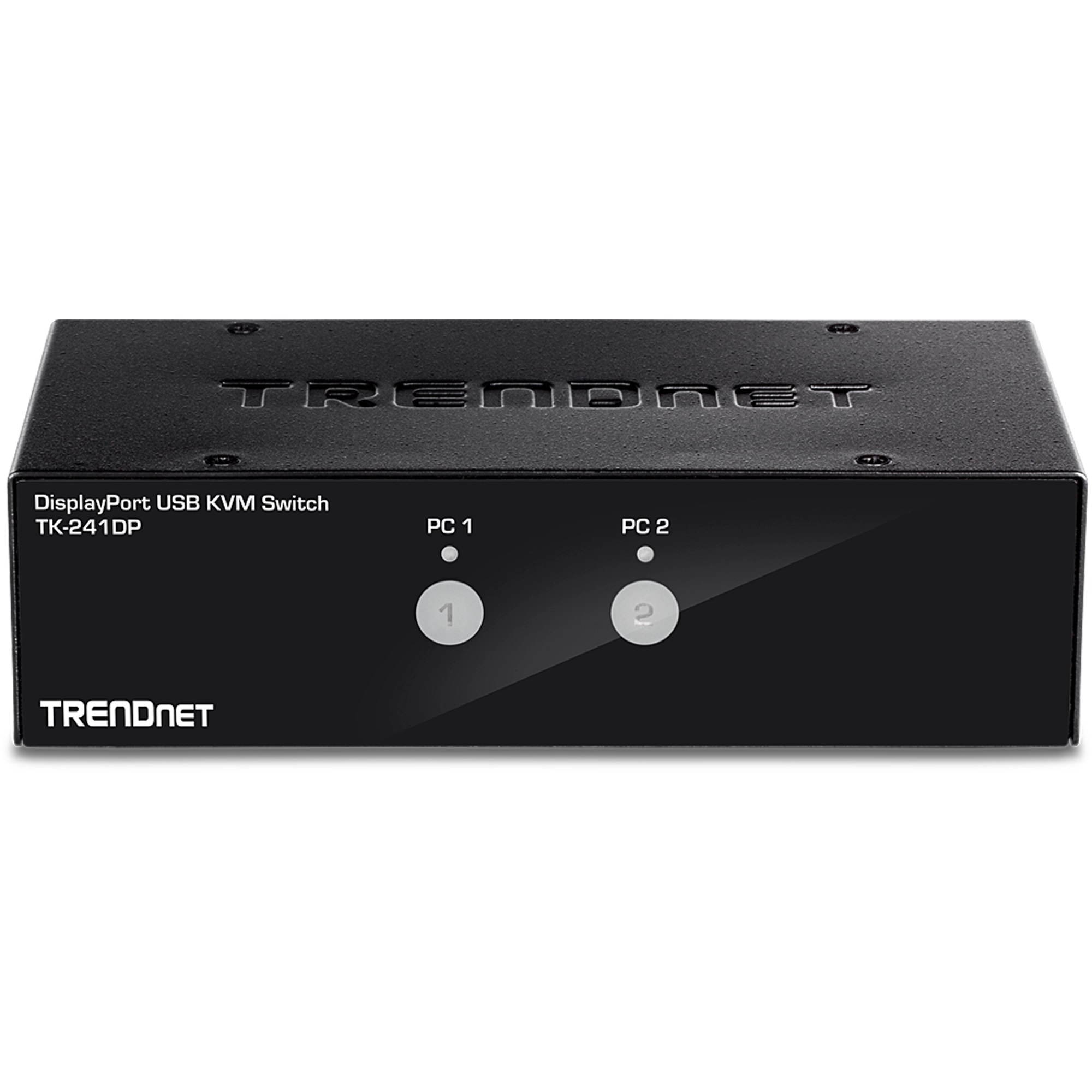

Switching Control
  • Front panel push buttons
  • Keyboard hot key commands
Operating Temperature
  • 0° – 40° C (32° – 104° F)
Operating Humidity
  • Max. 90% non-condensing
Power
  • Input: 100 – 240V AC, 50/60Hz, 0.8A
  • Output: 9V DC, 2A external power adapter
  • Max. consumption: 0.7W
Dimensions
  • 164 x 87 x 45mm (6.4 x 3.4 x 1.77 in.)
Weight
  • 920g (2.02 lbs.)
Warranty
  • 2 year
Certifications
  • CE
  • FCC

PACKAGE CONTENTS

  • TK-241DP
  • Quick Installation Guide
  • Power adapter (9V DC, 1A)
Name
Description
Size
Downloads
File
Datasheet
1mb
