Trendnet - TK-232DV - 2-Port Dual Monitor DVI KVM Switch
Part number:
TK-232DV
Price:

TRENDnet's 2-Port Dual Monitor DVI KVM Switch, model TK-232DV, allows you to control two computers with one set of console controls. Experience HD resolutions with no driver installation required. The TK-232DV is designed for dual monitor systems with USB mouse and keyboard connections. This dual monitor KVM switch also features a two-port USB hub to share storage devices or printers between computers.



Features:

  • Dual Monitor DVI-I KVM switch
  • Designed for use with Dual DVI-I systems
  • 3.5mm speaker and microphone connections
  • Supports digital resolutions up to 1920 x 1200
  • Supports analog resolutions up to 2048 x 1536
  • 2-Port USB 2.0 hub for storage devices and printers
  • Required cabling sold separately (TK-CD06, TK-CD10, TK-CD15)
  • No CD installation required
  • Microphone jack: 3.5mm
  • NDAA / TAA compliant (U.S. and Canada only)

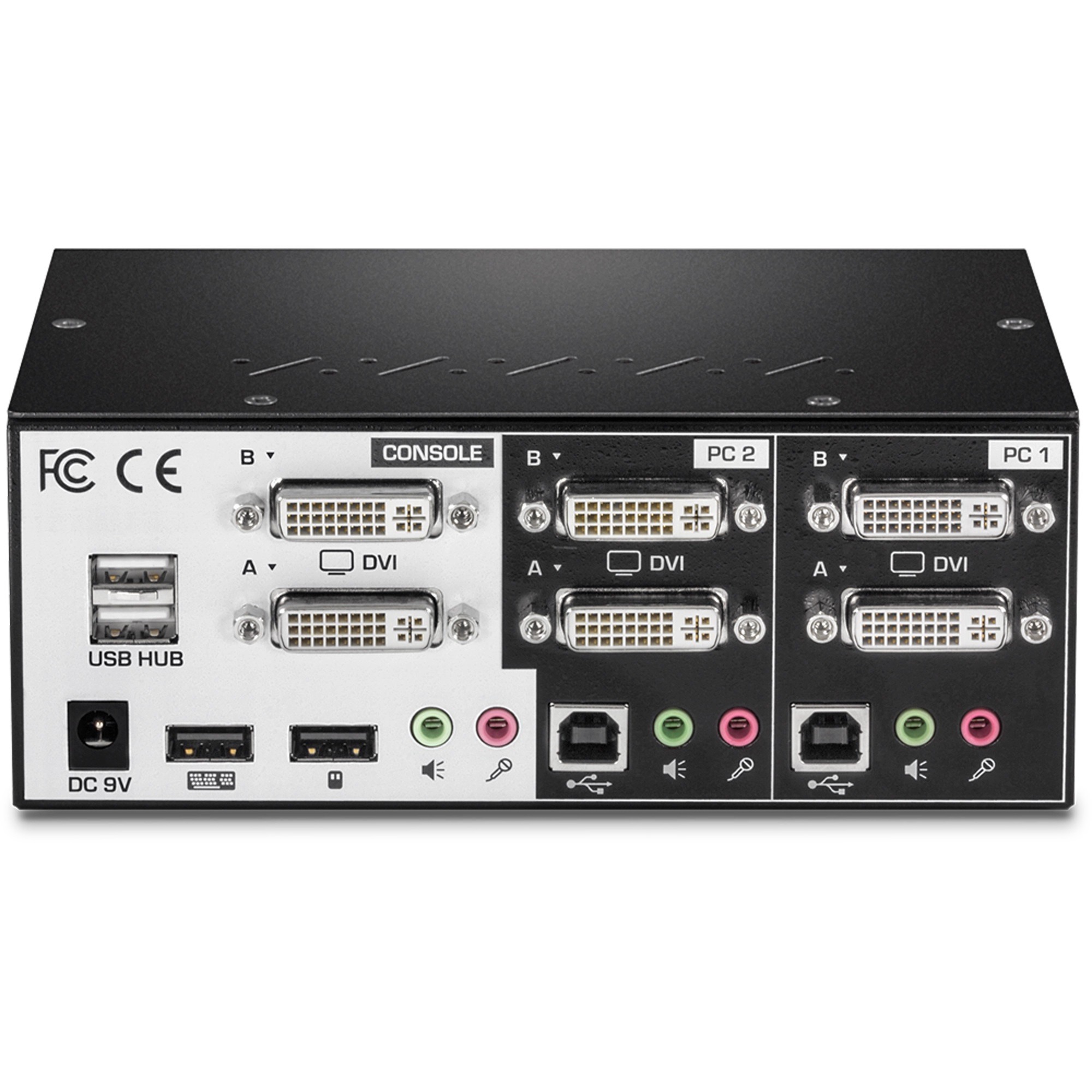

Console Port Connectors
  • Keyboard: USB Type A
  • Mouse: USB Type A
  • Monitors: 2 x DVI-I
  • 2-port USB 2.0 Hub
  • Speaker jack: 3.5 mm
  • Microphone jack: 3.5 mm
KVM Port Interface (up to 2)
  • Keyboard/Mouse: USB Type B
  • Monitors: 2 x DVI-I
  • Speaker jack: 3.5 mm
  • Microphone jack: 3.5 mm
Computer Interface (up to 2)
  • Keyboard/Mouse: USB Type A
  • Monitors: 2 x DVI-I
  • Speaker jack: 3.5mm
  • Microphone jack: 3.5mm
Monitor Resolution
  • Digital: up to 1920 x 1200
  • Analog: up to 2048 x 1536

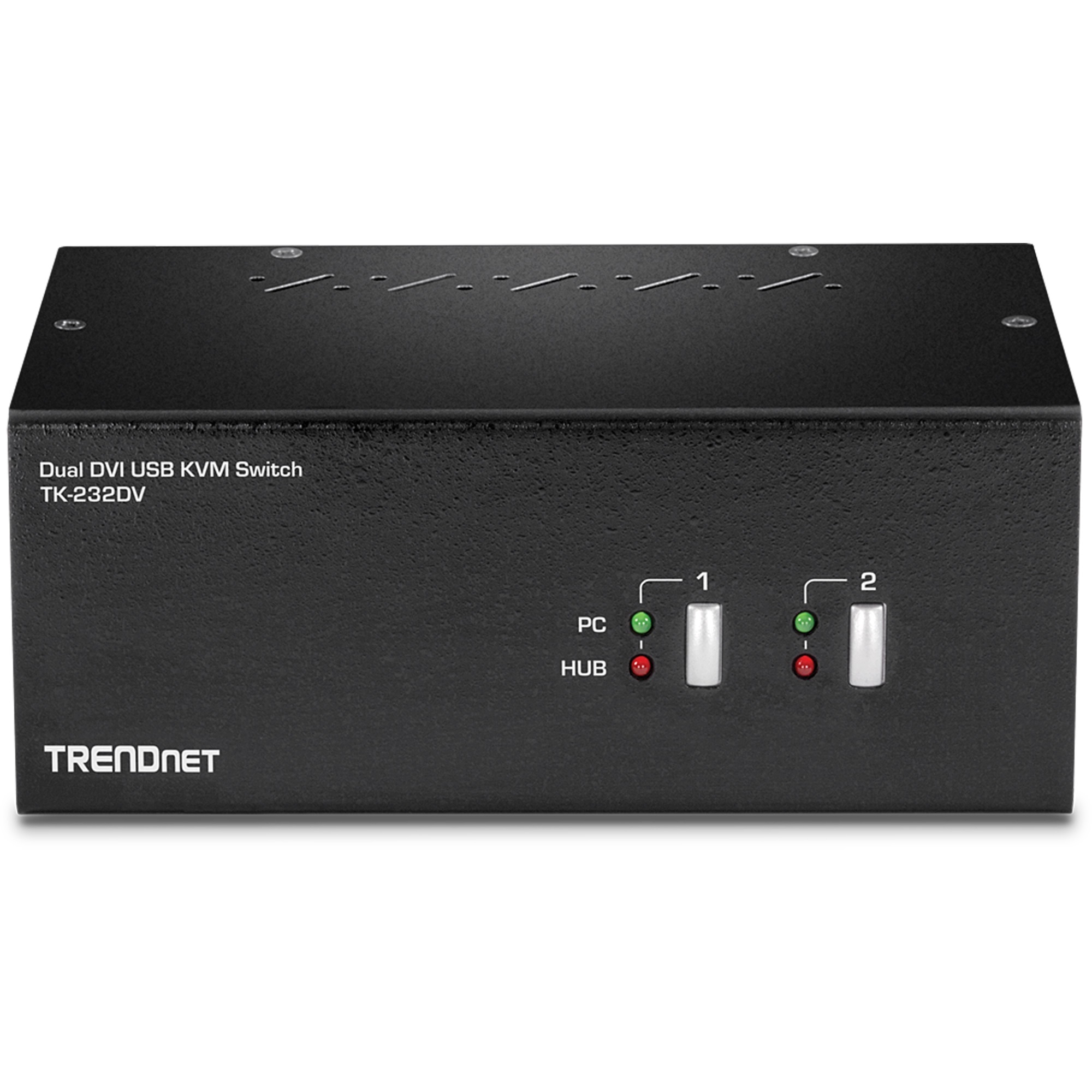

Switching Control
  • Front panel push buttons
  • Keyboard hot key commands
Operating Temperature
  • 0° – 40° C (32° – 104° F)
Operating Humidity
  • Max. 90 % non-condensing
Power
  • Input: 100 - 240V AC, 50/60Hz, 0.8A
  • Output: 9V DC, 2A external power adapter
  • Max. consumption: 0.7W
Dimensions
  • 163 x 100 x 66 mm (6.4 x 3.9 x 2.6 in.)
Weight
  • 760g (1.675 lbs.)
Certifications
  • CE
  • FCC
Warranty
  • 2 year

PACKAGE CONTENTS

  • TK-232DV
  • Quick Installation Guide
  • Power adapter (9V DC, 2A)
