Trendnet - TK-222DVK - 2-port DVI KVM Switch Kit
Trendnet - TK-222DVK - 2-port DVI KVM Switch Kit
Trendnet - TK-222DVK - 2-port DVI KVM Switch Kit
Trendnet - TK-222DVK - 2-port DVI KVM Switch Kit
Trendnet - TK-222DVK - 2-port DVI KVM Switch Kit
Trendnet - TK-222DVK - 2-port DVI KVM Switch Kit Trendnet - TK-222DVK - 2-port DVI KVM Switch Kit Trendnet - TK-222DVK - 2-port DVI KVM Switch Kit Trendnet - TK-222DVK - 2-port DVI KVM Switch Kit

Trendnet - TK-222DVK - 2-port DVI KVM Switch Kit

Part number:
TK-222DVK
Price:
Dealers only
Add to Quote/Project Registration
Description Specifications Downloads

The 2-Port DVI KVM Switch Kit, model TK-222DVK, allows you to control two computers with one set of console controls. No driver installation required, simply plug in the included cables to experience beyond HD resolution of 2560 x 1600 pixels. The TK-222DVK supports advanced keyboard and mouse designs and offers two bonus USB share ports to connect storage devices or printers.



Features:

  • Control two computers with one set of console controls
  • Designed for use with a DVI-D monitor
  • Supports HD resolution above 1080p
  • 2 bonus USB share ports for storage devices or printers
  • All required cabling included
  • No CD installation
  • NDAA compliant

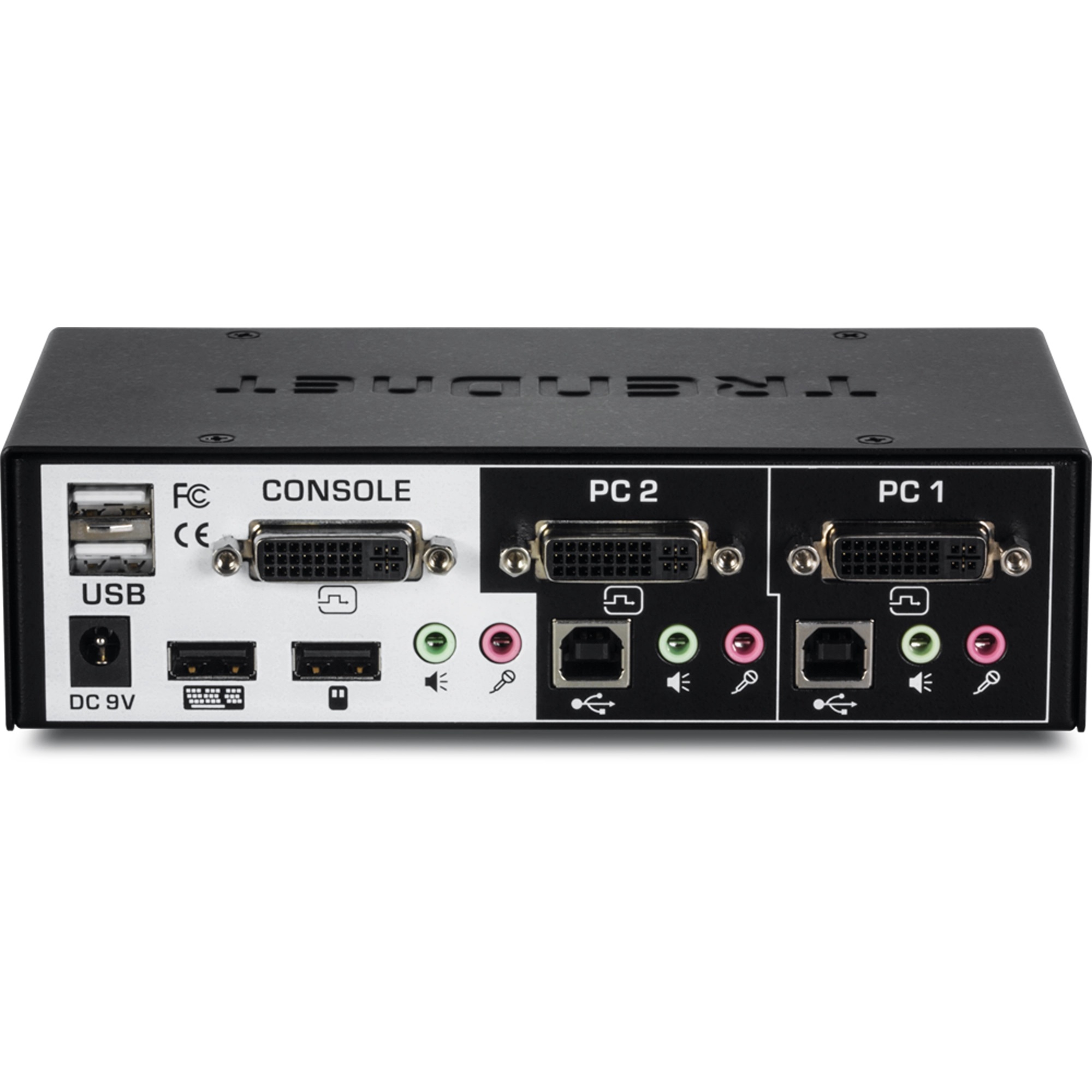

Console Port on KVM
  • Keyboard: USB
  • Mouse: USB
  • Monitor: DVI-I
  • 2-port USB 2.0 hub
  • Speaker jack: 3.5 mm
  • Microphone jack: 3.5 mm
Computer Port on KVM (up to 2)
  • Keyboard/mouse: USB 2.0 type B
  • Monitor: DVI-I
  • Speaker jack: 3.5 mm
  • Microphone jack: 3.5 mm
Computer Connections (up to 2)
  • Keyboard/mouse: USB 2.0 type A
  • Monitor: Single Link/ Dual Link DVI-I/DVI-D
  • Speaker jack: 3.5 mm
  • Microphone jack: 3.5 mm
Monitor Resolution
  • Digital: 2560 x 1600 @ 60 Hz
  • Analog: 2048 x 1536 @ 60 Hz
Switching Control
  • Face panel touch buttons
  • Keyboard hot key commands
Switching Notification
  • Audio
Scanning Interval
  • 10 - 60 seconds (Hot key controls)
Special Features
  • Supports Dual Link DVI-D monitor
  • Advance mouse and keyboard support
  • All time DDC emulation
  • Two bonus USB ports
  • Metal housing
Operating Temperature
  • 0 – 40 °C (32 – 104 °F)
Operating Humidity
  • Max 90 % non-condensing
Power
  • Input: 100 - 240 V AC, 50/60 Hz, 0.4 A
  • Output: 9 V DC, 1 A external power adapter
  • Consumption: 0.7 Watts
Dimensions
  • 164 x 90 x 45 mm (6.5 x 3.5 x 1.8 in.)
Weight
  • 586 g (1.29 lbs.)
Warranty
  • 2 year limited
Certifications
  • CE
  • FCC

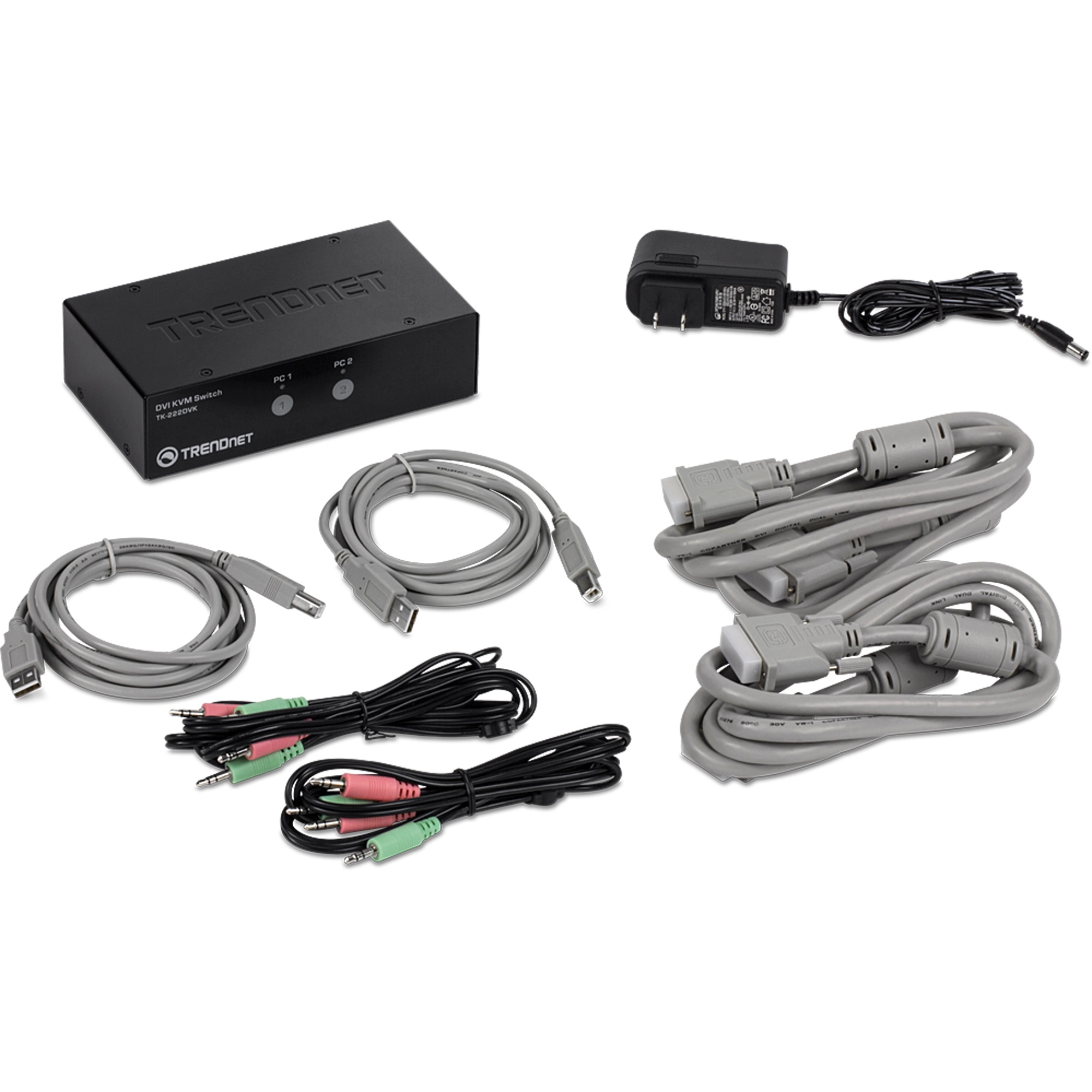

PACKAGE CONTENTS

  • TK-222DVK
  • Quick Installation Guide
  • Power adapter (9 V DC, 1 A)
  • 2 sets of DVI-D KVM cables (1.8 m/6 ft.)
  • 2 sets of USB 2.0 type A to B cables (1.8 m/6 ft.)
  • 2 sets of audio cables (1.8 m/6 ft.)
Name
Description
Size
Downloads
File
Datasheet
0.8mb
File
Quick Installation Guide
1.1mb
