TRENDNET - TEG-102S - 2-Port Gigabit Splitter with USB Type C Power
TRENDNET - TEG-102S - 2-Port Gigabit Splitter with USB Type C Power
Part number:
TEG-102S
Price:
Dealers only
Add to Quote/Project Registration
Description Specifications Downloads

TRENDnet's 2-Port Gigabit Splitter with USB Type C Power, model TEG-102S, provides a highly efficient network expansion solution. Quickly expand a single network connection into two, allowing two devices to transmit data simultaneously at up to 1,000Mbps. The gigabit Ethernet splitter includes a USB Type C power cable, simplifying installation and reducing connections for network setup. Easily power this gigabit Ethernet splitter with an available USB Type A port.



Features:

  • Splits one network connection into two
  • USB Type C power cable included
  • Compact design
  • NDAA / TAA compliant (U.S. and Canada only)
Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3x
Device Interface
  • 1 x Gigabit data-in port
  • 2 x Gigabit data-out ports

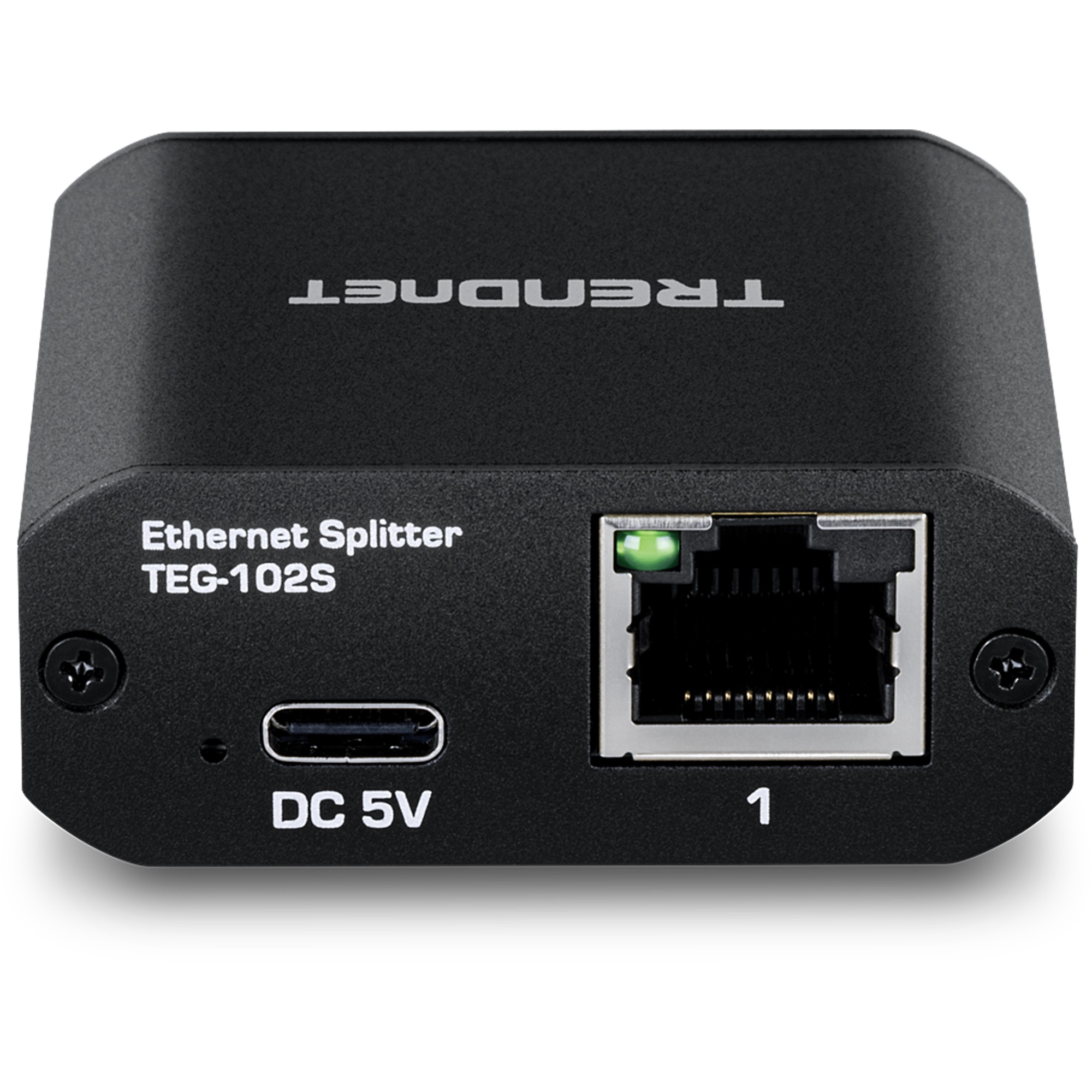

  • 1 x USB Type C power-in port
  • LED indicator
Data Transfer Rate
  • Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
  • Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
  • Gigabit: 2000Mbps (full duplex)
Performance
  • Data RAM Buffer: 128KB
  • Switching Fabric: 4Gbps
  • MAC Address Table: 2K entries
  • Jumbo Frame: 9KB
  • Forwarding Rate: 2.97Mpps (64-byte packet size)
USB-C Power
  • DC Input: 5V 1A or 5V 2A
  • 80cm (31.5 in.)
MTBF
  • 2, 173, 812hours @ 40° C
Operating Temperature
  • 0° – 40° C (-32° – 104° F)
Operating Humidity
  • Max. 95% non-condensing
Dimensions
  • 52 x 50 x 21mm (2 x 2 x 0.8 in.)
Weight
  • 52g (2 oz.)
Certifications
  • CE
  • FCC
Warranty
  • 2-year

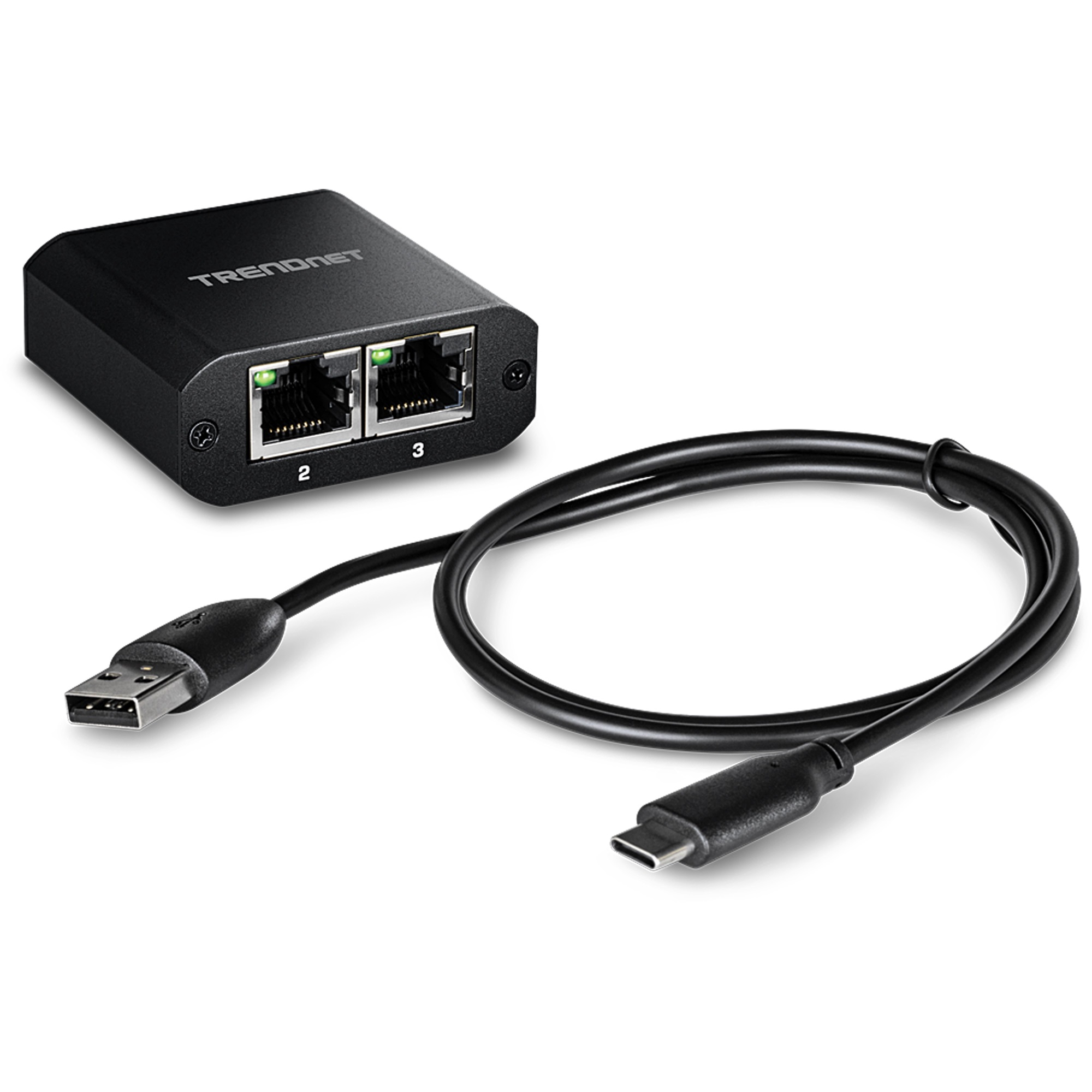

PACKAGE CONTENTS

  • TEG-102S
  • Quick Installation Guide
  • USB Type C power cable (80cm / 31.5 in.)
