Name: Trendnet - TK-215i - 2-port HDMI KVM Switch
Brand: Trendnet
SKU: TK-215i

Home — Brands — Trendnet — Wired —

Trendnet - TK-215i - 2-port HDMI KVM Switch

Part number:

TK-215i

Price:

Dealers only

Add to Quote/Project Registration

Description Specifications Downloads

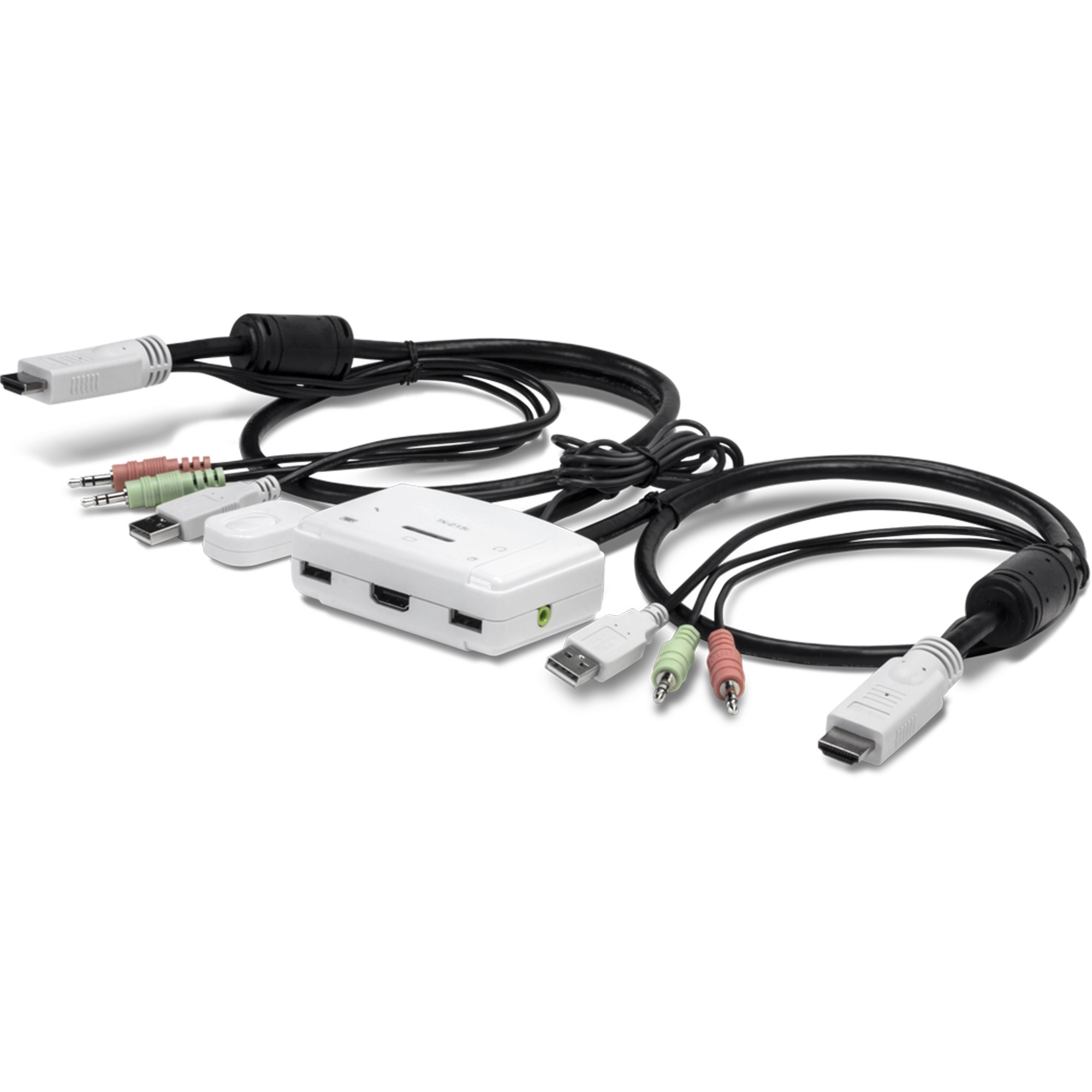

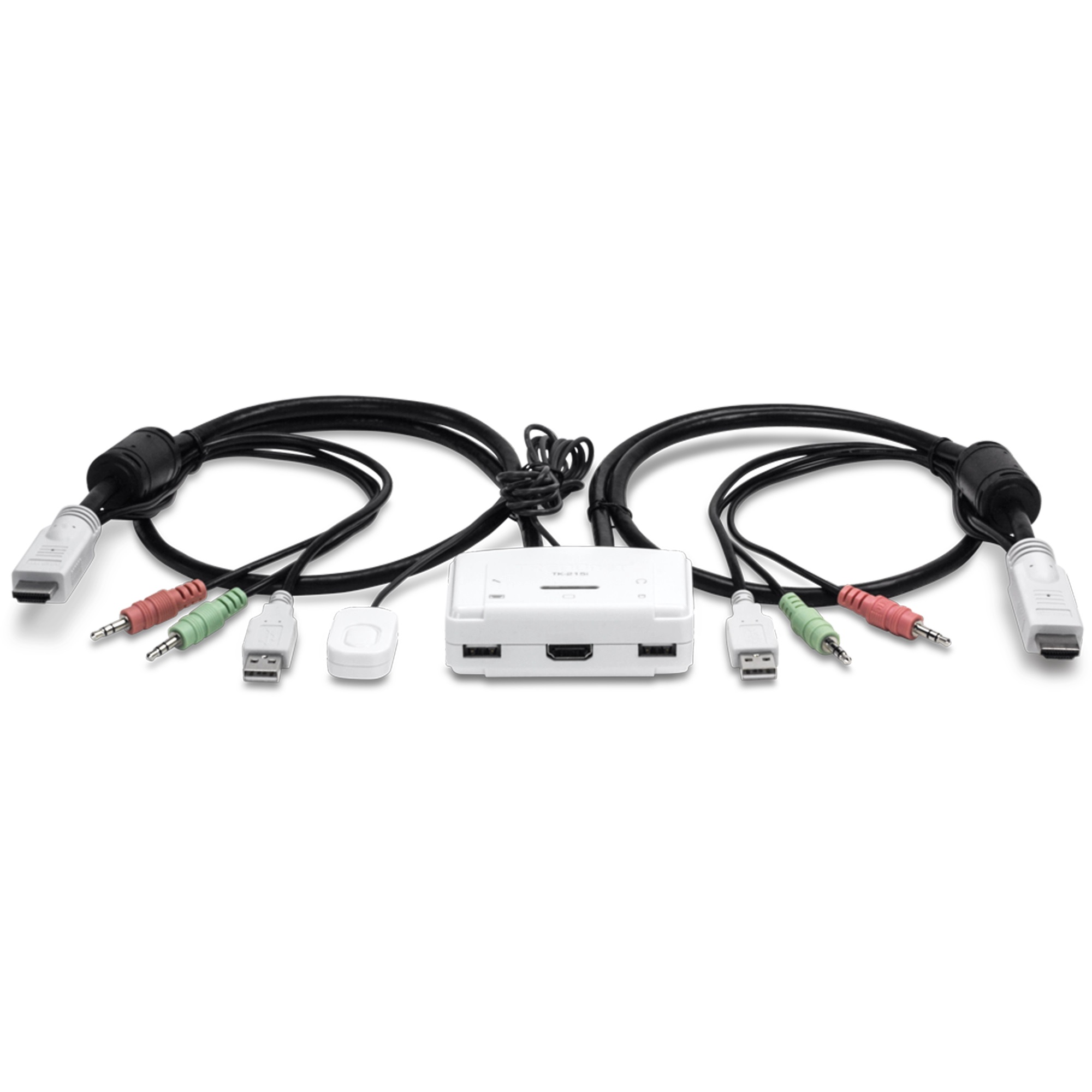

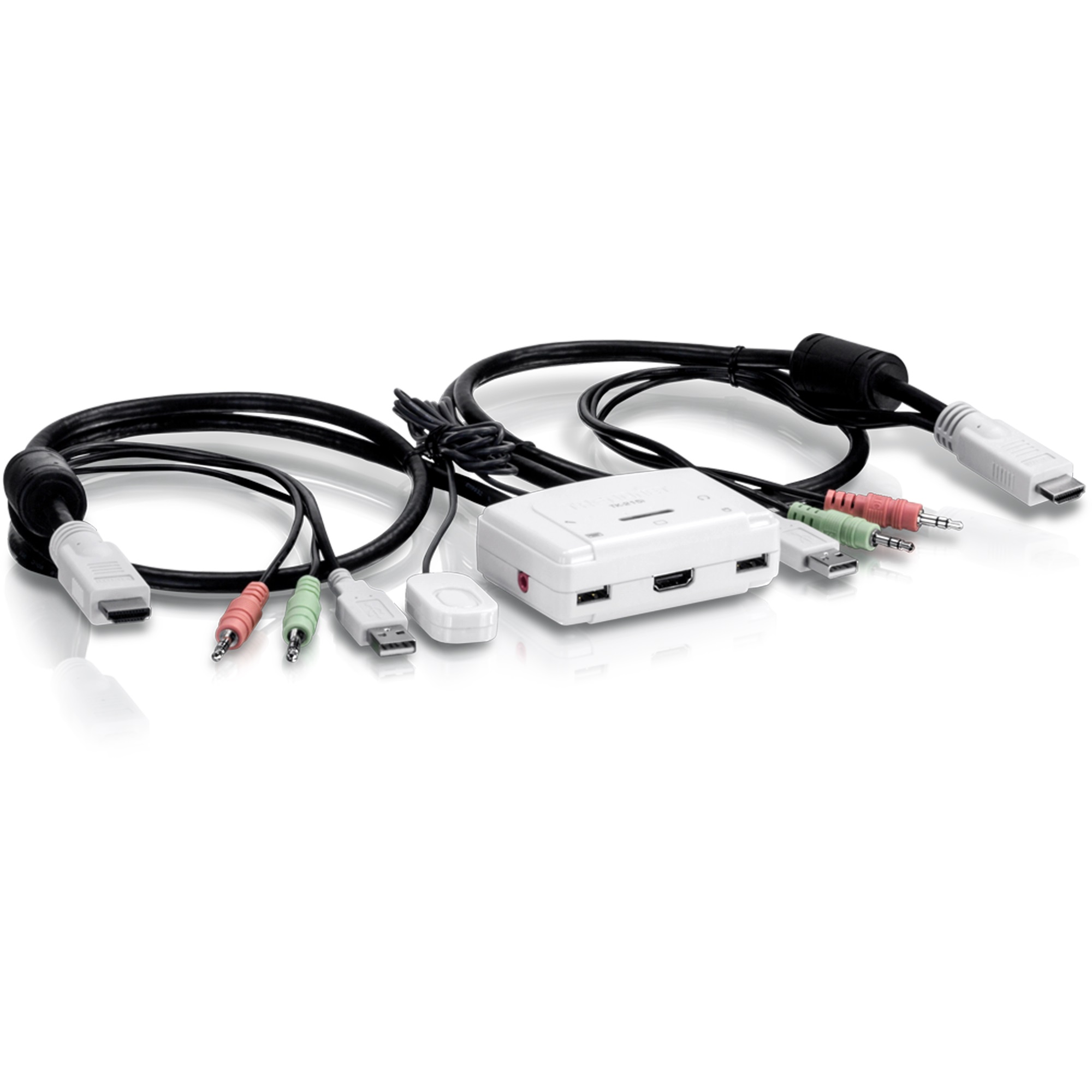

TRENDnet's 2-Port HDMI KVM Switch, model TK-215i, controls two computers (with an available HDMI port) with one set of console controls. No driver installation required, simply plug in the integrated cables to share two computers with a full HD 1080p display. The TK-215i supports HDMI and 3.5 mm analog audio and features an ergonomic computer toggle switch.

Features:

Control two computers with one set of console controls
Works with displays with an HDMI port
Full HD 1080p resolution
HDMI and 3.5 mm analog audio
Fully integrated cabling
Ergonomic computer toggle switch
No CD installation
USB Powered - No external power adapter
NDAA compliant

Console Port on KVM	Keyboard: USB Mouse: USB Monitor: HDMI 1.3 (19-pin) Speaker jack: 3.5 mm Microphone jack: 3.5 mm
Computer Connections (up to 2)	Keyboard / mouse: USB 2.0 type A Monitor: HDMI 1.3 (19-pin) Speaker jack: 3.5 mm Microphone jack: 3.5 mm
Monitor Resolution	1920 x 1080 @ 60 Hz
Audio Support	5.1 Audio support over HDMI cables Analog audio over speaker and microphone jacks
LED	Computer 1 and Computer 2
Switching Control	One touch toggle switch Keyboard hot key commands KVM Switch Software
Supported OS	Windows^® and Mac^®
Operating Temperature	0 – 40 °C (32 – 104 °F)
Operating Humidity	Max. 90 % non-condensing
Dimensions	Unit: 85 x 58 x 28 mm (3.3 x 2.3 x 1.1 in.) Integrated Cable: 85 cm (3 ft.) Toggle switch: 150 cm (5 ft.)
Weight	350 g (12.3 oz.)
Warranty	2 year limited
Certifications	CE FCC

PACKAGE CONTENTS

TK-215i
Quick Installation Guide
CD-ROM (Utility & User's Guide)

Name

Description

Size

Downloads

File

Datasheet

0.4mb

File

Quick Installation Guide

1.9mb

File

User Guide

1.5mb
