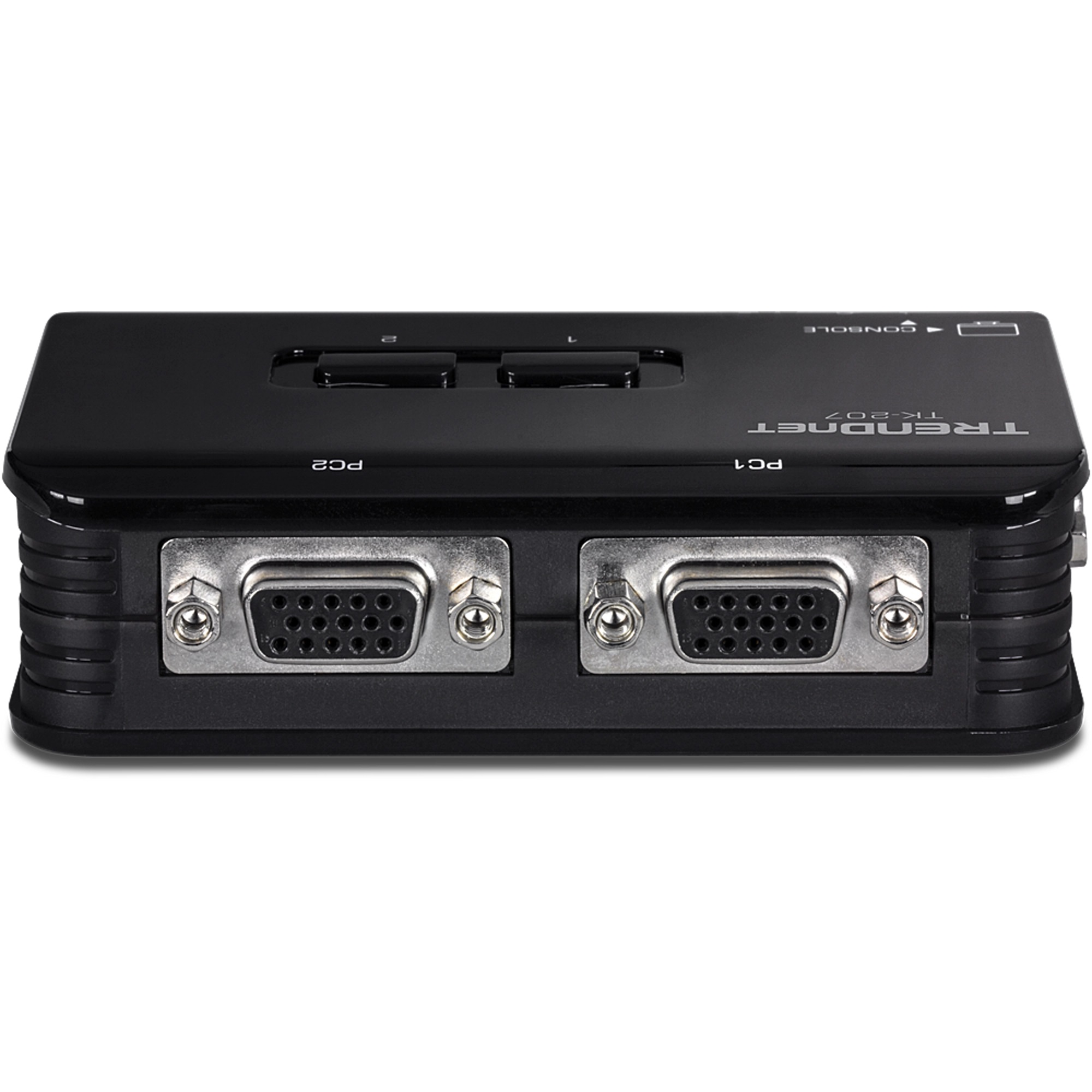

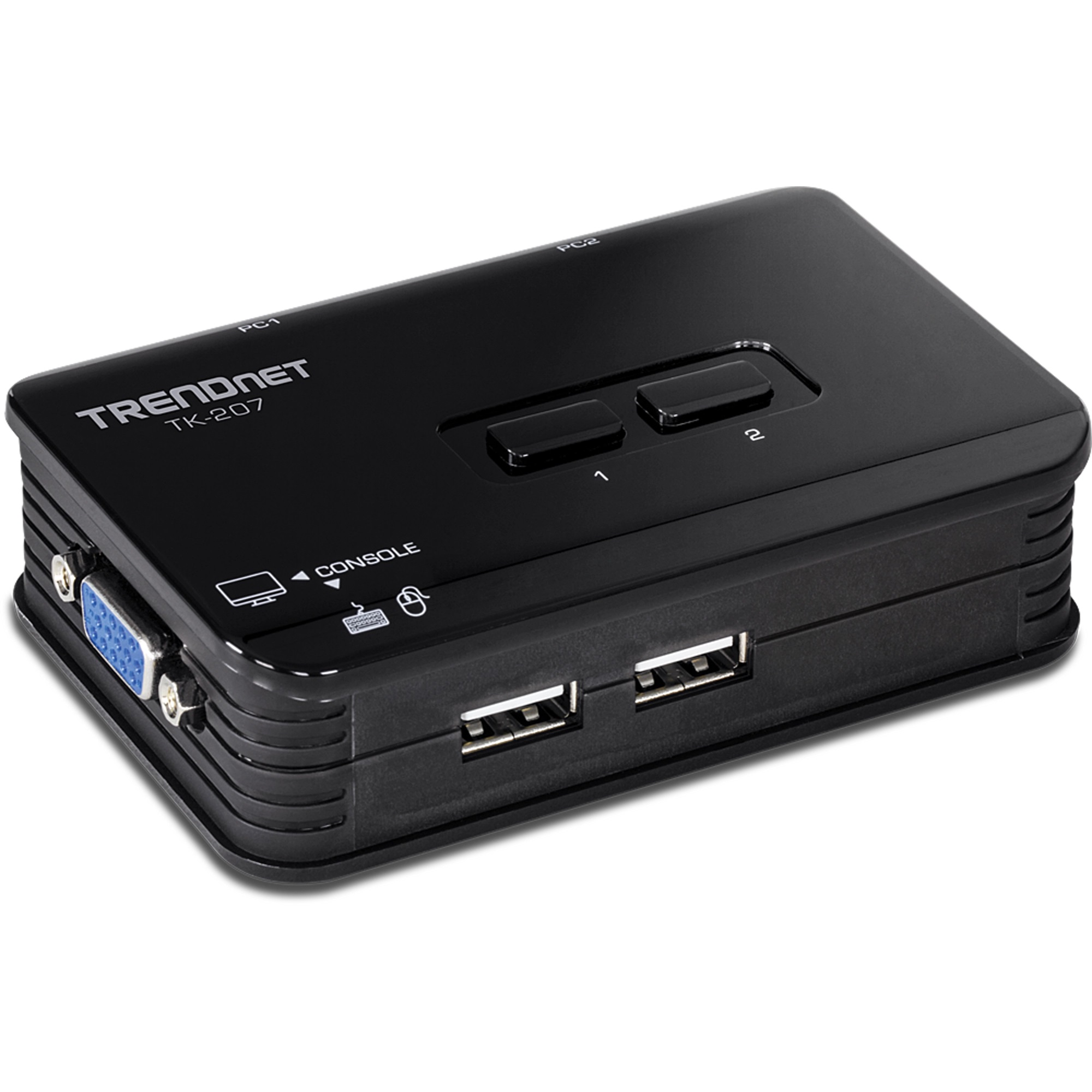

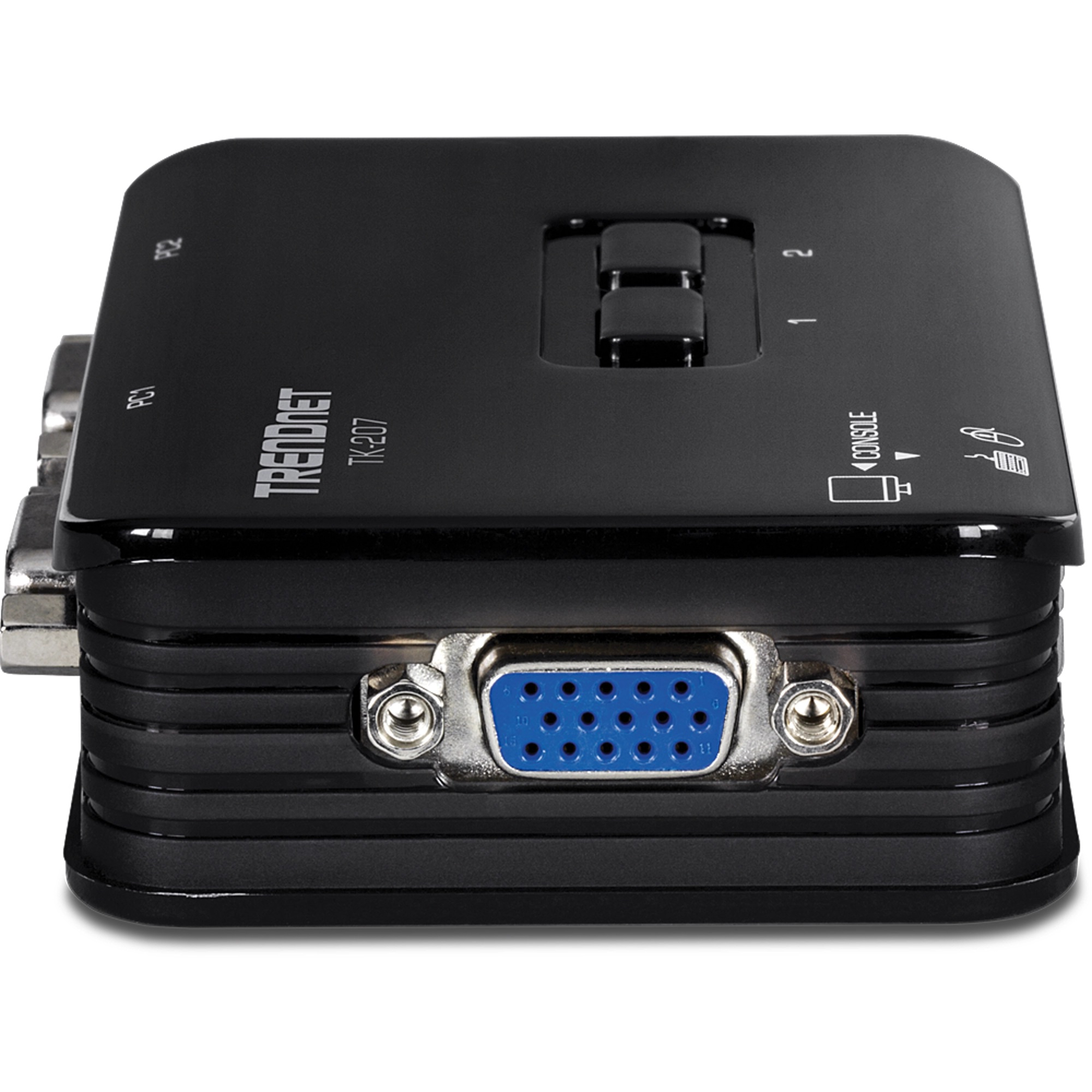

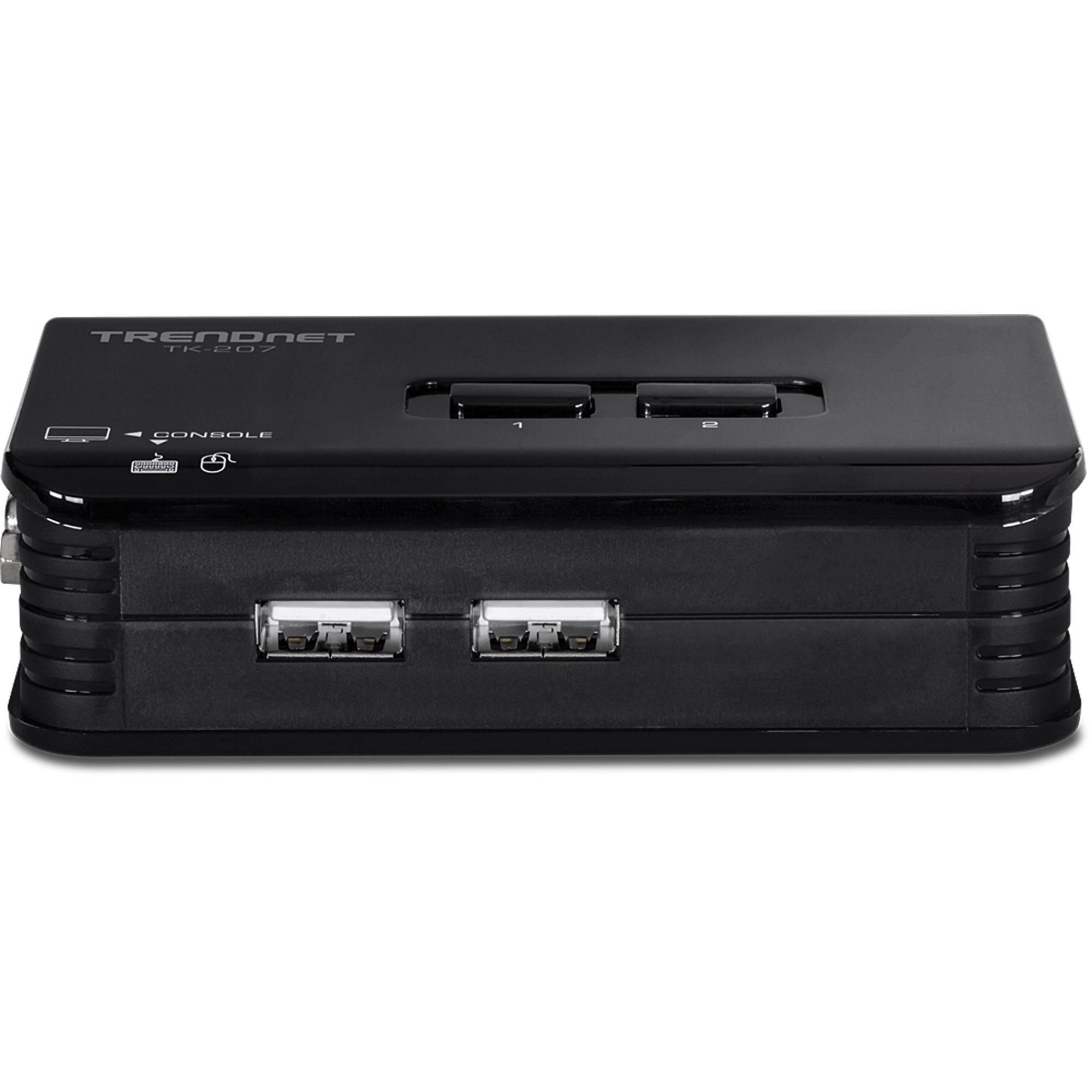

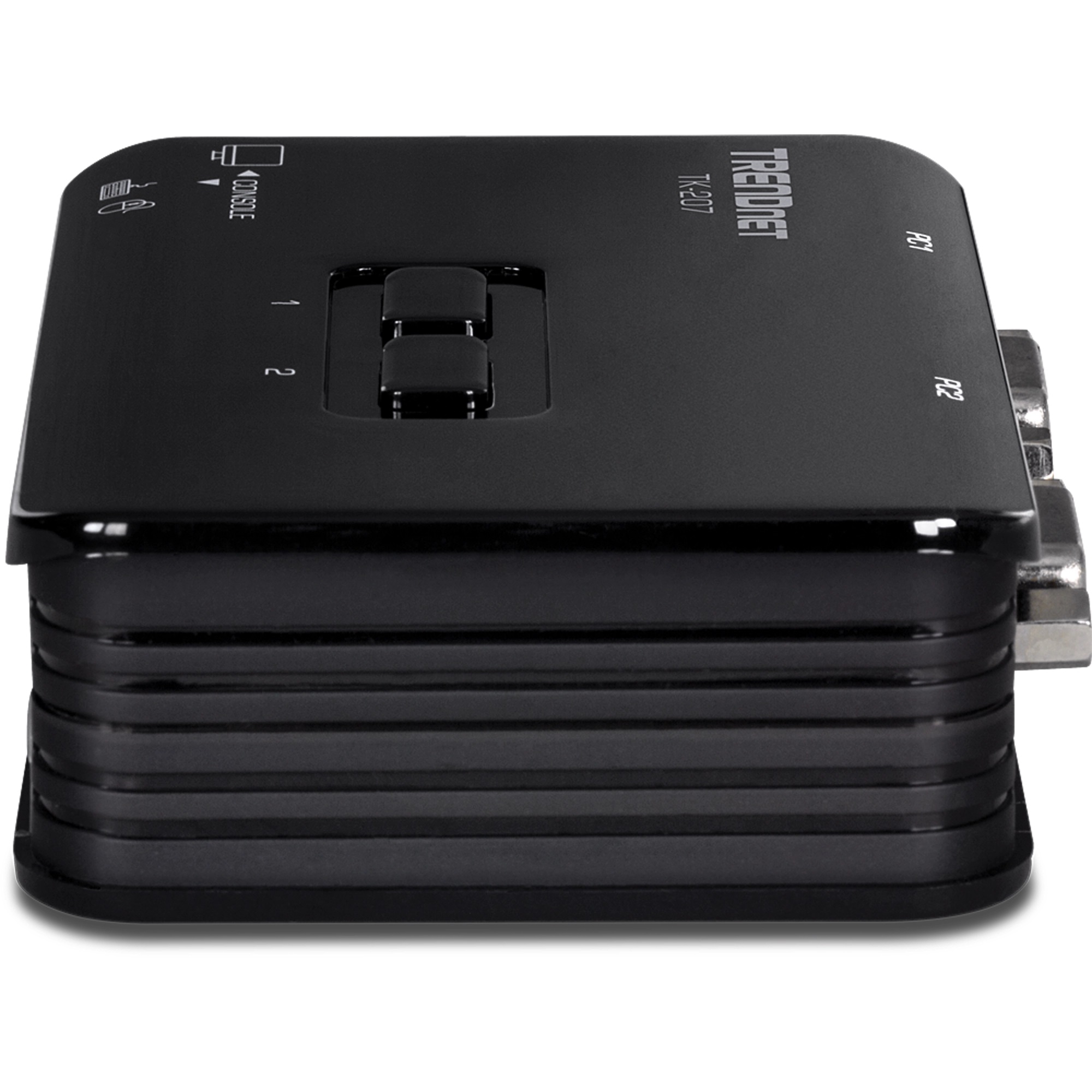

Trendnet - TK-207K - 2-port USB KVM Switch Kit (include 2 x KVM Cables)
Part number:
TK-207K
Price:

TRENDnet’s 2-Port USB KVM Switch, model TK-207K, allows you to manage two PCs with just one set of keyboard, monitor, and mouse. Switch between 2 PCs with a simple press of a button. Separate sets of KVM cables are included with the KVM Switch so that users can start controlling 2 PCs instantly. The KVM cables also provide power to the KVM Switch, eliminating the need for a power adapter. Hot Key operations provide immediate access to features such as computer switching, and auto-scanning. With its Hot-Plug and Audible Feedback, the 2-Port USB KVM Switch is an ideal choice for managing multiple PCs.



Features:

  • 2-Port KVM switch with VGA and USB connections to computers
  • Device monitoring with Auto-Scan and audible feedback
  • High quality 2048 x 1536 resolution for a crisp display
  • Supports most operating systems and advanced mouse designs
  • Control two computers with one set of console controls
  • Bus powered – No external power adapter required
  • All required cabling included
  • No CD installation required
  • NDAA compliant
Console Port Connectors
  • 1 x VGA /SVGA HDB 15-pin (Female)
  • 2 x USB ports (Keyboard / Mouse)
Computer Interface (up to 2)
  • 1 x USB Type A
  • 1 x VGA /SVGA HDB 15-pin (Female)
Cables (2 sets)
  • Length: 1.2m (4 ft.)
  • VGA /SVGA (Male) to VGA /SVGA (Male) / USB Type A
Monitor Resolution
  • 2048 x 1536 @ 60Hz
Switching Control
  • Front panel push buttons
  • Keyboard hot key commands
Operating Temperature
  • 0° – 40° C (32° – 104° F)
Operating Humidity
  • Max. 90% non-condensing
Power
  • USB powered
  • Max. consumption: 0.7W
Dimensions
  • 95 x 63 x 24mm (3.74 x 2.48 x 0.95 in.)
Weight
  • 96g (3.4 oz.)
Certifications
  • CE
  • FCC
Warranty
  • 2 year

PACKAGE CONTENTS

  • TK-207K
  • Quick Installation Guide
  • 2 x KVM Cables (1.2m/4 ft.)
