ELK - M1TWA - 2 Way Amplifier Bd, 3 Speaker & 3 Mic zones

ELK-M1TWA Provides 3 zones of amplified speaker outputs with adjustable volume, along with 3 zones of microphone inputs. The M1TWA can be used to add two way listen-in to the M1 Control or to just add amplified speakers at keypads and other locations in a building. Each of the 3 amplified speaker zones can drive a maximum combined impedance range of ~4 to 32 Ohms, permitting multiple speakers to be connected. Each zone includes a mute option that is triggered via an output from the control. The 3 microphone zones can handle up to 4 individual microphones each.

Features:

• 3 Amplified Speaker Zones
• Adjustable Speaker Volume Control by Zone
• Selectable Mute by Zone
• 3 Microphone Input Zones (up to 4 mics per zone)
• Selectable Mic Listen by Zone or Select ALL
• Interfaces to ELK-M1Gold Controls

Whats Included:

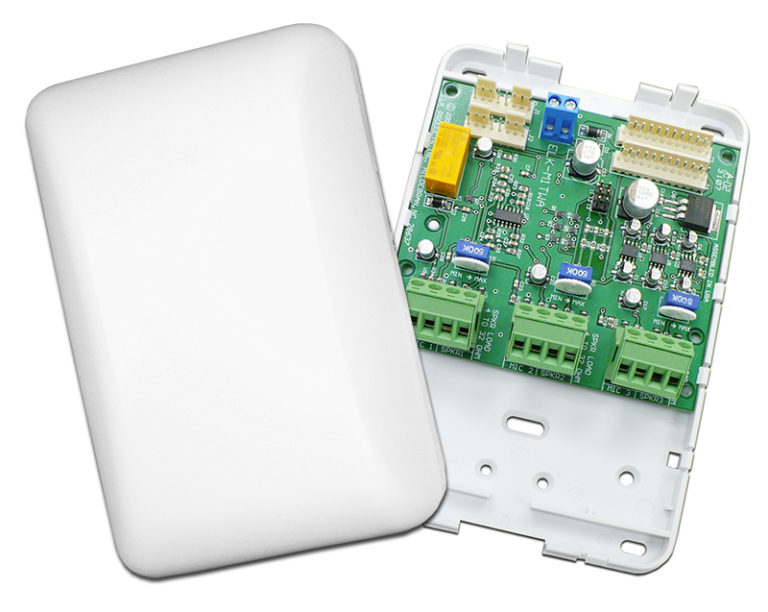

• Two-Way Listen-In/Amplifier Board
• Plastic Housing
• 4 #6 Plastic anchors
• 4 #6 Pan Head Sheet Metal Screws
• M1 to ANC Cable Assembly
• 12 Conductor Cable Assembly
• Instructions
