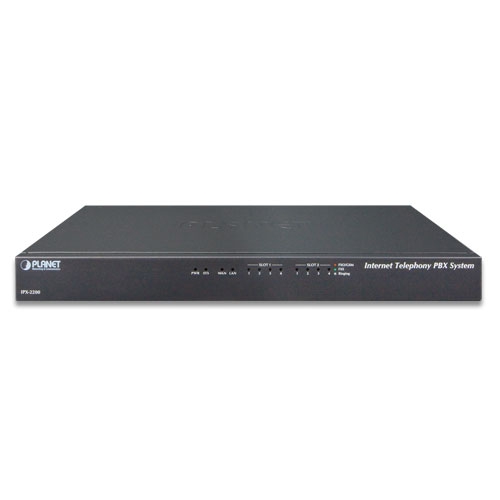

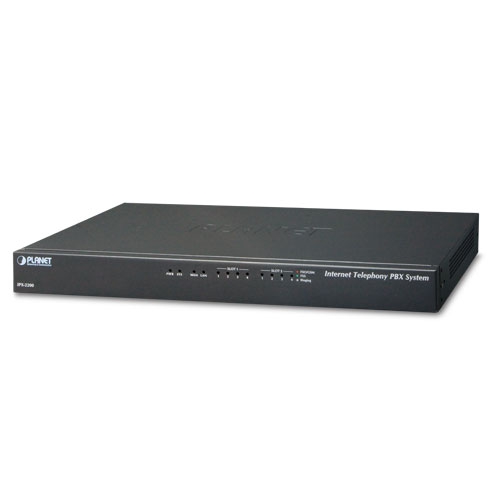

Planet - IPX-2200 - 200 User Asterisk base Advance IP PBX with 2-expandable PCI interface slots (FXO/FXS/GSM)
Product Overview
The Planet IPX-2200 is an Asterisk-based advanced IP PBX supporting up to 200 users and 60 concurrent calls, featuring 2 expandable PCI interface slots for FXO/FXS/GSM modules (up to 8 ports total). Includes dual Gigabit Ethernet ports (WAN/LAN), IETF SIP/IAX2 protocols, T.38 FoIP, TLS/SRTP security, VPN server/client, TR069, IPv6, SNMP, and HD voice codec G.722 support.
Key Configuration
• System capacity: 200 registers, 60 concurrent call legs
• Expansion slots: 2 × PCI interfaces supporting up to 8 ports total (FXO/FXS/GSM)
• Network interfaces: 1 × Gigabit RJ45 WAN, 1 × Gigabit RJ45 LAN
• USB port: external storage for voice recordings and voicemail (150 hours included storage)
• HDMI port: video output (factory use)
• Audio In/Out: external paging
• Dimensions: 343 × 154 × 35 mm
Key Features
Supports up to 60 simultaneous call sessions and 200 IP phone registrations with HD voice (G.722) for high-quality audio. Includes hardware echo cancellation, voicemail-to-email, fax-to-email, paging, intercom, and a built-in SIP proxy server for flexible VoIP deployment and unified communications.
Technical Context
Built on SIP standards with wide codec support (G.711, G.722, G.729, Opus, H.264, VP8, etc.), the system enables full PBX functionality, including call routing, conferencing, IVR, mobility extension, SIP trunking, and secure communications via VPN and SRTP. It also supports analog and GSM expansion modules for hybrid telephony integration.
Installation Notes
Desktop PBX unit (343 × 154 × 35 mm) operating from -10°C to 45°C with AC or 12V DC power input. Includes WAN/LAN ports, USB storage support for recordings, and modular FXO/FXS/GSM expansion slots (up to 8 ports total). Web-based setup wizard, DHCP/static IP support, and LED status indicators simplify deployment and monitoring.
| Hardware | |

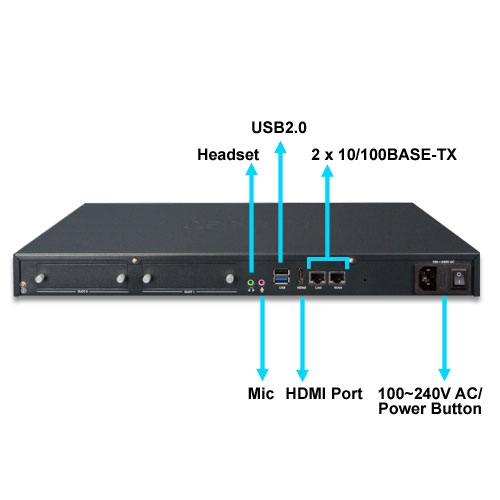

| WAN | 1 x 1000BASE-T RJ45 for WAN, connecting to broadband modem or a WAN router |
| LAN | 1 x 1000BASE-T RJ45 for LAN, connecting to a LAN switch |
| HDMI Port | For video output (factory use) |
| USB | For external store device to store voice and voicemail |
| Store data for external disk | |
| Audio In/Out | For external paging |
| 2 Slots | Supports maximum 8 ports (FXO/GSM) |
| Protocols and Standard | |
| Standard | SIP 2.0 (RFC 3261), IAX2 |
| Protocols | RFC 793 TCP |
| RFC 826 ARP | |
| RFC 1034, 1035 DNS | |
| RFC 1631 NAT | |
| RFC 2068 HTTP | |
| RFC 2131 DHCP | |
| RFC 2516 PPPoE | |
| RFC 3261, RFC 3311, RFC 3515 | |
| RFC 3265, RFC 3892, RFC 3361 | |
| RFC 3842, RFC 3389, RFC 3489 | |
| RFC 3428, RFC 2327, RFC 2833 | |
| RFC 2976, RFC 3263 | |
| TCP/IP, UDP/RTP/RTCP, HTTP, ICMP, ARP, DNS, DHCP, NTP/SNTP, PPP, PPPoE | |
| Voice Codec | G.711-Ulaw, G.711-Alaw, G.722, G.726, G.729, GSM, Speex and Opus |
| Video Codec | H.261, H.263, H.263+, H.264 and VP8 |
| Fax over IP | T.38 Fax (pass-through) |
| Note: T.38 support is dependent on fax machine, SIP provider and network/ transport resilience | |
| Voice Processing | DTMF detection and generation |
| RFC 4733, SIP info, in-band and Auto | |
| Internet Sharing | |
| Network Features | DDNS client (Planet DDNS and easy DDNS) |
| DHCP server/SNMP v1/v2 | |
| IEEE 802.1Q of VLAN | |
| IP assignment (DHCP/Static) | |
| IPv4, IPv6 | |
| Manual configuration of static route table | |
| Troubleshooting (ping, traceroute) | |
| VPN server ,VPN client | |
| Security Features | Refuse SIP Register DoS, |
| Refuse Abort Invite Dos | |
| Refuse SSH Login DoS | |
| Firewall and enhances HTTPS connection | |
| Features | |
| PBX Features | SIP Register with UDP/TCP/TLS |
| Phone Auto-Provision | |
| One Touch Recording | |
| Mobility Extension | |
| Black List | |
| BLF (Busy Lamp Field) | |
| CDR (Call Detailed Record) | |
| Conference Room | |
| DID (Direct Inward Dialing Number) | |
| DISA (Direct Inward System Access) | |
| DNIS (Dialed Number Identification Service) | |
| SRTP (Secure Realtime Transport Protocol) | |
| DND (Do Not Disturb) | |
| FOP (Flash Operation Panel) Status Monitoring | |
| IVR (Interactive Voice Responses) | |
| Follow Me, Call Spy and PIN Set | |
| Distinctive Ringtone | |
| Multi-language System Prompt | |
| Multiple Language of GUI | |
| Phone Book, Speed Dial | |
| LDAP Server for phonebook | |
| Record Files Download | |
| Ring Group, SIP Trunk | |
| Skype for SIP, Smart DID, System Log | |
| T.38 fax (pass-through), voicemail and voicemail to e-mail | |
| Time-based Rule | |
| PBX log, web access log and PBX debug log | |
| Call Features | Call Back, Call Forward, Call Group |
| Call Hold, Call Paging and Intercom | |
| Call Park, Call Pickup, Call Queue | |
| Call Record, Call Route, Blind Transfer | |
| Attend Transfer, Call Waiting | |
| Caller ID, Dial by Name | |
| Customized IVR, On-hold Music, Transfer | |
| Three-way Conferencing, Video Call | |
| System Capacity | |
| System Capacity | 60 concurrent call legs |
| Up to 200 IP phone registers/extensions | |
| Recording and Voicemail: 150 hours | |
| Network and Configuration | |
| Access Mode | Static IP, DHCP |
| LED Indications | SYS: 1, LNK/Off |
| WAN: 1, LNK/Off | |
| LAN: 1, LNK/Off | |
| PWR: 1, LNK/Off | |
| SLOT: FXO/GSM (Red), FXS (Green) | |
| Dimensions (W x D x H) | 343 x 154 x 35 mm |
| Operating Environment | -10~45 degrees C, 10~80% humidity |
| Power Requirements | AC 100V-240V, DC 12V/2A, 50/60Hz |
| EMC/EMI | CE, FCC Class B, RoHS |
