UNV - MW3222-L-DT - 22" CCTV Monitor
Product Overview

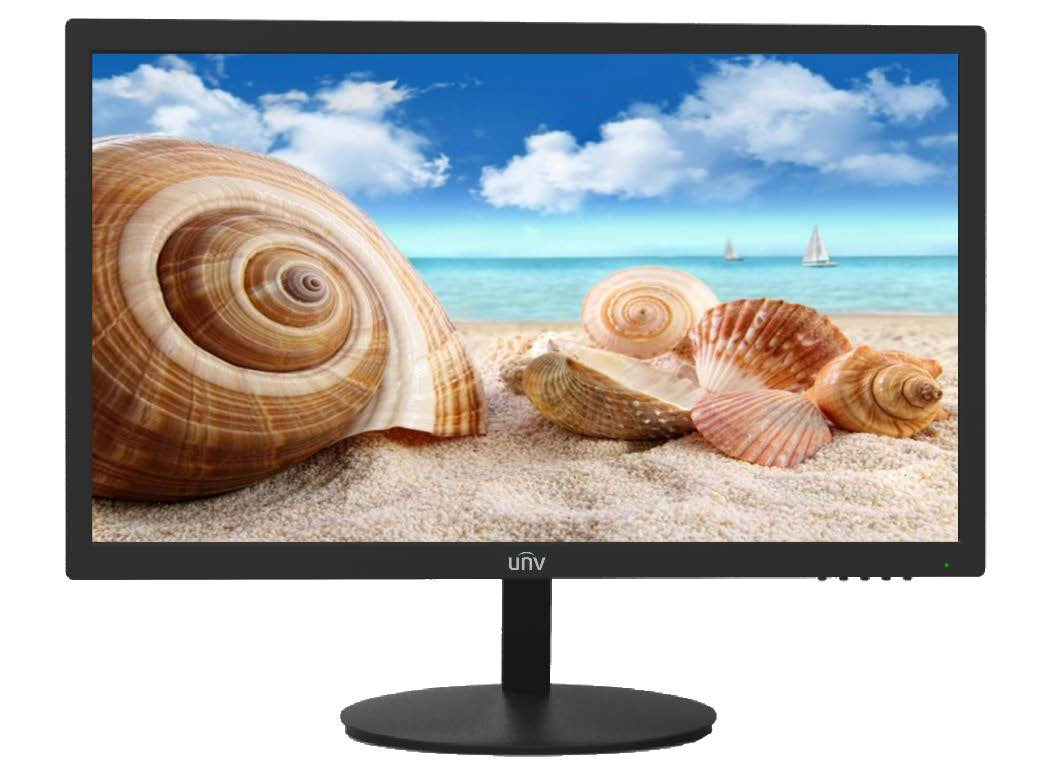

Uniview MW3222-L-DT is a 22" CCTV monitor with LED backlight and 1920×1080 maximum resolution. It features 250 cd/m² brightness, 3000:1 contrast ratio, 7 ms response time, 60 Hz refresh rate, and 178° horizontal and vertical viewing angles. The monitor includes VESA 100×100 mm mounting and comes with a pedestal mount.
Key Configuration
- • Screen size: 21.5"; aspect ratio: 16:9; max resolution: 1920×1080
- • Brightness: 250 cd/m²; contrast ratio: 3000:1; response time: 7 ms; refresh rate: 60 Hz
- • Inputs: 1 × VGA, 1 × HDMI
- • VESA mounting: 100 × 100 mm; 4-M4 threaded holes
- • Power supply: DC 12V, 2A; power consumption: ≤24W (on), ≤0.5W (standby)
Key Features
• LED backlight display with 16.7M colors; true color display
• Wide viewing angles: 178° horizontal and 178° vertical
• Built-in 3D COMB filter and 3D noise reduction
• 5 ms response time for no motion blur, judder, or ghosting
• High fidelity digital processing; adaptive signal recognition
• Multi-language OSD: English, French, Spanish, German, Russian, Korean, Japanese, Simplified Chinese (8 languages)
• Professional thermal design to extend equipment lifespan; supports 7×24 working
Technical Context
Pixel pitch: 0.24825 × 0.24825 mm. Dimensions with pedestal: 508.02 × 392.87 × 200.00 mm. Package dimensions: 566 × 382 × 166 mm. Net weight: 2.3 kg; gross weight: 3.4 kg. Accessories included: HDMI cable, adapter, pedestal, quick guide. Optional hanging bracket available (Model: HB-4022-E).
Installation Notes
Operating temperature: 0°C to 40°C; operating humidity: 20%–85% non-condensing. Storage temperature: -10°C to 50°C; storage humidity: 10%–90% non-condensing. VESA 100×100 mm mounting with 4-M4 threaded holes. Pedestal mount included.
| Model | MW3222-L-DT |
| Display | |
| Display Type | LED Backlight |
| Screen Size | 21.5” |
| Aspect Ratio | 16:9 |
| Pixel Pitch(mm) | 0.24825*0.24825 |
| Max Resolution | 1920*1080 |
| Brightness(cd/m2) | 250 |
| Contrast | 3000:1 |
| Response Time(ms) | 7 |
| Color | 16.7M |
| Viewing Angle | Horizontal 178°, Vertical 178° |
| Refresh Rate | 60Hz |
| Interface | |
| Input | 1*VGA、1*HDMI |
| OSD | |
| Multi- Language | 8 (English、France、Spanish、German、Russia、Korea、Japanese、Simplified Chinese) |
| Mounting | |
| VESA(mm) | 100*100 |
| Wall-mounted Thread | 4-M4 Threaded hole |
| General | |
| Power supply | DC 12V, 2A |
| Consumption(W) | ≤24(on) ≤0.5(Standby) |
| Operation Temperature | 0°C ~ 40 °C |
| Operating Humidity | 20%~85% (No Condensation) |
| Storage Temperature | -10°C ~50°C |
| Storage Humidity | 10%~90% (No Condensation) |
| Dimension(W*H*D)(mm) | 508.02*392.87*200.00 (With Pedestal) |
| Package(W*H*D)(mm) | 566*382*166 |
| Weight(Kg) | Net Weight:2.3 Gross Weight:3.4 |
| Accessory | |
| Standard | HDMI Cable, Adapter, Pedestal, Quick Guide |
| Optional | Hanging bracket(Model: HB-4022-E) |
