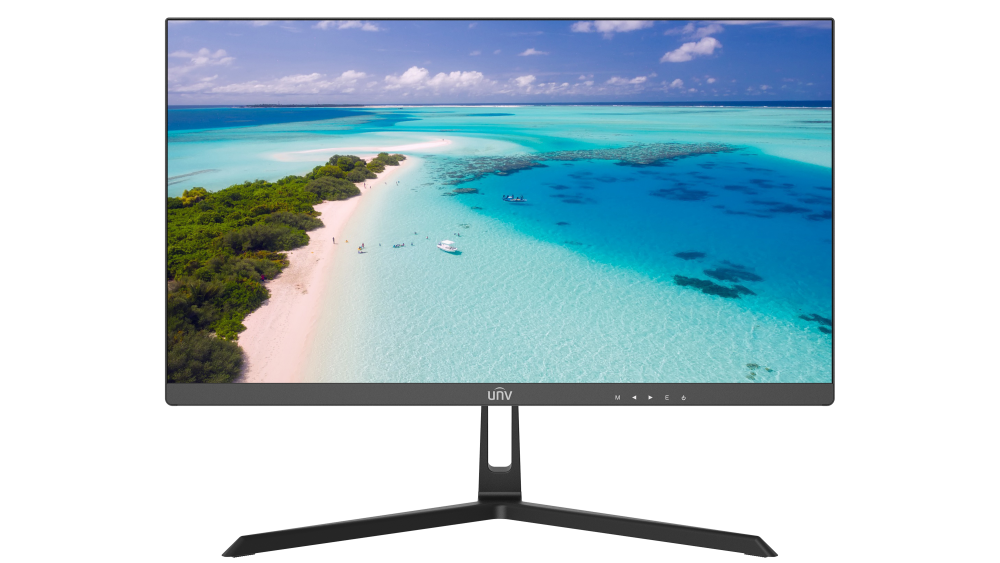

Uniview - MW-LC22-B - 22 Inch Plastic Shell IT Monitor
Part number:
MW-LC22-B
Price:
22 Inch Plastic Shell IT Monitor
Features:
- Resolution is up to at 1920 × 1080.
- Refresh rate up to 100 Hz.
- 178° horizontal and vertical viewing angle.
- Screen can reduce blue light, protect eyes.
- Plastic body, ultra-narrow bezel, light weight and elegant.
- Shielding cover design, effectively preventing electromagnetic radiation.
- Stable structure design, highly durable.
- Automatically detect if the signal is connected successful.
- Support multiple language.
| Model | MW‑LC22‑B |
| Panel | |
| Backlight | ELED |
| LCD Technology/Panel Type | IPS |
| Panel Size | 22" |
| Pixel Pitch (H × V) (mm) | 0.24 × 0.24 |
| Resolution | 1920 × 1080 |
| Color Support | 16.7 M |
| Color Gamut | 72% NTSC |
| Brightness (cd/m²) | 250 |
| Contrast Ratio | 1300:1 |
| Refresh Rate | 100 Hz |
| Response Time (ms) | 8 |
| Viewing Angle (H/V) | Horizontal 178°, Vertical 178° |
| Surface Treatment | Haze 25%, 3H |
| Display Size (mm) | 478.6 × 260.2 |
| Bezel Width | 2.0 mm (top/left/right), 16.8 mm (bottom) |
| Operation Hour | 18/7 |
| Interface | |
| Video Input | 1 × HDMI (1920 × 1080@100 Hz), 1 × VGA (1920 × 1080@60 Hz) |
| VESA | |
| VESA (mm) | 75 × 75 |
| Wall‑mounted Thread | 4‑M4 Threaded Hole, 10 mm Deep Thread |
| OSD | |
| Multi‑Language | English, German, French, Spanish, Italian, Dutch, Simplified Chinese, Japanese, Korean, Danish, Portuguese, Turkish, Russian, Arabic, Traditional Chinese |
| General | |
| Input Voltage | DC 12 V, 2 A |
| Typical Power Consumption (W) | ≤ 24 |
| Standby Power Consumption (W) | ≤ 0.5 |
| Product Dimensions (W × H × D) (mm) | 491.66 × 285.06 × 38.00 (Without Pedestal) 491.66 × 377.00 × 180.42 (With Pedestal) |
| Package Dimensions (W × H × D) (mm) | 553 × 365 × 112 |
| Weight (kg) | Net Weight: 2.3 Gross Weight: 3.4 |
| Operating Temperature | 0℃ to 40℃ |
| Operating Humidity | 10% to 85% (No Condensation) |
| Storage Temperature | ‑20℃ to 60℃ |
| Storage Humidity | 5% to 90% (No Condensation) |
| Material | ABS + SGCC |
| Lifetime (h) | 30000 |
| Certifications | CE/FCC |
| MTBF | 50000 h |
| Standard | 1 × HDMI Cable, 1 × Quick Guide, 1 × Pedestal, 1 × Adapter |
