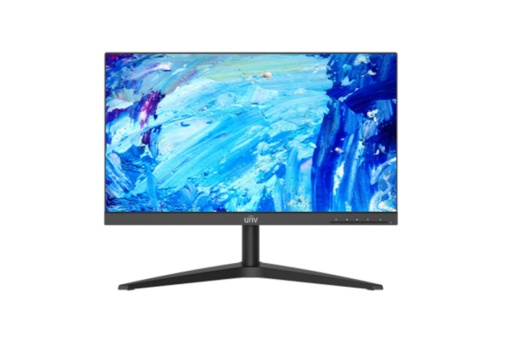

Uniview - MW-LC22 - 22" IT Monitor(With HDMI Cable, Pedestal Mount)
Part number:
MW-LC22
Price:
22" IT Monitor(With HDMI Cable, Pedestal Mount)
Features:
- Resolution is up to at 1920×1080.
- Refresh rate up to 100Hz.
- 178° horizontal and vertical viewing angle.
- Screen can reduce blue light, protect eyes.
- Plastic body, ultra narrow bezel, light weight and elegant.
- Shielding cover design, effectively preventing electromagnetic radiation.
- Stable structure design, highly durable.
- Automatically detect if the signal is connected successful.
- Support multiply language.
| Model | MW-LC22 |
| Display | |
| Display Type | LED Backlight |
| Screen Size | 21.45” |
| Pixel Pitch(mm) | 0.24*0.24 |
| Max Resolution | 1920*1080 |
| Brightness(cd/m2) | 250 |
| Contrast | 1000:1 |
| Response Time(ms) | 5 |
| color | 16.7M |
| Refresh rate | 100HZ |
| Viewing Angle | Horizontal 178°, Vertical 178° |
| Interface | |
| Input | 1* HDMI、1*VGA |
| Speaker | |
| Speaker | 2*1W |
| OSD | |
| Multi- Language | 16 (English, French, Spanish, Portuguese, German, Italian, Dutch, Swedish, Finnish, Polish, Czech, Russian, Korean, Chinese Simplified, Chinese Traditional, Japanese) |
| Mounting | |
| VESA(mm) | 100*100 |
| Wall-mounted Thread | 4-M4 Threaded hole |
| General | |
| Power supply | DC 12V, 2A |
| Consumption(W) | ≤24 (on) ≤0.5(Standby) |
| Operation Temperature | 0°C ~ 40 °C |
| Operating Humidity | 20%~85% (No Condensation) |
| Storage Temperature | -10°C ~ 50°C |
| Storage Humidity | 10%~90% (No Condensation) |
| Dimension (W*H*D)(mm) | 493.06*382.69*199.83 (With Pedestal) |
| Package(W*H*D)(mm) | 557*370*140 |
| Weight(Kg) | Net Weight:2.3 Gross Weight:3.3 |
| Accessory | |
| Standard | HDMI cable、Adapter、Pedestal、Quick Guide |
Name
Description
Size
Downloads
File
Datasheet
0.6mb
