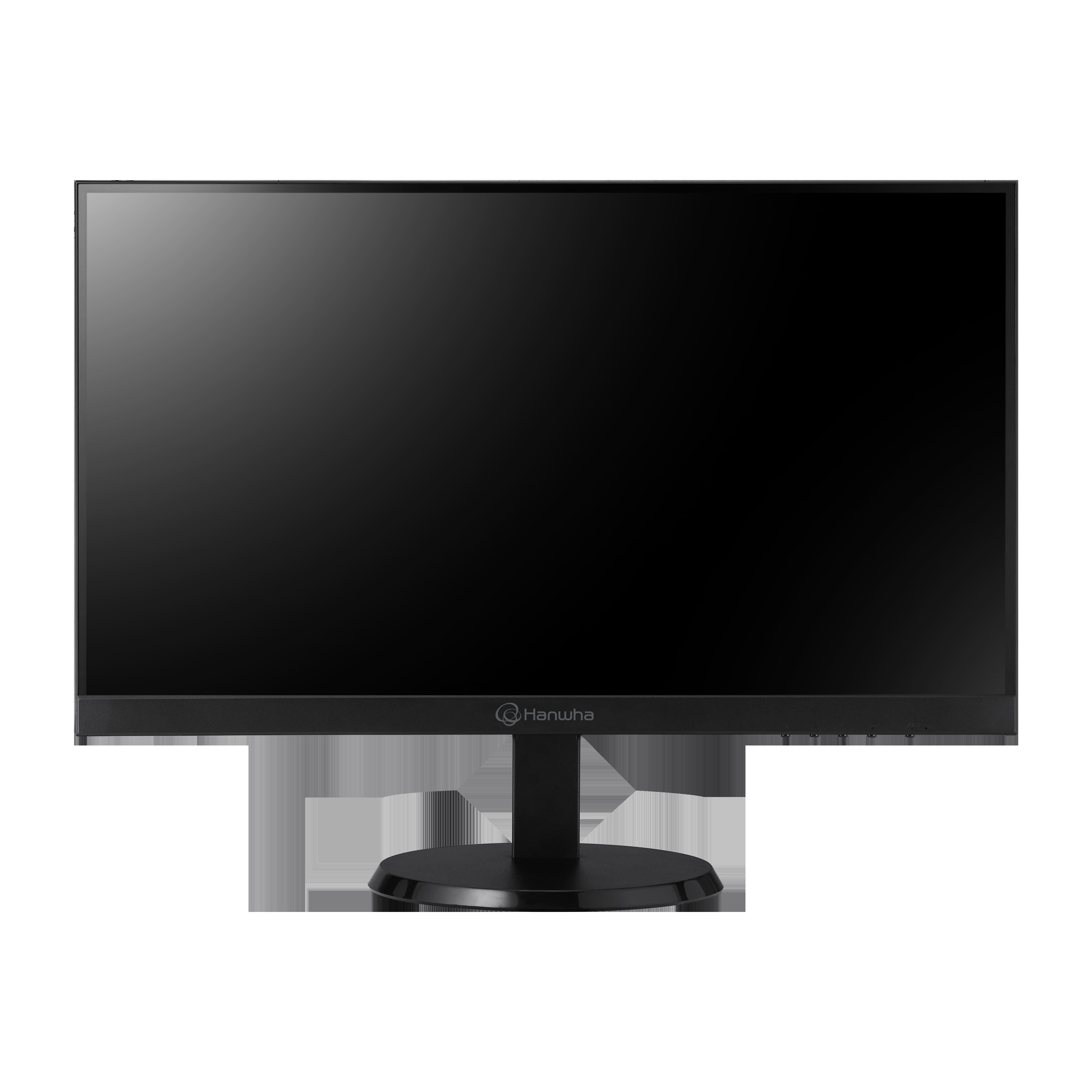

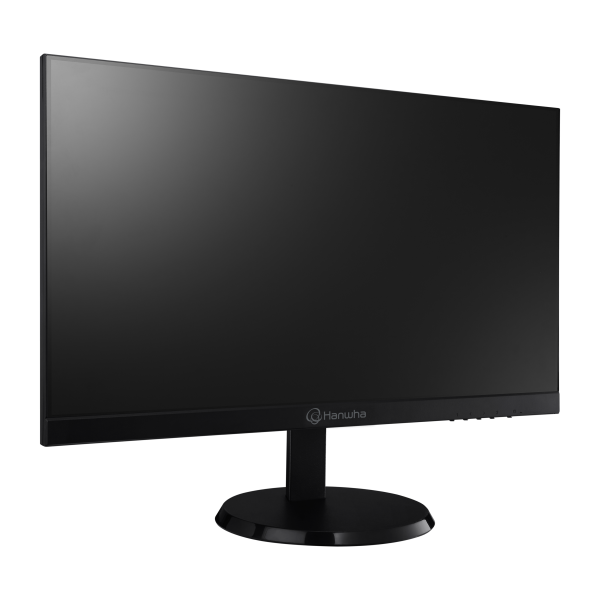

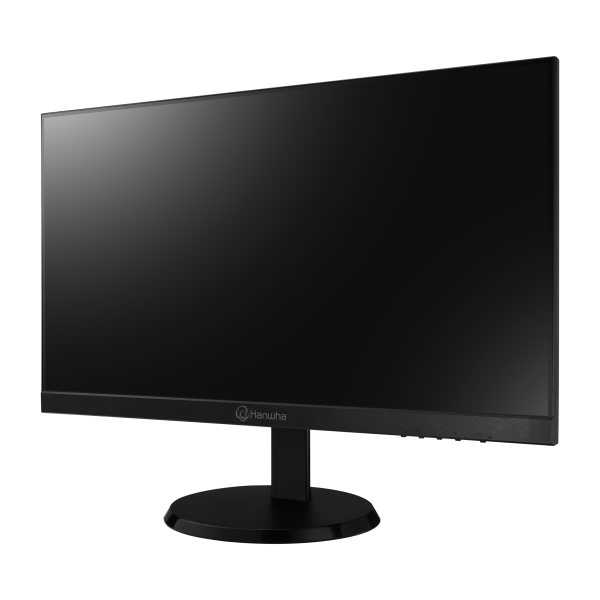

Hanwha - SMT-2212 - 22" LED Monitor, Full HD, 1080p (1920x1080), HDMI, VGA, 16:9 aspect ratio, VESA DPM Compatible (100x100mm)
Part number:
SMT-2212
Price:
22" LED Monitor, Full HD, 1080p (1920x1080), HDMI, VGA, 16:9 aspect ratio, VESA DPM Compatible (100x100mm).
Features:
- 22” FHD Monitor designed and tested for 24/7 operation
- Supports up to 1920x1080 60Hz (FHD)
- Brightness 250 cd/m²（Typical)
- Contrast 2000:1(Minimum), 3000:1 (Typical)
- Viewing Angle (H/V) : 178°/178°, Response Time : 6.5ms (Typical)
- Video Input : HDMI(1), VGA(1)
- Frameless design with monitor stand
- Panel Life : 30,000 hours
| Specifications | ||
| Display | ||
| Type | LED Monitor | |
| Screen Size | 21.45" | |
| Max. Resolution | 1920*1080 60Hz (FHD) | |
| Brightness | 250 cd/m² (Typ) | |
| Contrast Ratio | 2000：1(min) 3000:1 (Typical) | |
| Aspect Ratio | 16:9 | |
| Viewing Angle (H/V) | 178°/178° | |
| Display Color | 1.07B Colors(Typ) | |
| Response Time | 6.5ms（Typical) | |
| Panel Life | 30,000 hours | |
| Interface | ||
| Video | Connectors | VGA (1), HDMI (1) |
| VGA | Connector | VGA |
| Available Format | 640 × 480@60Hz/72Hz/75Hz;800 × 600@60Hz/72Hz/75Hz;1024 × 768@60Hz/75Hz;1280 × 1024@60Hz/75Hz;1440× 900@60Hz;1680× 1050@60Hz；1920× 1080@60Hz | |
| HDMI | Connector | HDMI |
| Available Format | 640 × 480@60Hz/72Hz/75Hz;800 × 600@60Hz/72Hz/75Hz;1024 × 768@60Hz/75Hz;1280 × 1024@60Hz/75Hz;1440× 900@60Hz;1680× 1050@60Hz；1920× 1080@60Hz | |
| On Screen Display | ||
| Functions | VESA™ DPM Compatible | |
| Language | 12 (English, French, German, Italian, Simplified Chinese, Traditional Chinese, Korean, Japanese, Espanola, Portuguese, Russian, Arabic ) | |
| General | ||
| Electrical | Input Voltage | DC 12V 5A, Adapter included |
| Power Consumption | <30W | |
| Environmental | Operating Temperature | 0 ~ +40°C (+32°F ~ +104°F) |
| Operating Humidity | 10% ~ 80% (non-condensing) | |
| Mechanical | Dimensions with Stand (WxHxD) | 491.9*186.7*371.4*mm |
| Dimensions without Stand (WxHxD) | 491.9*36.1*289.4mm | |
| Weight | 2.59 Kg | |
| Cabinet Color | Black | |
| VESA Mounts Interface | 100*100mm | |
Name
Description
Size
Downloads
File
Datasheet
0.3mb
File
CAD
0.1mb
File
Hanwha Techwin America - NDAA Compliant Product List
0.4mb
File
Manual
1.8mb
File
Quick Guide
0.5mb
