Hanwha - SMT-2431 - 24" LED Monitor, Full HD, 1080p (1920x1080), HDMI, VGA, 16:9 aspect ratio, VESA DPM Compatible (100x100mm)
Part number:
SMT-2431
Price:
24" LED Monitor, Full HD, 1080p (1920x1080), HDMI, VGA, 16:9 aspect ratio, VESA DPM Compatible (100x100mm).
Features:
- 24" LED Monitor designed and tested for 24/7 operation
- Supports up to Full HD, 1080p (1920x1080) resolution
- 16:9 aspect ratio
- VESA DPM Compatible (100x100mm)
- Frameless Design
- Brightness : 250cd/㎡
- Contrast : 4000:1
- Viewing Angle(H/V) : 178°/178°
- Ultra Fast Response Time : 14ms

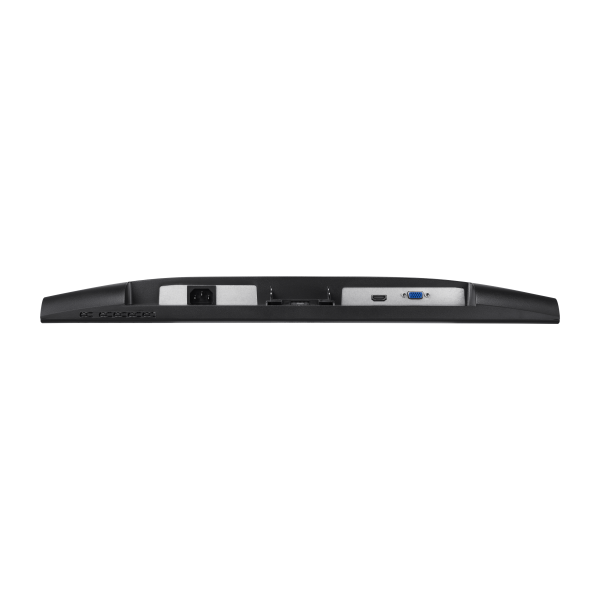

- Video Inputs : HDMI, VGA
- Panel Life : 30,000 hours
- Desktop stand included
| Specifications | ||
| Display | ||
| Type | LED Monitor | |
| Screen Size | 23.8” | |
| Max. Resolution | 1920*1080 | |
| Brightness | 250cd/㎡ | |
| Contrast Ratio | 4000:1 (Typical) | |
| Aspect Ratio | 16:9 | |
| Viewing Angle (H/V) | 178°/178° | |
| Display Color | 16.7M（6bit+FRC） | |
| Response Time | 14ms(Typical) | |
| Panel Life | 30,000 hours | |
| Interface | ||
| Video | Connectors | VGA(1) HDMI (1) |
| VGA | Connector | VGA |
| Available Format | 640 × 480@60Hz/72Hz/75Hz/;720 × 400@70Hz；800 × 600@60Hz/72Hz/75Hz;1024 × 768@60Hz/75Hz;1280 × 1024@60Hz/75Hz;1440× 900@60Hz;1680× 1050@60Hz；1920× 1080@60Hz | |
| HDMI | Connector | HDMI |
| Available Format | 640 × 480@60Hz/72Hz/75Hz/;720 × 400@70Hz；800 × 600@60Hz/72Hz/75Hz;1024 × 768@60Hz/75Hz;1280 × 1024@60Hz/75Hz;1440× 900@60Hz;1680× 1050@60Hz；1920× 1080@60Hz | |
| On Screen Display | ||
| Functions | VESA™ DPM Compatible | |
| Language | 12 (English, French, German, Italian, Simplified Chinese, Traditional Chinese, Korean, Japanese, Espanola, Portuguese, Russian, Arabic ) | |
| General | ||
| Electrical | Input Voltage | AC 100 ~ 240V(50/60Hz) |
| Power Consumption | <30W | |
| Environmental | Operating Temperature | 0 ~ +40°C (+32°F ~ +104°F) |
| Operating Humidity | 10% ~ 80% (non-condensing) | |
| Mechanical | Dimensions with Stand (WxHxD) | 540*420.3*224.1mm |
| Dimensions without Stand (WxHxD) | 540*324*46mm | |
| Weight | 3.5Kg | |
| Cabinet Color | Black | |
| VESA Mounts Interface | 100*100mm | |
