Planet - FGSD-2621P - 24-Port 10/100TX 802.3at PoE + 2-Port 10/100/1000T + 1-Port shared 1000X SFP Unmanaged Gigabit Ethernet Switch

Product Overview

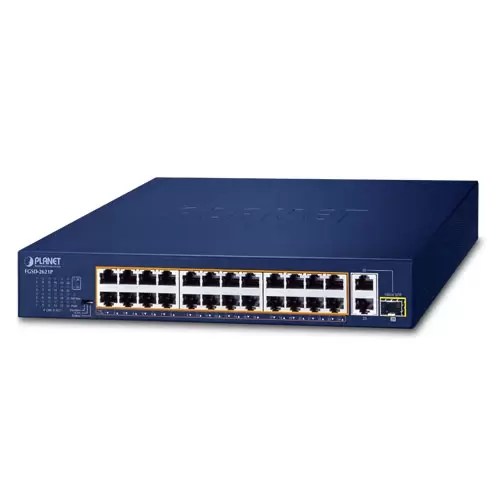

The Planet FGSD-2621P is an unmanaged PoE+ switch featuring 24 10/100BASE-TX PoE+ ports with a 185W total budget, 2 Gigabit copper uplink ports, and 1 shared 1000BASE-X SFP slot, all backed by an 8.8 Gbps switching fabric. It includes a DIP switch for Standard (100m), VLAN (port isolation), and Extend (250m at 10Mbps with 20W PoE) modes, plus PD alive check for automatic power recycling of unresponsive devices, all housed in a 1U chassis supporting desktop or rack-mount installation.

Key Configuration

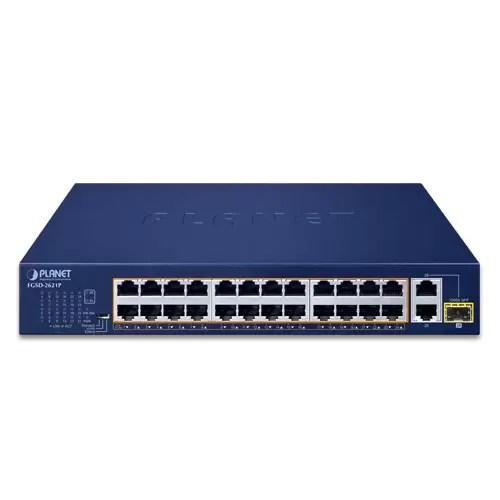

• Copper ports: 24 × 10/100BASE-TX PoE+ (ports 1-24), 2 × 10/100/1000BASE-T (ports 25-26, port 26 shared with SFP)
• SFP slot: 1 × 1000BASE-X SFP (shared with port 26)
• PoE budget: 185W; per-port output: 32W max (55V DC, 600mA)
• Switch fabric: 8.8Gbps; throughput: 6.5 Mpps
• Dimensions: 280 × 180 × 44 mm (1U); weight: 1870g

Key Features

This unmanaged Fast Ethernet PoE+ switch delivers a 185W budget across 24 ports, powering up to 24 devices at 7W, 12 at 15.4W, or 6 at 30W. A DIP switch offers three modes: Standard (100m), VLAN (port isolation), and Extend (250m at 10Mbps with 20W PoE) for remote camera deployments. PD alive check automatically recycles power to unresponsive devices.

Technical Context

The switch features 2 Gigabit uplink ports for NVR or backbone connectivity, plus 1 SFP slot for fiber uplinks up to 120km. It includes a 16K MAC table, jumbo frame support up to 16K bytes, and Energy-Efficient Ethernet (IEEE 802.3az). Housed in a 1U chassis (280 × 180 × 44 mm, 1870g) with one thermal fan, it supports desktop or rack-mount installation, operating from 0–50°C with 5–95% RH and storing from -10–70°C, backed by contact 6KV / air 8KV ESD and surge protection (differential ±4KV, common ±6KV).

Installation Notes

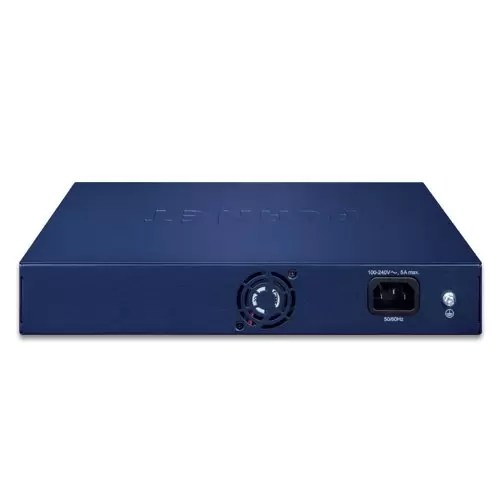

Powered by 100–240V AC at 5A, the switch consumes up to 217W max. LEDs indicate Power, PoE Max, per-port link/activity and PoE-in-Use, and SFP link/activity. The unit is TAA compliant, carries FCC Part 15 Class A and CE certifications, and includes a rackmount kit.
