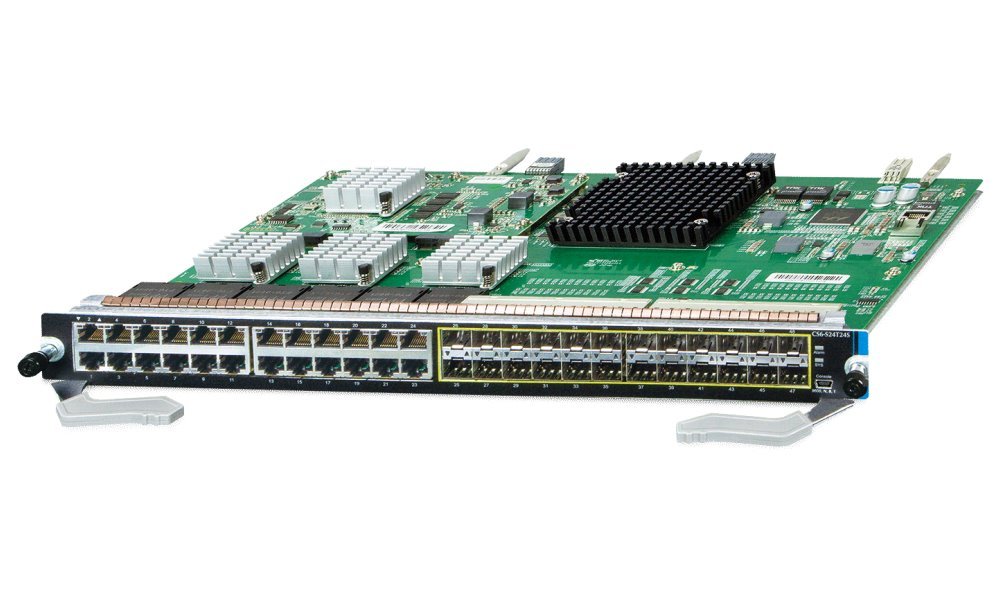

Planet - CS6-S24T24S - 24-Port 10/100/1000T + 24-Port 1000X SFP Switch Module for CS-6306R
Part number:
CS6-S24T24S
Price:
24-Port 10/100/1000T + 24-Port 1000X SFP Switch Module for CS-6306R
| Copper Ports | 24 x 10/100/1000BASE-T RJ45 ports |
| SFP/mini-GBIC Slots | 24 x 1000BASE-SX/LX SFP slots |
| Switch Fabric | 96Gbps |
| Throughput | 71Mpps@64bytes |
| LED | 1 x Alarm LED – Red. 1 x SYS LED – Green. LINK/ACT LED – Green. |
| Standards Compliance | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX/FX IEEE 802.3ab Gigabit 1000T IEEE 802.3z Gigabit SX/LX |
| Dimensions (WxDxH) | 400 x 300 x 41 mm |
| Weight KG (empty) | 2860g |
| CS-6306R Allowed Module Slots | Slots 1, 2, 3 and 4 |
