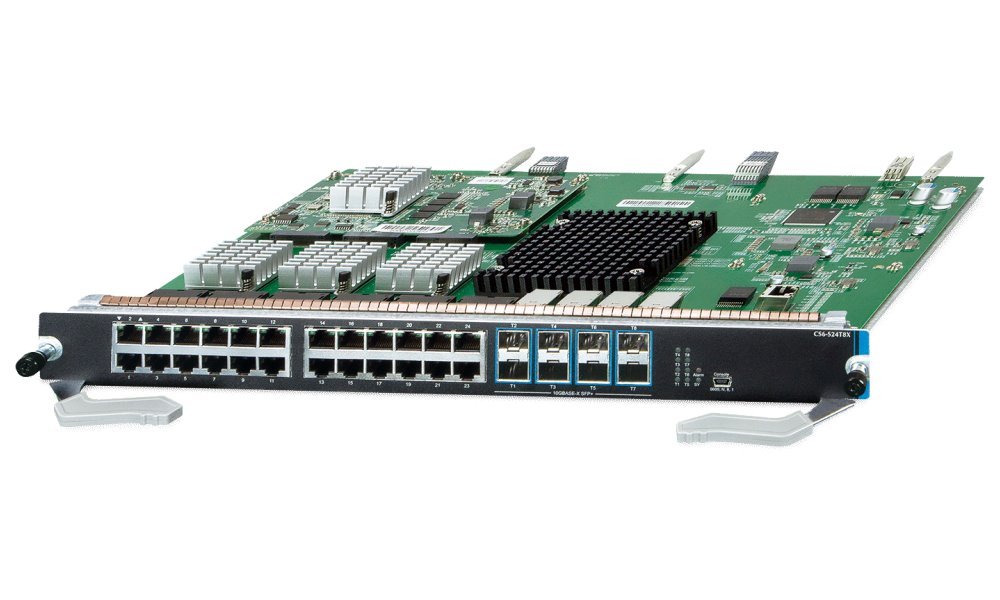

Planet - CS6-S24T8X - 24-Port 10/100/1000T + 8-Port 10G SFP+ Switch Module for CS-6306R
Part number:
CS6-S24T8X
Price:
24-Port 10/100/1000T + 8-Port 10G SFP+ Switch Module for CS-6306R
| Copper Ports | 24 x 10/100/1000BASE-T RJ45 ports |
| SFP+/mini-GBIC Slots | 8 x 1/10GBASE-SR/LR SFP+ slots |
| Switch Fabric | 208Gbps |
| Throughput | 154Mpps@64bytes |
| LED | 1 x Alarm LED – Red. 1 x SYS LED – Green. LINK/ACT LED – Green. |
| Standards Compliance | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab Gigabit 1000T IEEE 802.3z Gigabit SX/LX IEEE 802.3ae 10 Gigabit Ethernet |
| Dimensions (WxDxH) | 400 x 300 x 41 mm |
| Weight (empty) | 2800g |
| CS-6306R Allowed Module Slots | Slots 1, 2, 3 and 4 |
Name
Description
Size
Downloads
File
Quick Guide
1.9mb
