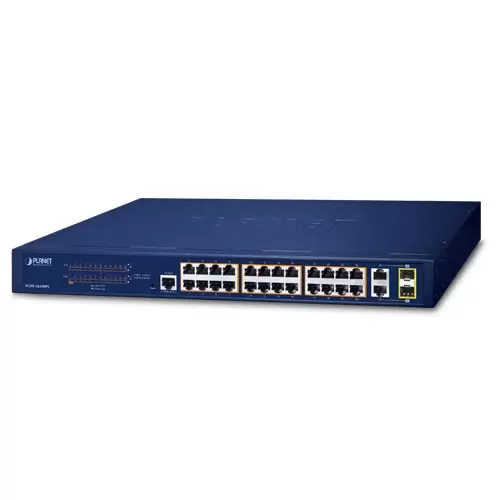

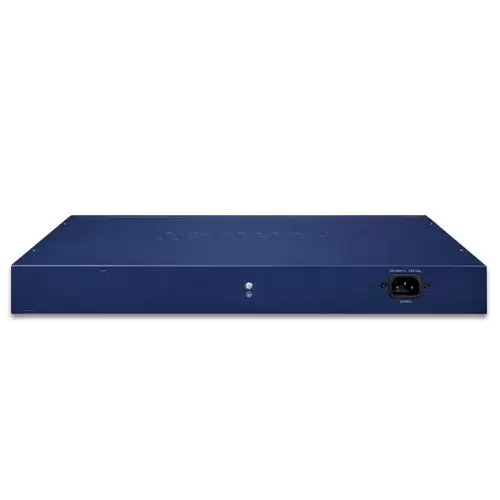

PoE Combo Managed Ethernet Switch
PLANET’s newly-revised FGSW-2624HPS Layer 2 PoE+ Managed Switch is designed for enterprises and industries where a network of PDs can be centrally managed. The Switch’s management functions have been enhanced to include intelligent PoE management, IPv6 management, ACL, GVRP, and more.
Cost-effective PoE Managed Switch for Small and Medium Networking
Particularly designed for the growing popular IP surveillance applications, the FGSW-2624HPS 802.3at PoE+ web smart switch is a surveillance switch with the central management of remote power control and IP camera monitoring. The FGSW-2624HPS / FGSW-2624HPS4 provides PoE functions along with 24 10/100BASE-TX ports featuring 30-watt 802.3at PoE with RJ45 copper interfaces and 2 Gigabit TP/SFP combo interfaces supporting high-speed transmission of surveillance images and videos. With a total power budget of up to 220 watts and 420 watts for different kinds of PoE applications, respectively, the FGSW-2624HPS provides a quick, safe and cost-effective Power over Ethernet network solution for small businesses and enterprises.
Centralized Power Management for Security and Public Service PoE Applications
To fulfill the needs of the high power consumption of PoE network applications, the FGSW-2624HPS features the standard IEEE 802.3at Power over Ethernet Plus (PoE+) that combines up to 30 watts of power output and data per port over one cat5E/6 Ethernet cable. It is designed specifically to meet the demand of the high power consumption of network PDs (powered devices) such as IR, PTZ, speed dome cameras; and even box-type IP cameras with built-in fan and heater. Compliant with both 802.3at and 802.3af standards, the series allows more flexibility in power requirement for a variety of PDs, making installation costs affordable.
Intelligent LED Indicator for Real-time PoE Usage

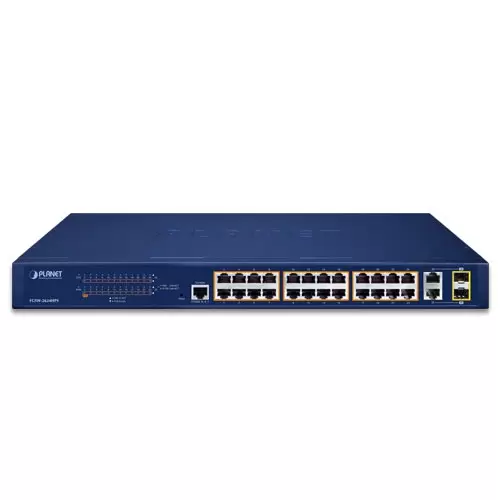

The FGSW-2624HPS helps users to monitor the current status of PoE power usage easily and efficiently with its advanced LED indication. Called PoE Power Usage found on the front panel of the FGSW-2624HPS Fast Ethernet PoE Switch, it has four orange LEDs indicating the range of the current PoE power usage.
Robust Layer 2 Features
The FGSW-2624HPS can be programmed for advanced switch management functions such as dynamic port link aggregation (LACP), Spanning Tree Protocol (STP), IGMP Snooping v1, v2, bandwidth control and L2/L4 security control. The FGSW-2624HPS provides IEEE 802.1Q tagged VLAN, port-based VLAN and MTU VLAN. The VLAN groups allowed will be maximally up to 32. Via aggregation of supporting ports, the FGSW-2624HPS allows the operation of a high-speed trunk combining multiple ports and supports fail-over as well.
Remote and Centralized Management
For catering to the need of easy management and centralized SNMP application to monitor the status of the switch and traffic per port, the FGSW-2624HPS provides friendly Web management interface for efficient network operation. With its built-in Web-based management, the FGSW-2624HPS offers an easy-to-use, platform-independent management and configuration facility. It also supports standard Simple Network Management Protocol (SNMP) and can be monitored via any standard-based management software.
Flexible and Extendable Uplink Solution
The FGSW-2624HPS provides 2 extra Gigabit TP/SFP combo interfaces supporting 10/100/1000BASE-T RJ45 copper to connect with surveillance network devices such as NVR, Video Streaming Server or NAS to facilitate surveillance management. Or through these fiber SFP slots, it can also connect with the 1000BASE-SX/LX SFP (Small Form-factor Pluggable) fiber transceiver to uplink to backbone switch and monitoring center in long distance. The distance can be extended from 550m to 2km (multi-mode fiber), even going up to 10/20/30/40/50/70/120km (single-mode fiber or WDM fiber). They are well suited for applications within the enterprise data centers and distributions.
The FGSW-2624HPS 802.3at PoE web smart switch is a surveillance switch with the central management of remote power control and IP camera monitoring.
Features:
- Ports: 24 10/100TX + 2 10/100/1000TX
- Type: Web Smart
- PoE Ports: 24
- Standards: 802.3at/af
- PoE Power Budget: Max. 220W 25°C, 190W@50°C
- Power Consumption: Max. 297W/1013.4BTU
- Throughput: 6.54Mpps 64 Bytes
- Operating Temperature: 0 to 50°C
- TAA Compliant
| Hardware Specifications | |
| 10/100Mbps Copper Ports | 24 10/100BASE-TX RJ45 auto-MDI/MDI-X ports |
| Gigabit Copper Ports | 2 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports |
| SFP/mini-GBIC Slots | 2 1000BASE-X SFP interfaces, shared with Port-25 to Port-26 |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 8.8Gbps / non-blocking |
| Throughput | 6.54Mpps@64Bytes |
| Address Table | 4K entries, automatic source address learning and aging |
| Shared Data Buffer | 2.75Mb embedded memory for packet buffers |
| Flow Control | IEEE 802.3x pause frame for full-duplex Back pressure for half-duplex |
| Maximum Transmit Unit | 1518 Bytes |
| Reset Button | < 5 sec: System reboot > 5 sec: Factory default |
| Dimensions (W x D x H) | 440 x 300 x 44.5 mm, 1U height |
| Weight | FGSW-2624HPS: 4142g FGSW-2624HPS4: 4566g |
| Power Consumption | FGSW-2624HPS: Max. 297 watts / 1013.4 BTU FGSW-2624HPS4: Max. 513 watts / 1750.4 BTU |
| ESD Protection | Contact Discharge 4KV DC Air Discharge 8KV DC |
| LED | FGSW-2624HPS: System: Power (Green) 10/100BASE-TX RJ45 Interfaces (Port 1 to Port 24): 10/100Mbps LNK/ACT (Green) PoE-in-Use (Orange) 10/100/1000BASE-T RJ45 / SFP Interfaces (Port 25 to Port 26): LNK/ACT (Green) 100/1000 (Green) PoE Usage 50W, 100W, 150W, 190W (Orange)FGSW-2624HPS4: System: Power (Green) 10/100BASE-TX RJ45 Interfaces (Port 1 to Port 24): 10/100Mbps LNK/ACT (Green) PoE-in-Use (Orange) 10/100/1000BASE-T RJ45 / SFP Interfaces (Port 25 to Port 26): LNK/ACT (Green) 100/1000 (Green) PoE Usage 100W, 200W, 300W, 400W (Orange) |
| Cable | Twisted-pair: – 10BASE-T: 2-pair UTP Cat 3, 4, 5 for up to 100 meters – 100BASE-TX: 2-pair UTP Cat 5, 5e for up to 100 meters – 1000BASE-T: 4-pair UTP Cat 5e, 6 for up to 100 metersFiber-optic Cable: – 1000BASE-SX: 50/125m or 62.5/125m multi-mode fiber-optic cable, up to 550m (varying on SFP module) – 1000BASE-LX: 9/125m single-mode fiber optic cable, up to 10/20/30/40/50/70/120 kilometers (varying on SFP module) |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3af / 802.3at PoE / PSE |
| PoE Power Supply Type | End-span |
| Power Pin Assignment | 1/2(+), 3/6(-) |
| PoE Power Output | FGSW-2624HPS: Per Port 52V DC, Max. 30.8 watts FGSW-2624HPS4: Per Port 54V DC, Max. 30.8 watts |
| PoE Power Budget | FGSW-2624HPS: – 220 watts (max.) @ 25 degrees C – 190 watts (max.) @ 50 degrees C FGSW-2624HPS4: – 420 watts (max.) @ 25 degrees C – 420 watts (max.) @ 50 degrees C |
| PoE Ability | FGSW-2624HPS: – PD @ 7 watts: 24 units – PD @ 15.4 watts: 14 units – PD @ 30 watts: 7 units FGSW-2624HPS4: – PD @ 7 watts: 24 units – PD @ 15.4 watts: 24 units – PD @ 30 watts: 14 units |
| Layer 2 Functions | |
| Port Configuration | Port disable / enable Auto-negotiation 10/100/1000Mbps full and half duplex mode selection Flow Control disable / enable |
| Port Status | Display each ports speed duplex mode, link status, flow control status, auto negotiation status and trunk status |
| Port Mirroring | TX / RX / Both Many-to-1 monitor |
| VLAN | 802.1Q tagged-based VLAN, up to 32 VLAN groups, out of 4094 VLAN IDs Port-based VLAN, up to 26 VLAN groups MTU VLAN |
| Link Aggregation | 1 group of 2-Port 10/100/1000BASE-T trunk supported |
| QoS | Allows to assign low / high priority on each port First-In-First-Out, All-High-before-Low, Weight-Round-Robin QoS policy |
| IGMP Snooping | IGMP (v1 / v2) Snooping, up to 32 multicast groups Without Query supported |
| Security Control | MAC address binding TCP & UDP filter |
| Management Functions | |
| Basic Management Interfaces | Web browser, SNMP v1 |
| Standards Conformance | |
| Regulation Compliance | FCC Part 15 Class A, CE |
| Standards Compliance | IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3z Gigabit Ethernet over Fiber-Optic IEEE 802.3x Full-duplex flow control IEEE 802.1Q VLAN IEEE 802.1p QoS IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus |
| Environment | |
| Operating | Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Storage | Temperature: -10 ~ 70 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
