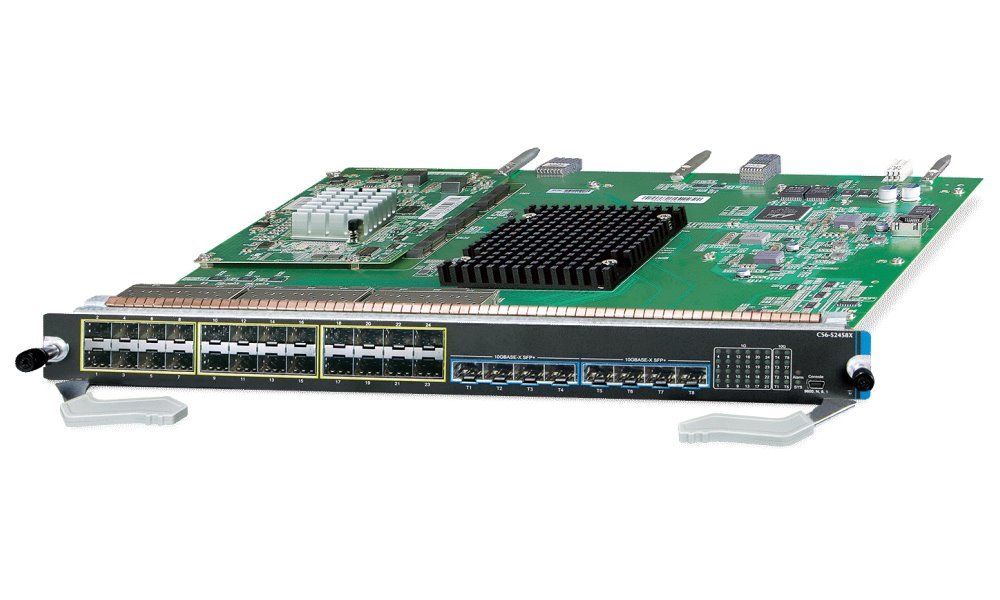

Planet - CS6-S24S8X - 24-Port 1000X SFP + 8-Port 10G SFP+ Switch Module for CS-6306R
Part number:
CS6-S24S8X
Price:
24-Port 1000X SFP + 8-Port 10G SFP+ Switch Module for CS-6306R
| SFP/mini-GBIC Slots | 24 x 100/1000BASE-SX/LX SFP slots |
| SFP+/mini-GBIC Slots | 8 x 1/10GBASE-SR/LR SFP+ slots |
| Switch Fabric | 208Gbps |
| Throughput | 154Mpps@64bytes |
| LED | 1 x Alarm LED – Red. 1 x SYS LED – Green. LINK/ACT LED – Green. |
| Standards Compliance | IEEE 802.3u 100BASE-FX IEEE 802.3z Gigabit SX/LX IEEE 802.3ae 10 Gigabit Ethernet |
| Dimensions (WxDxH) | 400 x 300 x 41 mm |
| Weight (empty) | 2629g |
| CS-6306R Allowed Module Slots | Slots 1, 2, 3 and 4 |
