Name: TRENDNET - TEG-S24D - 24-port Gigabit GREENnet Switch
Brand: Trendnet
SKU: TEG-S24D

Home — Brands — Trendnet — Switches —

TRENDNET - TEG-S24D - 24-port Gigabit GREENnet Switch

Part number:

TEG-S24D

Price:

Dealers only

Add to Quote/Project Registration

Description Specifications Downloads

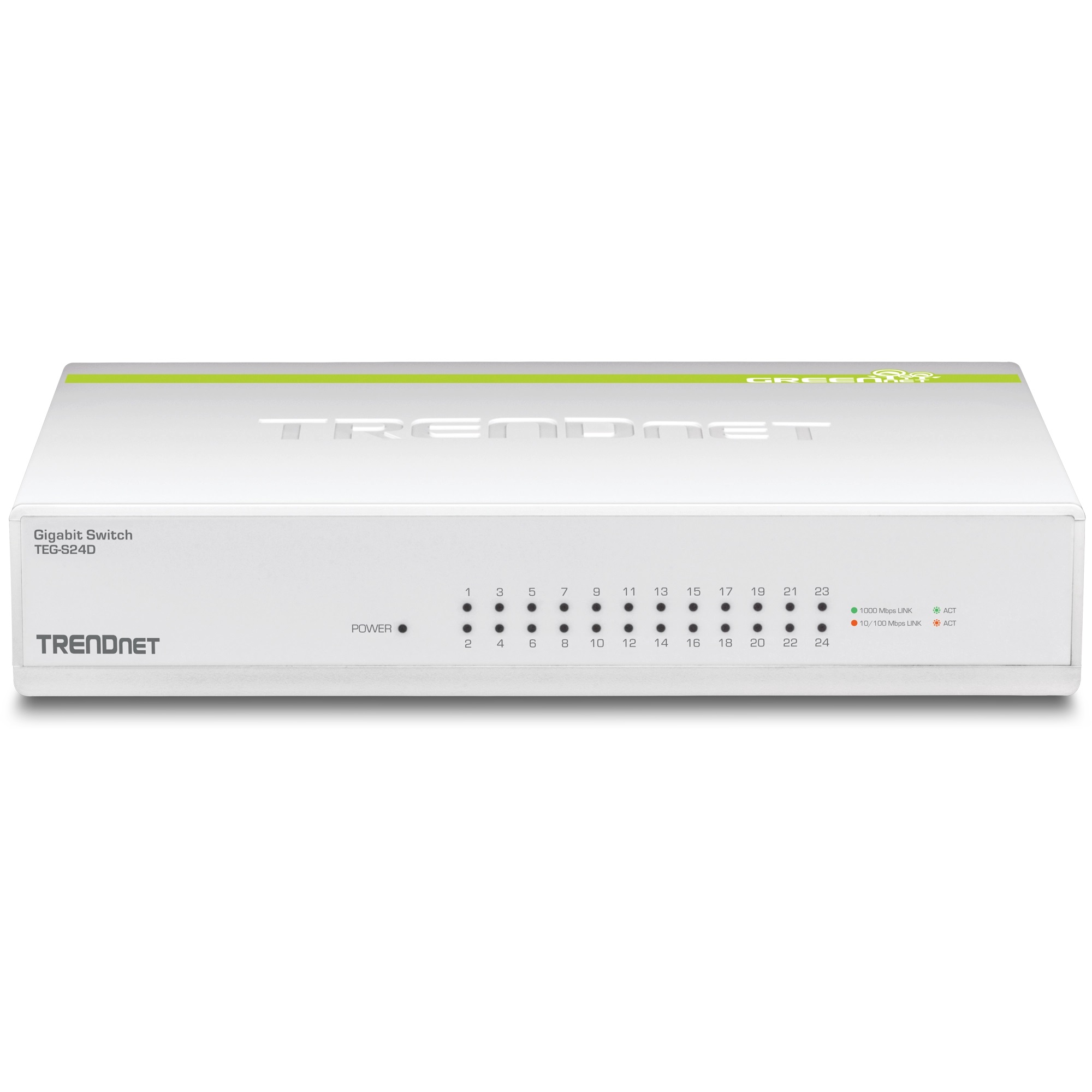

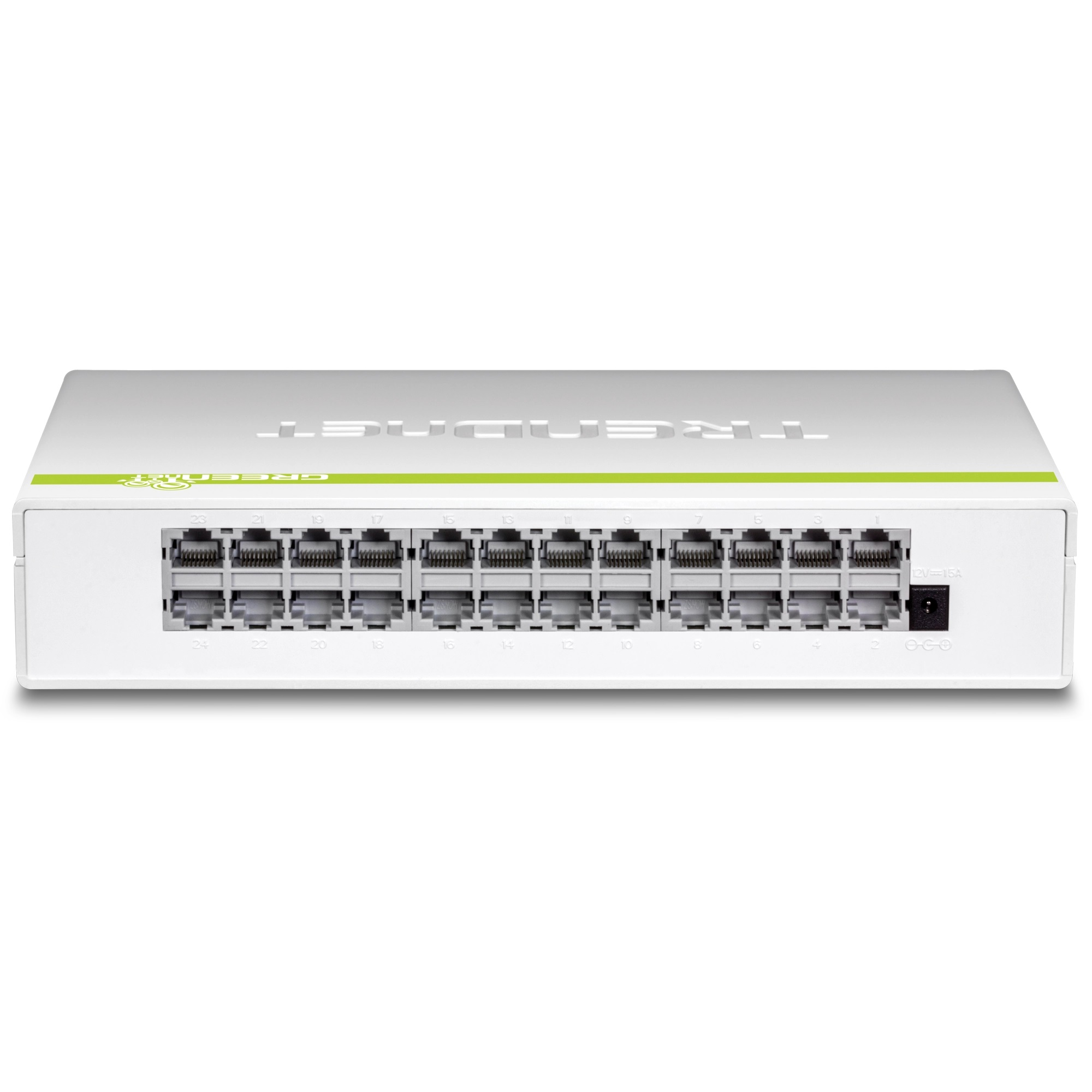

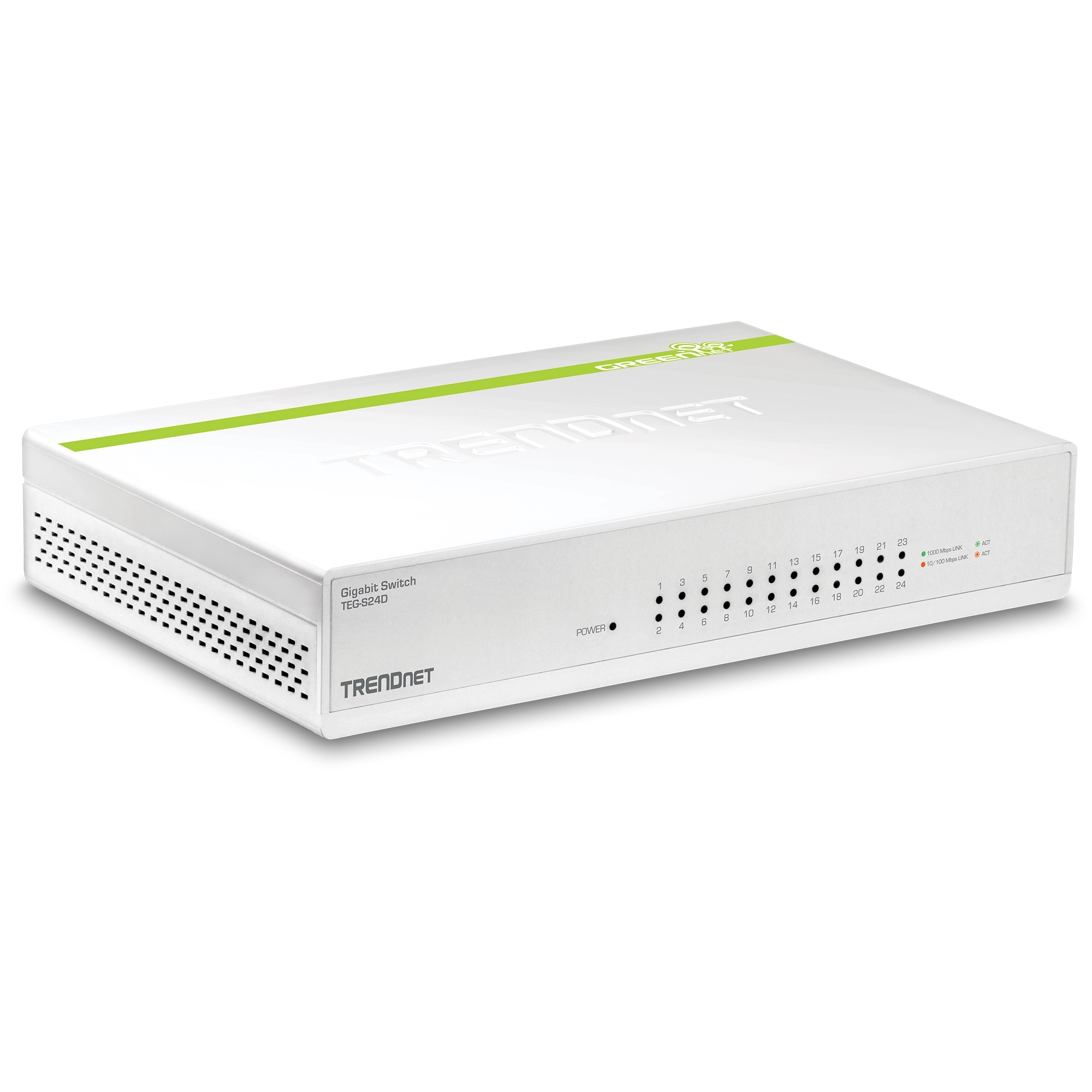

TRENDnet's 24-Port Gigabit GREENnet Switch, model TEG-S24D, provides performance, proven reliability, and reduced power consumption. Embedded energy saving GREENnet technology works right out of the box with no management required. This fanless unmanaged desktop switch offers a total switching capacity of 48 Gbps and 802.1p Quality of Service traffic prioritization pass-through support.

Features:

24 x Gigabit ports
Quality of Service traffic prioritization pass-through support (802.1p QoS)
48 Gbps switching fabric
Jumbo Frame support
Fanless design
GREENnet energy saving technology
NDAA / TAA compliant (U.S. and Canada only)

Standards	IEEE 802.1p IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3ab IEEE 802.3az
Device Interface	24 x Gigabit ports LED indicators Power port
Data Transfer Rate	Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex) Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex) Gigabit Ethernet: 2000 Mbps (full duplex)
Performance	Switch fabric: 48 Gbps Ram buffer: 512 KB MAC Address Table: 8K entries Jumbo Frames: 9 KB
Special Feature	Supporting 802.1p QoS packet prioritization Up to 40% GREENnet energy savings Input: 100 - 240 V AC, 50/60 Hz, 0.8 A Output: 12 V DC, 1.5 A Consumption: 12 Watts (Max)
MTBF	2,344,449 hours
Temperature	Operating: 0 – 40 °C (32 - 104 °F)
Operating Humidity	Max. 90% non-condensing
Dimensions	251 x 158 x 48 mm (9.9 x 6.2 x 1.9 in.)
Weight	1.6 kg (3.5 lb.)
Certifications	CE FCC
Warranty	3 year limited

PACKAGE CONTENTS

TEG-S24D
Quick Installation Guide
Power adapter (12 V DC, 1.5 A)
