Name: TRENDNET - TEG-S25 - 24-port Gigabit Switch(Rack Mount)
Brand: Trendnet
SKU: TEG-S25

Home — Brands — Trendnet — Switches —

TRENDNET - TEG-S25 - 24-port Gigabit Switch(Rack Mount)

Part number:

TEG-S25

Price:

Dealers only

Add to Quote/Project Registration

Description Specifications Downloads

The 24-Port Gigabit Switch, model TEG-S25, provides high bandwidth performance, ease of use, and reliability. Boost office network efficiency and eliminate network congestion with gigabit speeds and a total switching capacity of 48Gbps with full-duplex mode. A built-in universal power supply reduces cable clutter and diagnostic LEDs help with network troubleshooting. Plug and play this sturdy metal switch for reliable high-speed network connectivity.

Features:

24 x Gigabit RJ-45 ports
Sturdy metal switch
Built-in power supply
48Gbps forwarding capacity
Fanless design
1U 19” rackmount brackets included
NDAA / TAA compliant (U.S. and Canada only)
Lifetime Warranty

Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3ab
Device Interface	24x Gigabit ports LED indicators
Data Transfer Rate	Ethernet: 10Mbps (half duplex), 20Mbps (full duplex) Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex) Gigabit: 2000Mbps (full duplex)
Performance	Switching Capacity: 48Gbps RAM Buffer: 512KB MAC Address Table: 8K entries Forwarding Rate: 35.71Mpps (64-byte packet size) Jumbo Frames: 9KB
Special Features	Rack Mountable
Power	Internal power supply: 100 – 240V AC, 50/60 Hz, 1A Max. Consumption: 14.24W
Fan/Acoustics	Fanless design
MTBF	364,460 hours
Operating Temperature	0° – 40° C (32° – 104° F)
Operating Humidity	Max. 90% non-condensing
Dimensions (L x W x H)	440 x 130 x 44mm (17.32 x 5.12 x 1.73 in.)
Weight	1.73kg (3.81 lbs.)
Certifications	FCC CE ETL
Warranty	Lifetime Warranty*

PACKAGE CONTENTS

TEG-S25
Quick Installation Guide

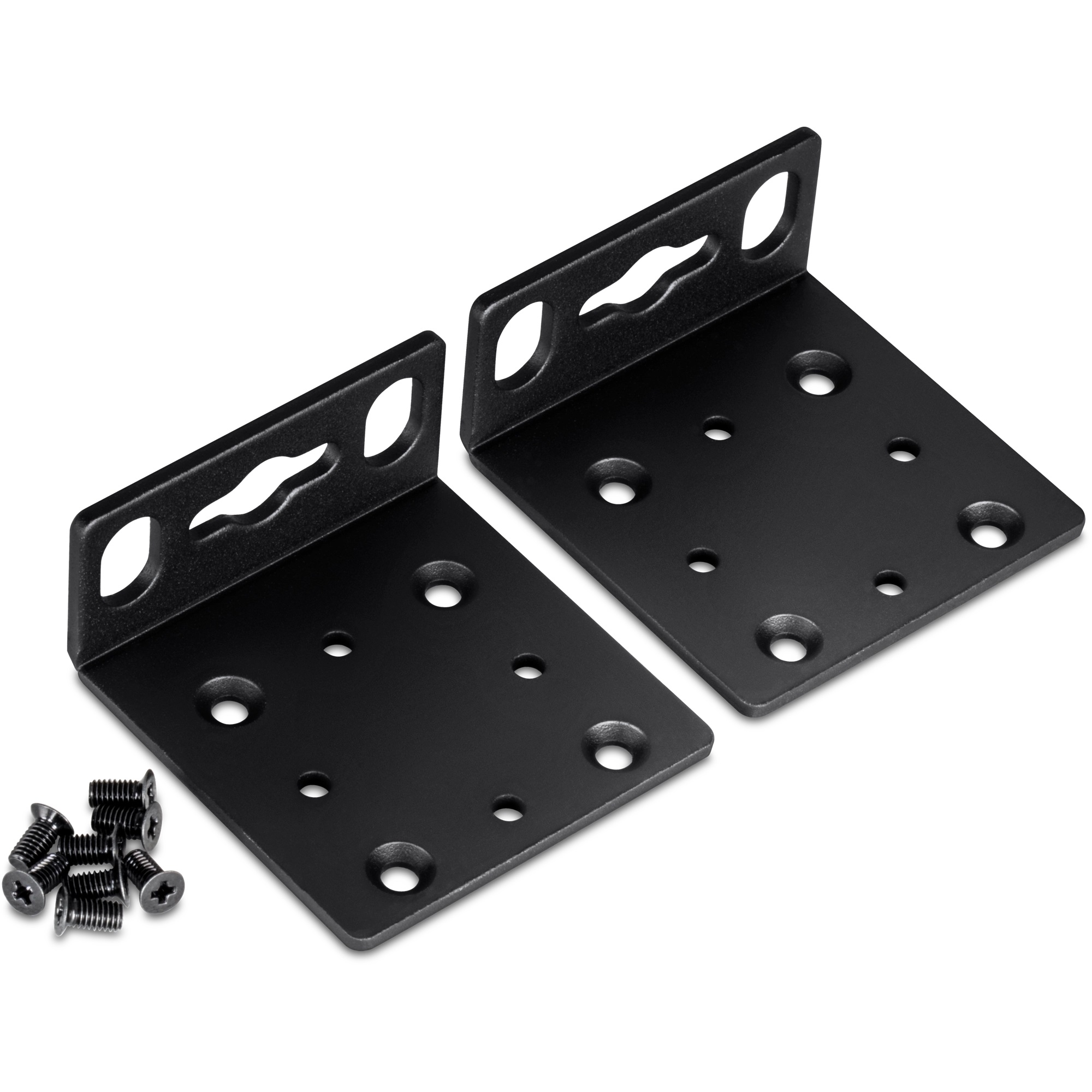

Rack Mount Kit
Power Cord (1.5m / 4.9 ft.)

Name

Description

Size

Downloads

File

Datasheet

0.6mb
