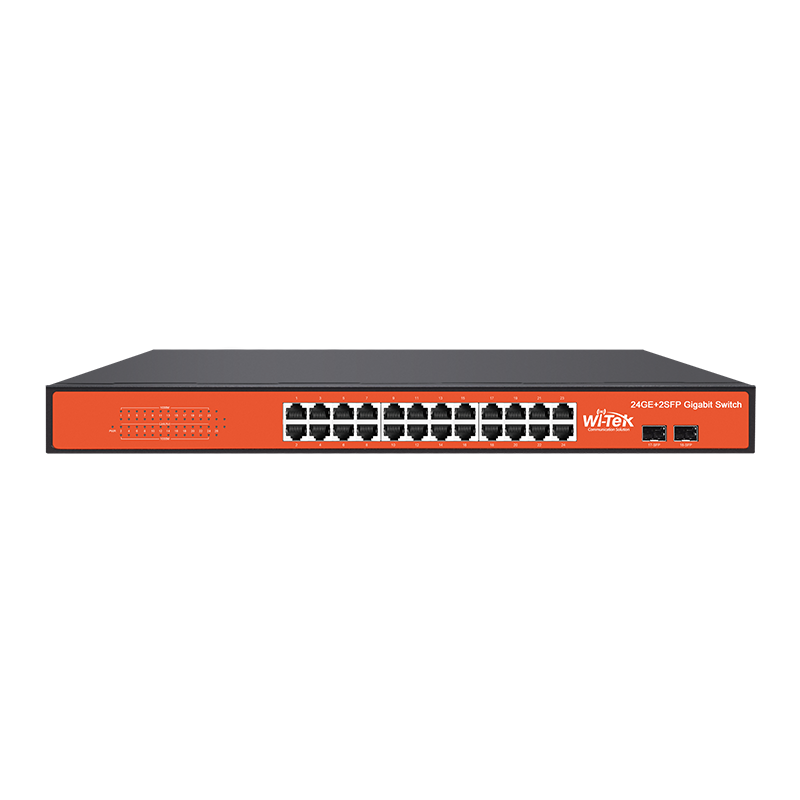

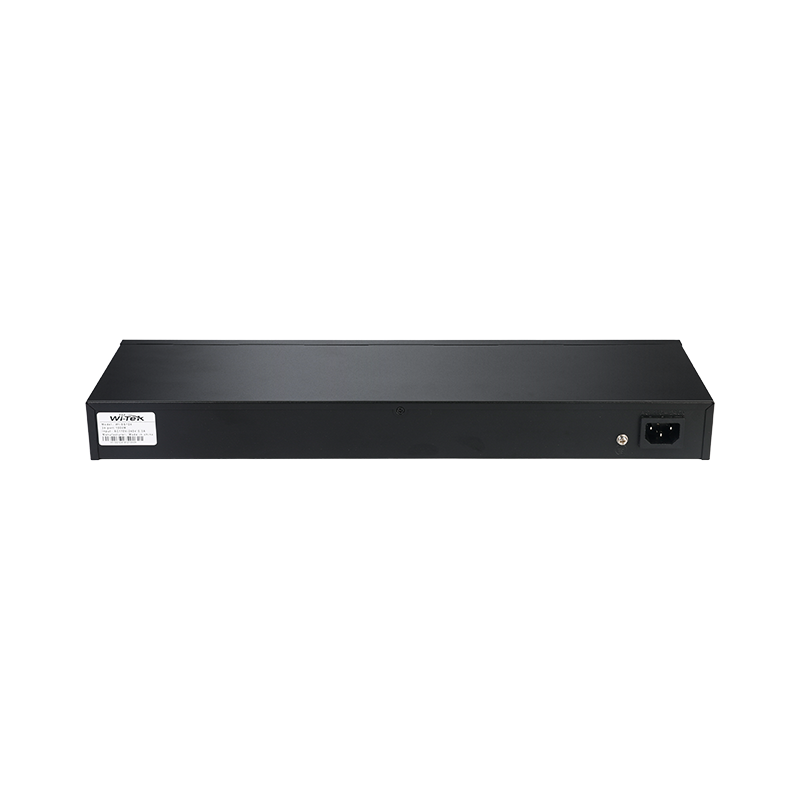

Wi-Tek - WI-SG124F - 24GE+2SFP Full Giga rack-mountable Ethernet Switch
Part number:
WI-SG124F
Price:
24GE+2SFP Full Giga rack-mountable Ethernet Switch
Features:
- 24 100/1000Mbps RJ45 Ethernet ports
- 2 1000Mbps SFP slots
- Plug and play, zero configuration
- Supports desktop or wall mount replacement
- Smart DIP Switch: Port VLAN mode, video priority mode
- Energy efficient design compliant with IEEE802.3az
- Silent operation ideal for noise sensitive environment
| HARDWARE FEATURES | WI-SG124F |
| Standards | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p |
| Interface | 24 100/1000Mbps RJ45 Ports |
| 2 100/1000Mbps SFP Slots | |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) |
| 100BASE-TX/1000Base-T: UTP category 5, 5e, 6 or above cable (maximum 100m) | |
| 1000BASE-X: MMF, SMF 1000Base-L X:62.5μm/50μm MM(2m~550m) or 10μm SMF(2m~5000m) | |
| DIP Switch | Default / VLAN / CCTV |
| Fan Quantity | Fanless |
| Exchange Capacity | 52G |
| Packet Forwarding Rate | 38.6Mpps |
| Mac Address Table | 8K |
| Power Adapter | AC IN: 110-240V |
| Packet Buffer Memory | 12Mb |
| Jumbo Frame | 10240 Bytes |
| Port VLAN | No |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Dimension | 510×220×90 mm |
| Switch Dimension | 440×140×45 mm |
| Gross Weight | 2.17kg |
| Net Weight | 1.58kg |
| Package Contents | 1 × Gigabit Switch |
| 1 × Power Cord | |
| 1 × Quick Installation Guide | |
| 1 x Rack-mount Kit | |
| 1 x Foot Pad | |
| Working Temperature | -10℃～55℃ |
| Storage Temperature | -40℃～70℃ |
| Working Humidity | 10%～90% RH |
| non-condensing | |
| Storage Humidity | 5%～90% RH non-condensing |
