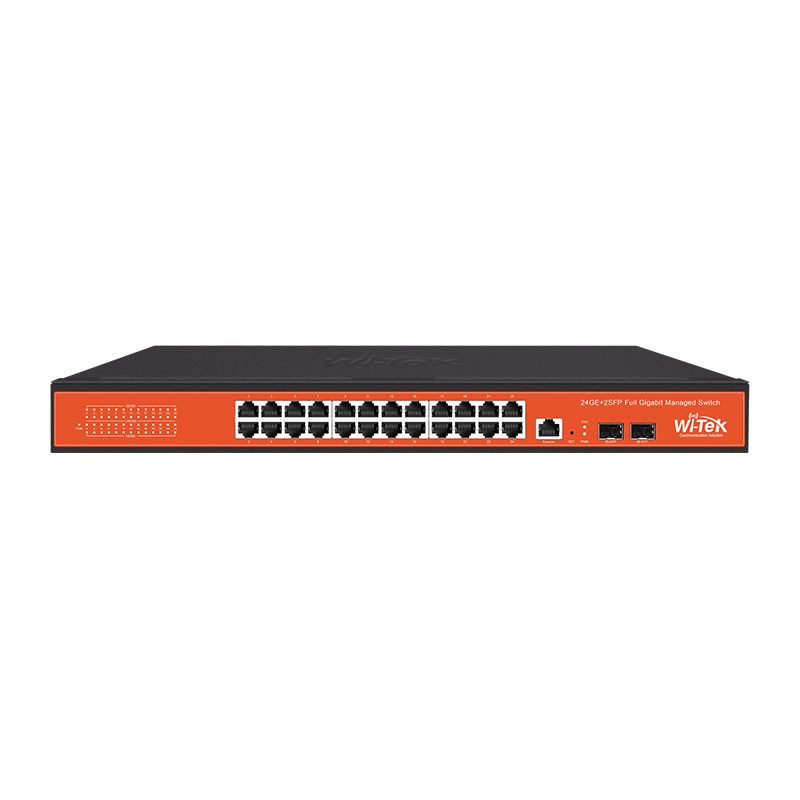

Wi-Tek - WI-MS326GF - 24GE+2SFP uplink Full Giga SNMP Managed Ethernet Switch
Part number:
WI-MS326GF
Price:
24GE+2SFP uplink Full Giga SNMP Managed Ethernet Switch
Features:
- 24GE+2SFP uplink Full Giga SNMP Managed Ethernet Switch
- Surveillance QVLAN support to easily segment IP Camera security traffic
- Management via Web-Based GUI
- Support for Quality of Service to prioritize time sensitive traffic
- Support IGMP Snooping,Link Aggregation,Port Mirroring and Loop Prevention
| Hardware Specifications | |
| Interface | 24x10/100/1000Mbps RJ45 Ports 2x1000Mbps SFP Slots 1xConsole Port |
| Port Standard | IEEE 802.3 i:10BASE-T Ethernet; IEEE 802.3 u:100BASE-X Fast Ethernet; IEEE 802.3ab:1000BASE-T Gigabit Ethernet; IEEE 802.3z:1000BASE-X Gigabit Ethernet(Optical fiber) |
| Power Supply | AC 110~240V 50/60HZ |
| power consumption | 25W |
| Switching Capacity | 52Gbps |
| Packet Forwarding Rate | 38.7Mpps |
| Jumbo Frame | 16KB |
| MAC Address Table | 16K |
| Dimensions ( W x D x H ) | 440mm*290mm*45mm |
| Fan Quantity | Fanless |
| Protection Level | Common Mode ± 6KV, Differential Mode ± 4KV |
| Electrostatic Standard | Contact 6KV Air 8KV |
| Transmission Mode | Store— Forward |
| Installation | Rack- Mounted |
| Software Features | |
| Spanning Tree | IEEE 802.1D - STP |
| IEEE 802.1w - RSTP | |
| IEEE 802.1s - MSTP | |
| Reliability | Port Loop Detection |
| EAPS | |
| ERPS | |
| LLDP/LLDP-MED | |
| UDLD | |
| VLAN | Max 4K VLAN Groups |
| 802.1q Tagged VLAN | |
| MAC-Based VLAN | |
| IP-Based VLAN | |
| QinQ | |
| Protocol- Based VLAN | |
| Voice VLAN | |
| Port | LACP |
| Port Shutdown | |
| Jumbo Frame | |
| Port mirroring( One-to-One Many-to-One Tx/Rx/Both) | |
| Link Aggregation( Up to 8 aggregation groups and up to 8 ports per group) | |
| Security | IP-MAC-Port Binding |
| IEEE802.1x AAA | |
| Support Static and Dynamic ARP | |
| RADIUS/TACACS+ | |
| RADIUS | |
| Port Isolation | |
| Port Based Authentication | |
| Secure Command Line Interface (CLI) Management With SSHv1/SSHv2 | |
| Broadcast/Multicast/Uni-cast Storm Control | |
| Port MAC Address Filtering | |
| DHCP Snooping | |
| Access Control List | Standard IP-Based ACL |
| Extended IP Based ACL | |
| MAC IP-Based ACL | |
| MAC ARP-Based ACL | |
| IPv6-Based ACL | |
| ACL Port Filtering | |
| Time-Based ACL | |
| QoS | Port-Based (uplink and downlink traffic of a single port can be restricted) |
| 802.1p-Based Classification | |
| Support WRR, SP, WFQ | |
| DISC-Based Classification | |
| ACL-Based Classification | |
| L2 Multicast | IGMP Snooping v1/v2/v3 |
| MLDS nooping | |
| MVR | |
| IPV6 | IPv6 Neighbor Discovery |
| Support manual address configuration, stateless address auto-configuration and tasteful address configuration obtained through DHCPv6 client | |
| IPv6 TFTP | |
| IPv6 SNMP | |
| ICMPv6 | |
| IPv6 Path MTU Discovery | |
| IPv6 SSH | |
| Management | Web-Based GUI |
| Command Line Interface (CLI) through console port, telnet and SSH | |
| SNMPv1/v2c/v3 Trap/Inform RMON (1, 2, 3, 9) groups | |
| Password Recovery | |
| SNTP | |
| System Log | |
| Traceroute | |
| Ping | |
| CPU Monitoring | |
| Firmware Upgrade | |
| Configuration Export/Import | |
| Support SNTP Based IPv4 and IPv6 | |
| DHCP/BOOTP Client | |
