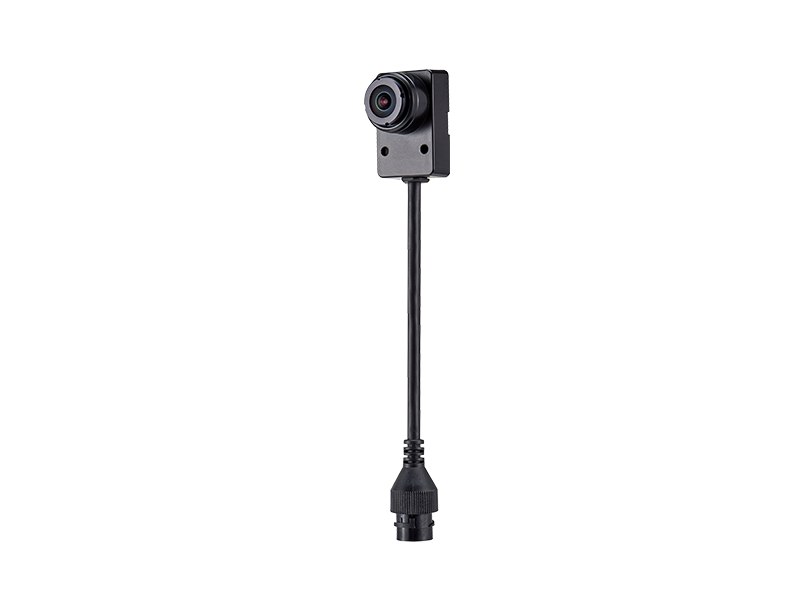

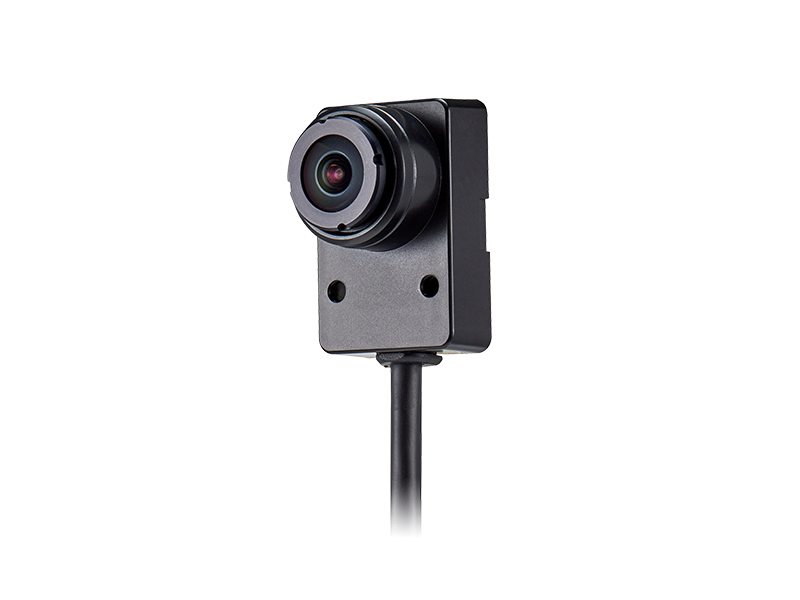

Hanwha - SLA-T2480VA - 2.4Mm Fixed Lens Module
Part number:
SLA-T2480VA
Price:
2.4mm fixed lens module, compatible with PNM-9000QB and XNB-6002, right angle body style, 2MP @ 30fps, 0.45 Lux, 138º horizontal field of view, 8 meters/ 26 feet cable
Features :
- Color: 0.045Lux(F2.0, 1/30sec)
- 2.4mm fixed focal
- Compatible with PNM-9000QB
| Imaging Device | 1/2.8" 2MP CMOS |
| Min. Illumination | Color: 0.045Lux(F2.0, 1/30sec) |
| Lens | |
| Focal Length (Zoom Ratio) | 2.4mm fixed focal |
| Max. Aperture Ratio | F2.0 |
| Angular Field of View | H: 138°, V: 73°, D: 165° |
| Mount Type | RJ12 connected with main unit |
| Focus Control | fixed |
| Mechanical | |
| Color / Material | Black / Plastic, Metal |
| Product dimensions / weight | W30xH27.9xD45mm, 328g |
