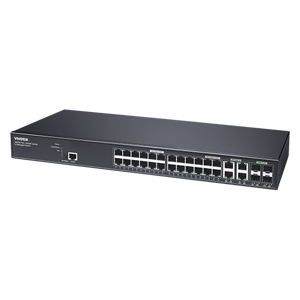

Vivotek - AW-GEV-288A-370 - 24xGbE PoE + 4xGbE VIVOCAM L2 Managed PoE Switch, 370W
Vivotek - AW-GEV-288A-370 - 24xGbE PoE + 4xGbE VIVOCAM L2 Managed PoE Switch, 370W
Part number:
AW-GEV-288A-370
Price:
Dealers only
Add to Quote/Project Registration
Description Specifications Downloads

4xGbE bt 90W PoE + 20xGbE 30W PoE + 4xGbE Combo VIVOCAM L2 Managed PoE Switch



Features:

  • Topology View, Floor View, Map View
  • Traffic Monitor
  • Device List
  • DHCP Server
  • Non-Stop PoE
  • 802.3 af/at/bt Hybrid, bt PoE Port Max. 90W
  • Extended PoE Mode up to 250M
ModelAW-GEV-288A-370
Product Description24xGbE PoE + 4xGbE Combo VIVOCAM L2 Managed PoE Switch
Port Configuration
Gigabit RJ45 Port  24
Gigabit Combo Port  4
Total Ports  28
Console Port  1
HW Performance
Switching Bandwidth 56 Gbps
Forwarding Capacity 41.7 Mpps
MAC Address 8K
Jumbo Frames 9216 Bytes
Surveillance Features
Auto Search VIVOTEK Device up to 256 pcs
PoE Reboot V
Surveillance Device Management List V
DHCP Server Function V
VIVOTEK Device Account/Password Setting V
VIVOTEK Device Grouping Setting for VLAN V
VIVOTEK Device Name Edit V
VIVOTEK Camera/Video Server Reboot/Restore Default V
VIVOTEK Device Re-direct Link V
VIVOTEK Device On/Off Line Status V
E-Map View
Topology View V
Floor View V
Google Map View V
Maintenance
VIVOTEK Camera/Video Server Configuration File Export/Import V
Floor Image Management V
Export Surveillance Management Device List V
Cable Diagnostics V
Traffic Monitoring V
Lite Managed Features
Spanning Tree
IEEE802.1D (STP) V
IEEE802.1w (RSTP) V
IEEE802.1s (MSTP) V
Trunking

IEEE802.1d (LACP) V
Static Aggregation V
VLAN
802.1Q Tag-based VLAN 4096 VLAN IDs
Port-based VLAN V
Private VLAN Edge (PVE) V
GARP VLAN V
Q-in-Q (Double Tag) V
Protocol-based VLAN V
MAC-based VLAN V
Voice VLAN V
IP Subnet-based VLAN V
Multicast VLAN Registration (MVR) V
IGMP Snooping (v1/v2) V
DHCP Relay V
MLD v1/v2 Snooping V
Network
IPv4/IPv6 V
QoS Feature
Hardware Queues 8
Classification V
Port Based V
802.1p V
Rate Limiting
Ingress V
Egress V
Per Port V
Priority Queue Scheduling
WRR V
DSCP & Class of Service V
Security
IEEE802.1x
RADIUS Authentication V
IGMP-RADIUS Based V
Secure Sockets Layer (SSL) V
Port Security V
IP Source Guard V
Storm Control V
Layer 2 Isolation Private VLAN Edge (PVE) V
RADIUS/TACACS+ V
Loop Detection V
DHCP Snooping V
ACLs
Up to 384 Entries V
Source and Destination MAC, VLAN ID or IP Address, Protocol, Port V
(DSCP) / IP Precedence V
TCP/ UDP source and destination ports V
802.1p priority V
ICMP Packets V
Ethernet type V
TCP flag V
Management
SNMP (v1, v2c, v3) V
RMON (1,2,3 & 9 groups) V
DHCP Server & Client V
Port Mirroring V
UPnP V
LLDP (IEEE802.1ab) V
LLDP-MED V
S-Flow V
Firmware Upgrade V
NTP V
PoE Management
PoE On/Off Control  V
PoE Alive Checking for PD  V
PoE Scheduling  V
Power Delay  V
Non-Stop PoE V
Extended PoE Mode (up to 250m/10mbps) V
PoE Function
IEEE 802.3af/at/bt PoE Standard Compliant V
Number of PoE Output Port 24
PoE Output Power Port 1-20 at 30W
 Port 21-24 bt 90W
Totoal PoE Power Budget 370 W
PoE Pin Assignment Port 21-24 bt: 4 pairs 1/2 (+), 3/6 (-) and 4/5 (+), 7/8 (-)
 Port 1-20 af/at: 2 pairs 1/2 (+), 3/6 (-)
Environmental Specifications
Operating Temperature -10°C ~ 50°C (14°F ~ 122°F)
Storage Temperature -20°C ~ 70°C (-4°F ~ 158°F)
Operating Humidity 10 ~ 90% RH
Mechanical Specifications
Dimensions 442 (W) x 44 (H) x 211(D) mm
Weight 1.95 kg
Power Source
AC Input 100V ~ 240V
Frequency 50 ~ 60 Hz
Certifications
Certifications UL, CE, UKCA, FCC, VCCI, LVD, ICES
Warranty
Warranty 24 months
Accessories
Included Accessories Power Cord, QIG, CD Manual, Rack Mount Kit
