TRENDnet’s Industrial Gigabit PoE+ DIN-Rail Switches feature a rugged IP30 rated metal enclosure. These Industrial Unmanaged PoE+ Switches are designed to withstand a high degree of vibration and shock, while operating in both high and low temperatures for industrial environments within -40° – 75° C (-40° – 167° F). Redundant power inputs with overload current protection on each industrial unmanaged PoE+ switch minimizes network downtime.

Installers and integrators can save on equipment costs and reduce installation time with TRENDnet’s Industrial Gigabit PoE+ Switches by delivering up to 30W per port of PoE power and data over existing Ethernet cables. With PoE technology, users only need one set of cables to deliver both data and power from the industrial unmanaged PoE+ switch. With these industrial unmanaged PoE+ switches, easily network PoE devices, such as high-power wireless access points, PTZ and other advanced IP cameras, VoIP phone systems, IPTV decoders, access controls, and more.

Industrial Applications

Networks devices for manufacturing, general industrial, warehousing, surveillance, and corporate applications.

PoE+ Power

Provides full PoE+ (30 watts) per port for devices such as access points, cameras, access control equipment, and more.

Extreme Environments

Hardened IP30 switch, with a -40 to 75 ºC (-40 to 167 ºF) operating temperature range, functions in most environments.

Features:

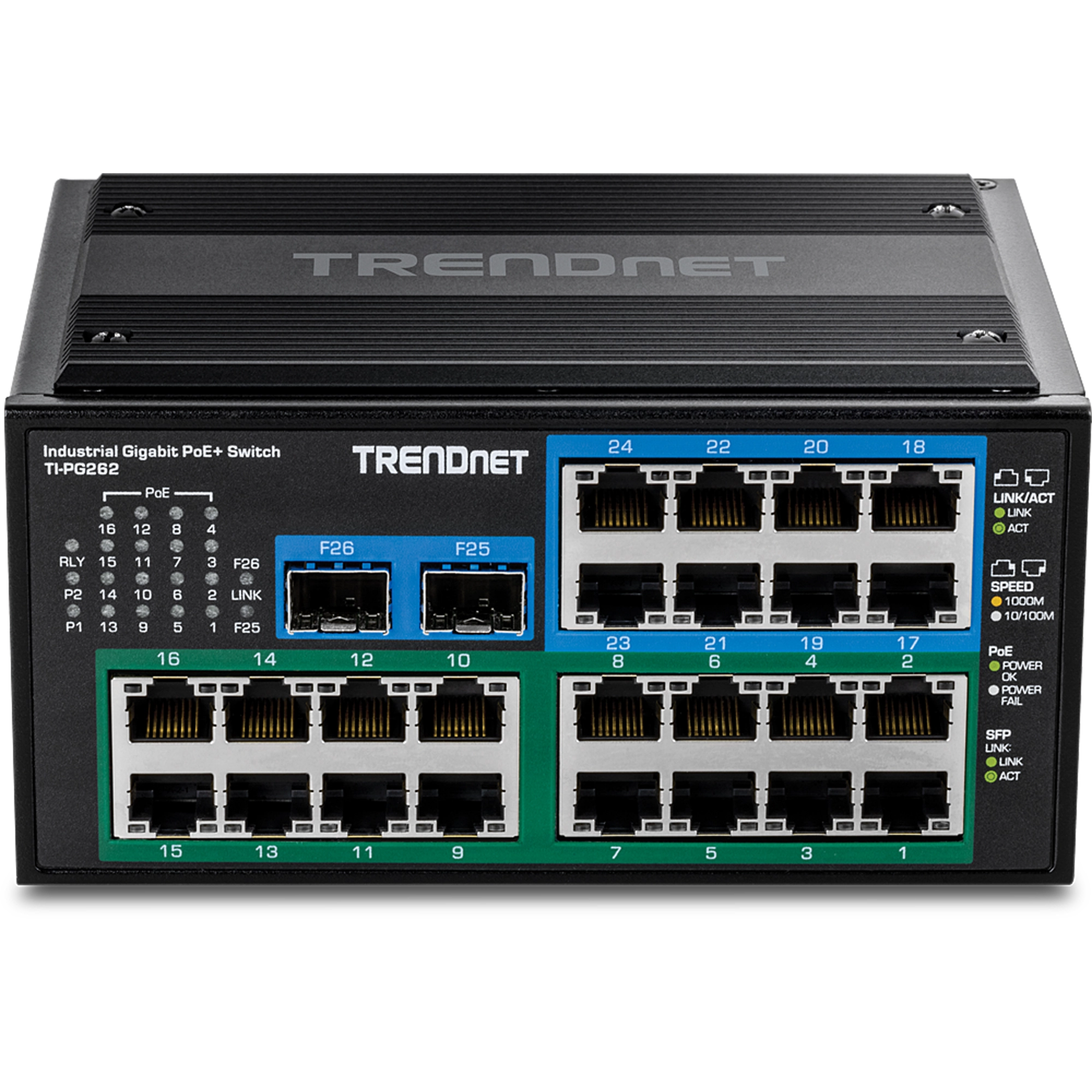

• 16 x Gigabit PoE+ ports
• 8 x Gigabit ports
• 2 x 100/1000Mbps SFP ports
• Up to a 480 watt full PoE+ power budget
• 52Gbps switching capacity
• Hardened IP30 rated metal switch

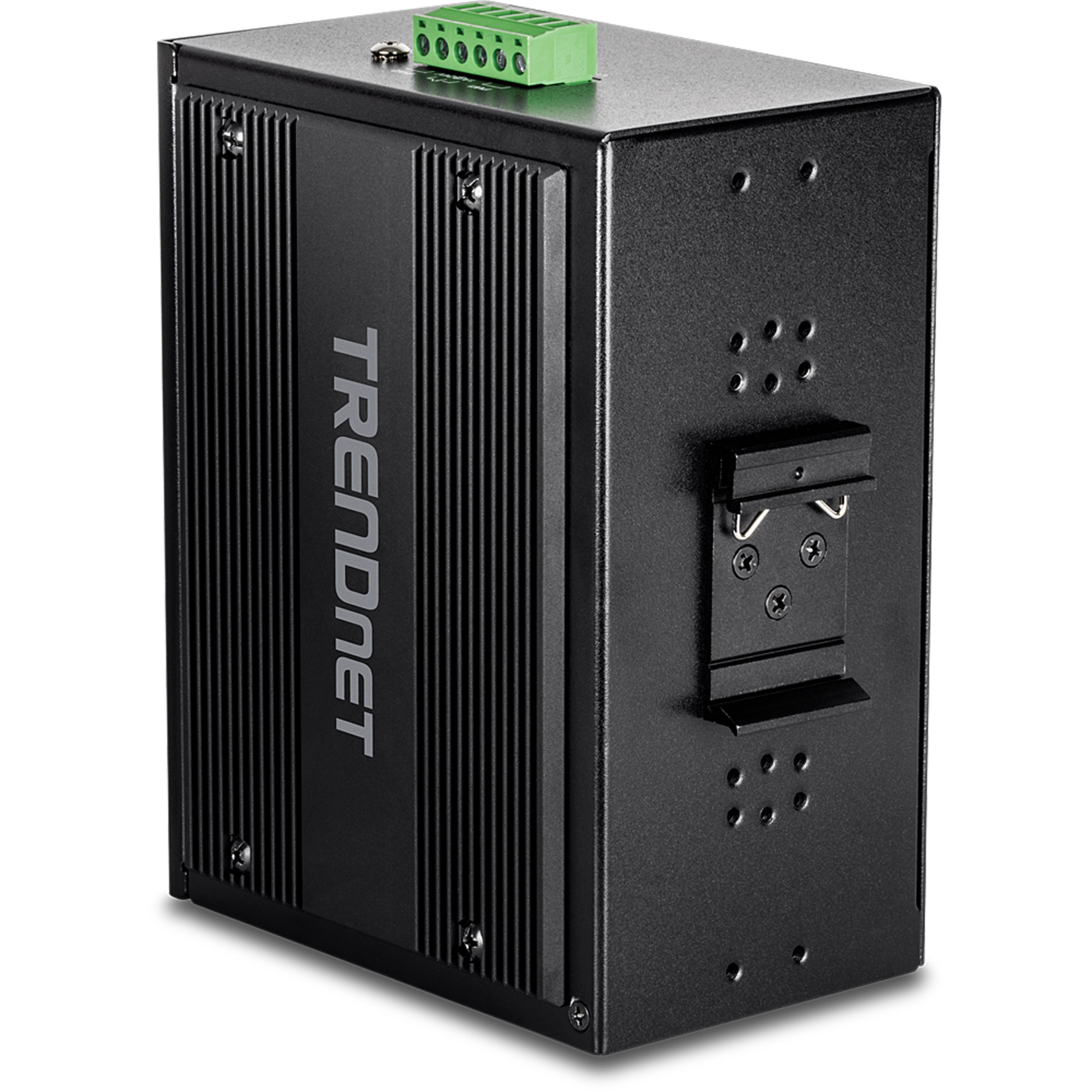

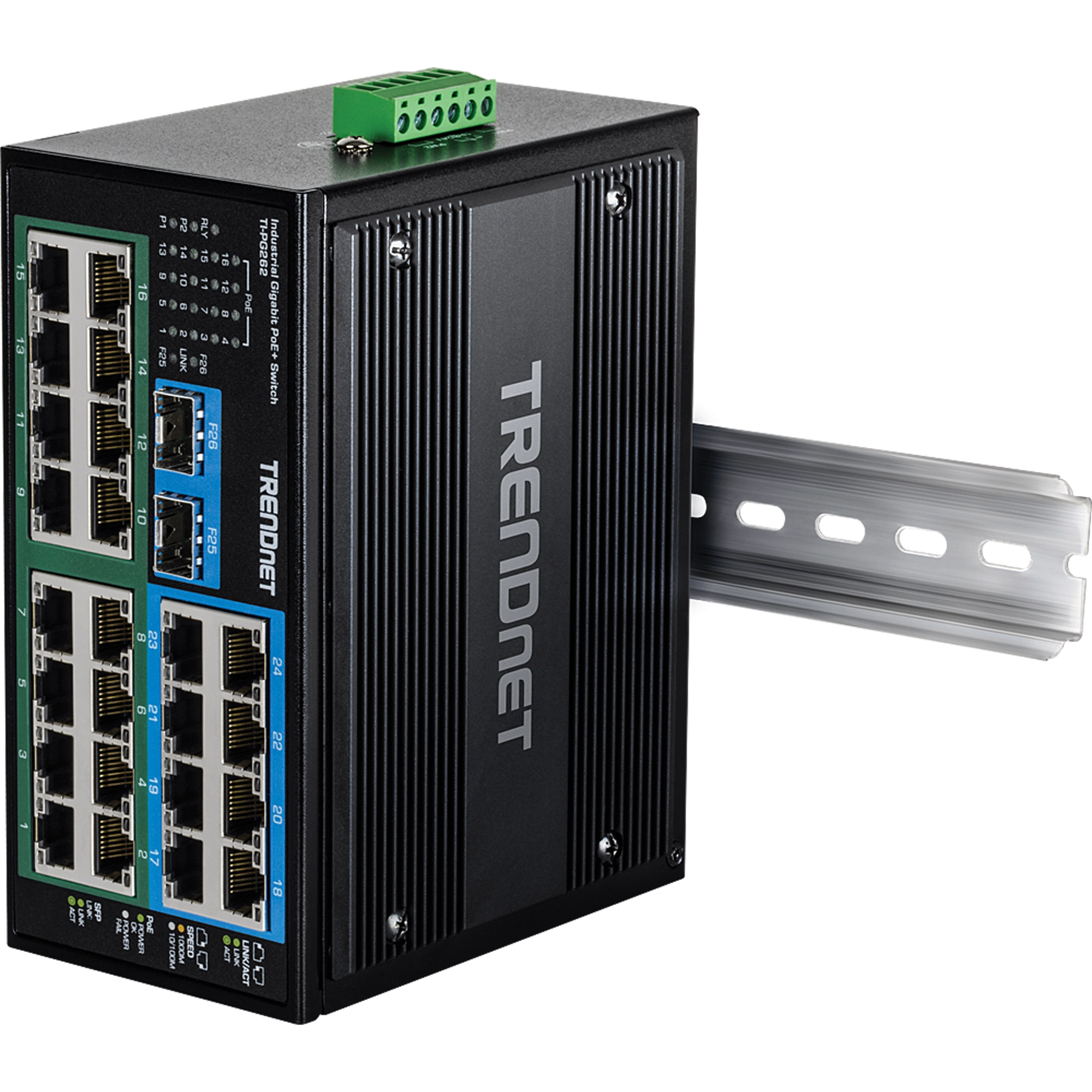

• Includes DIN-Rail and wall mounts
• Extreme -40 to 75 ºC (-40 to 167 ºF) operating temperature range

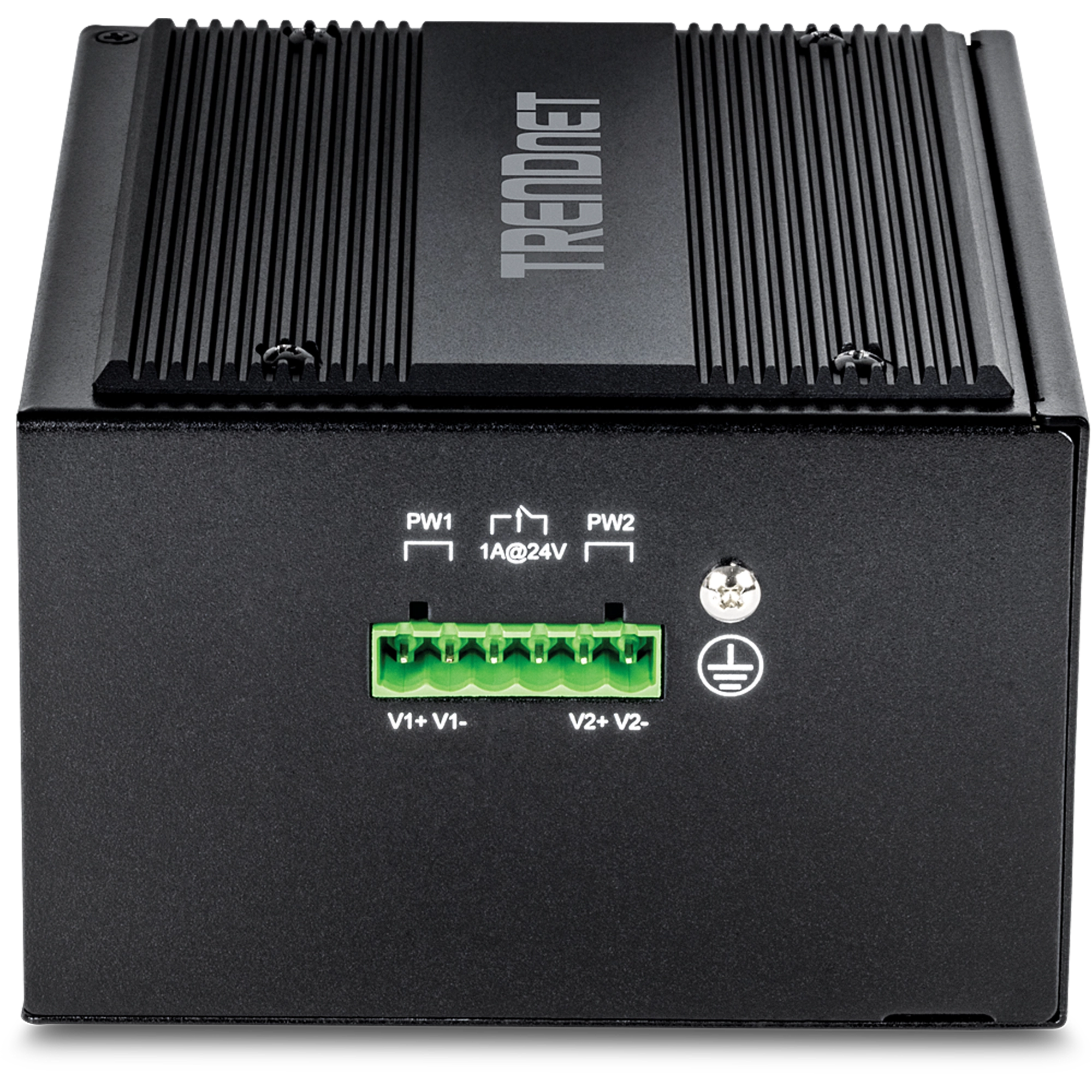

• Redundant power inputs with overload current protection
• Alarm output triggered by power failure
• Powers supply sold separately (Model TI-S48048)
• NDAA / TAA compliant
• Lifetime Warranty*
