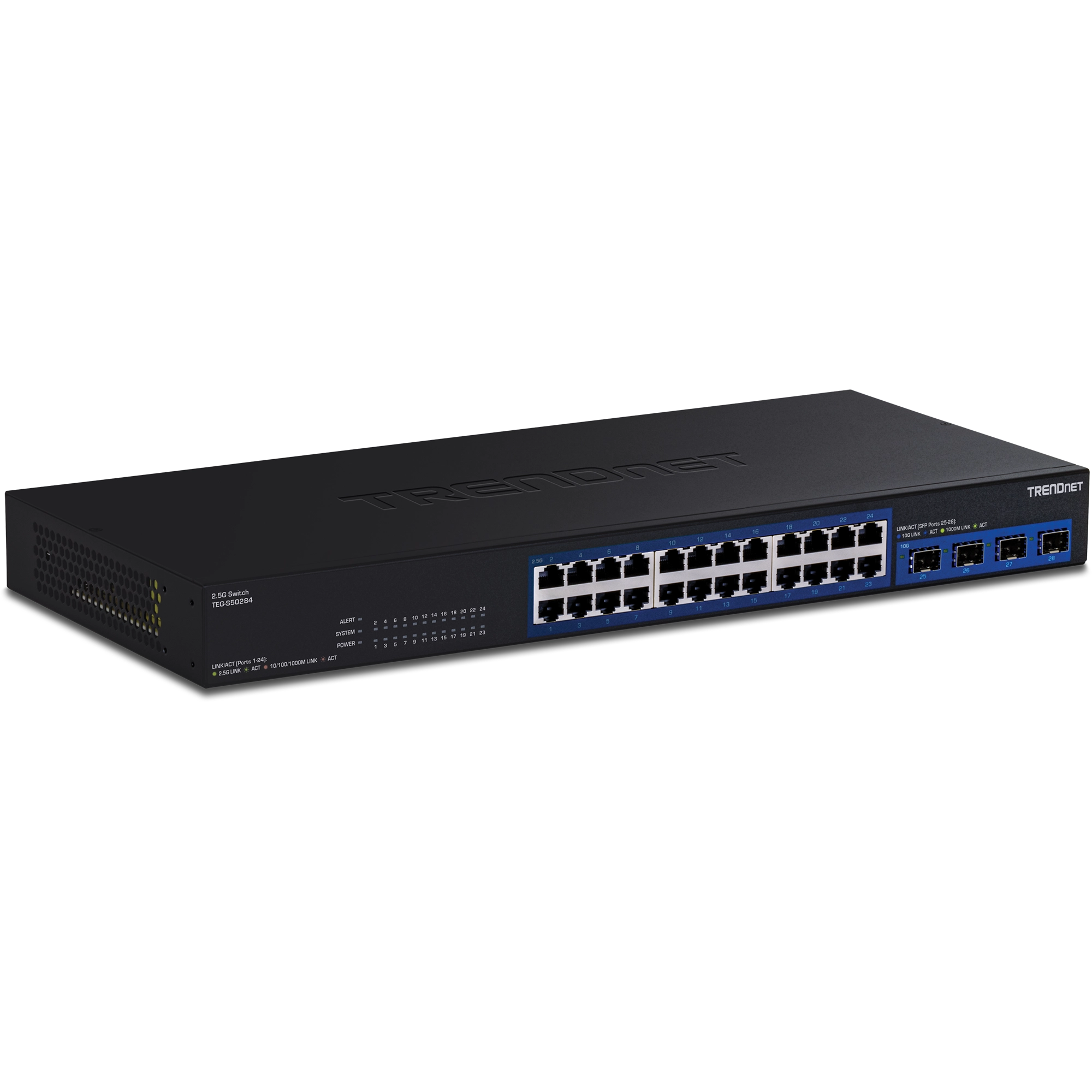

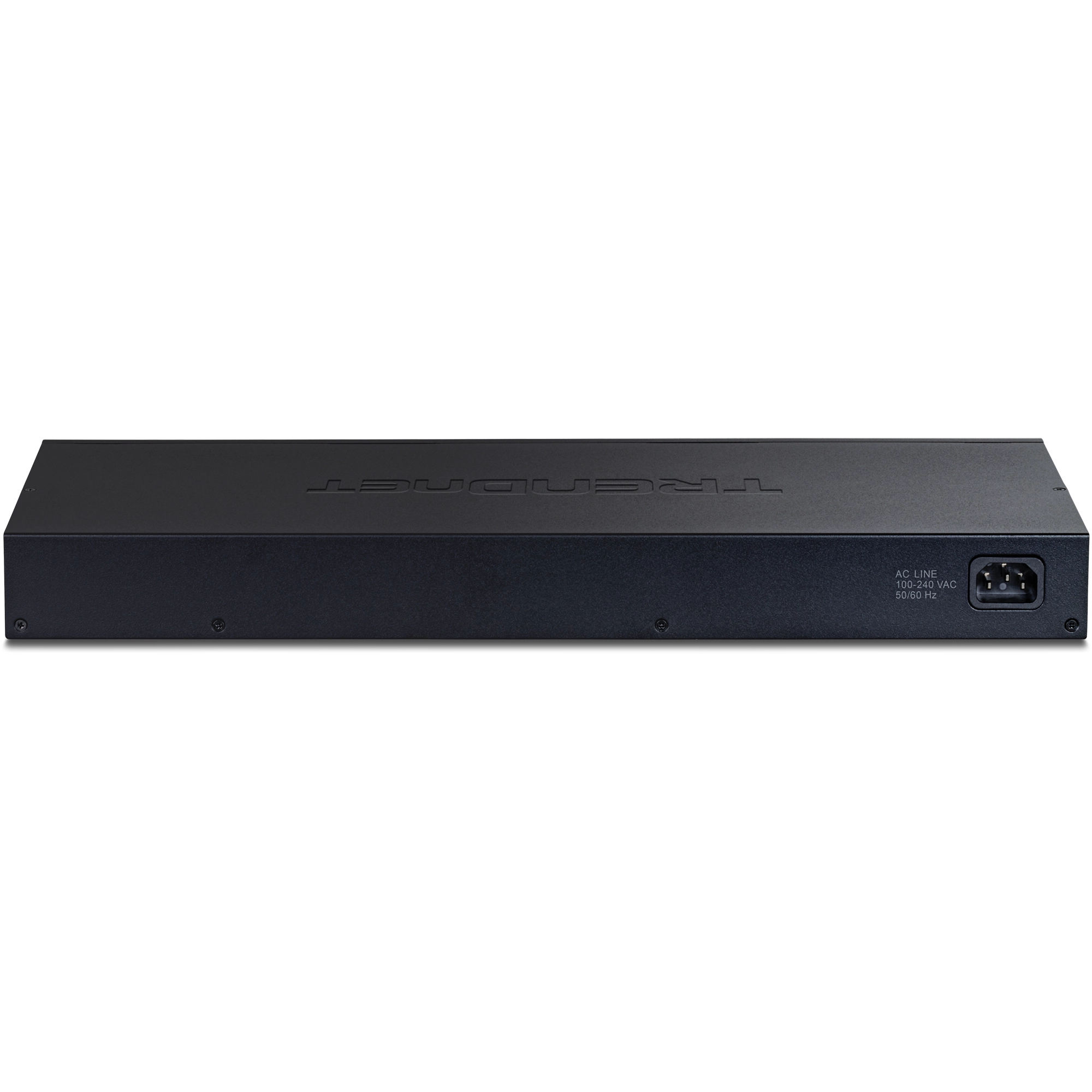

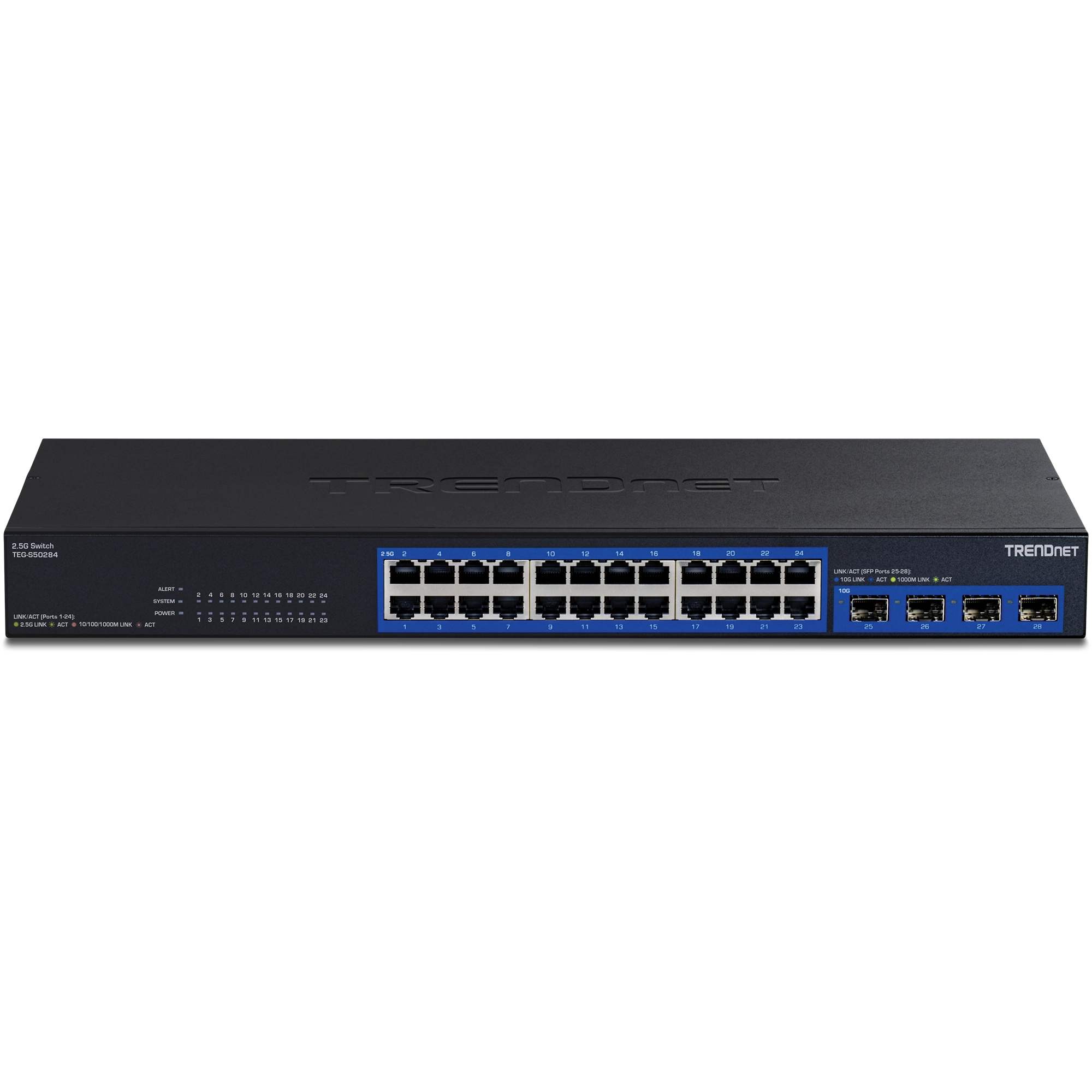

Trendnet - TEG-S50284 - 28-Port Multi-Gig Switch
Trendnet - TEG-S50284 - 28-Port Multi-Gig Switch
Part number:
TEG-S50284
Price:
Dealers only
Add to Quote/Project Registration
Description Specifications

28-Port Multi-Gig Switch



Features:

  • 24 x 2.5G RJ-45 ports
  • 4 x 10G SFP+ ports
  • Compatible with existing Cat5e or better cabling
  • Fanless design eliminates noise
  • Rack mountable or wall mountable for installation flexibility
  • 200Gbps switching capacity
  • IEEE 802.3bz (2.5G) and IEEE 802.3ae (10G SFP+) compliant
  • NDAA / TAA compliant (U.S. and Canada only)
  • Lifetime Warranty*
Standards
  • IEEE 802.1Q
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3z
  • IEEE 802.3ab
  • IEEE 802.3ae
  • IEEE 802.3az
  • IEEE 802.3bz
Device Interface
  • 24 x 2.5G RJ-45 ports (10Mbps/100Mbps/1Gbps/2.5Gbps)
  • 4 x 10G SFP+ ports (1Gbps/10Gbps)
  • LED indicators
Data Transfer Rate
  • Ethernet: 10Mbps (half duplex) 20Mbps (full duplex)
  • Fast Ethernet: 100Mbps (half duplex) 200Mbps (full duplex)
  • Gigabit: 2Gbps (full duplex)
  • 2.5 Gigabit: 5Gbps (full duplex)
  • Gigabit SFP: 2Gbps (full duplex)
  • 10G SFP+: 20Gbps (full duplex)
Performance
  • Switching Capacity: 200Gbps
  • RAM Buffer: 2MB
  • Jumbo Frames: 12KB
  • MAC Address Table: 32K entries
  • Forwarding Rate: 59.52Mpps (64-byte packet size)
Special Features
  • Rack mountable
  • VLAN Passthrough
  • ESD 6kV for ethernet ports
Power
  • Input: 90 – 264V AC, 47/63 Hz
  • Output: 12V DC, 5A
  • Max. Consumption: 38.88W
Fan/Acoustics
  • Fanless design
MTBF
  • 426,000 hours @ 25° C
Operating Temperature
  • 0° – 50° C (32° – 122° F)
Operating Humidity
  • Max. 90% non-condensing
Dimensions (L x W x H)
  • 440 x 196 x 44mm (17.36 x 7.71 x 1.73 in.)
Weight
  • 2890g (6.37lbs)
Certifications
  • FCC
  • CE
  • LVD
Warranty
  • Lifetime Warranty*
