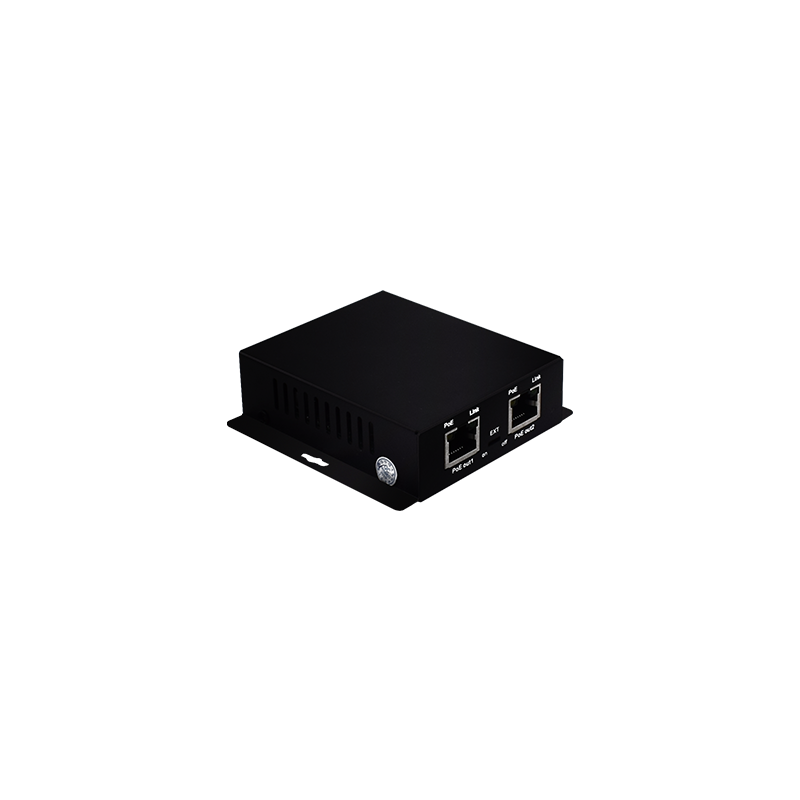

Wi-Tek - WI-PE31G - 2GE PoE Output+1GE PoE Input PoE Extender
2GE PoE Output+1GE PoE Input PoE Extender
Features:

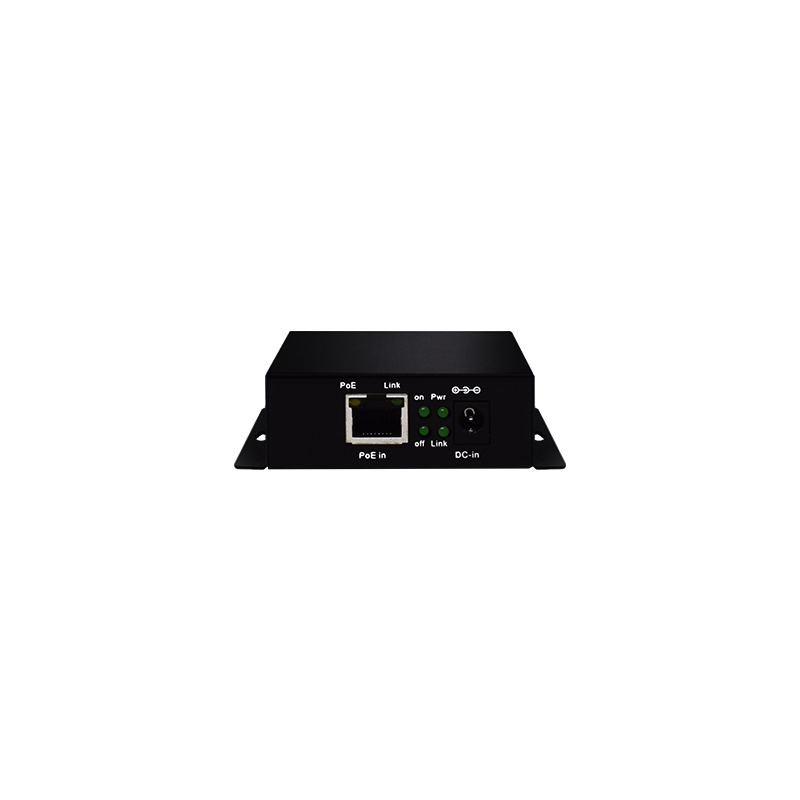

- PoE in port: 1*1000Mbps PoE port with 802.3af/at 30W
- DC input port: 48-55V

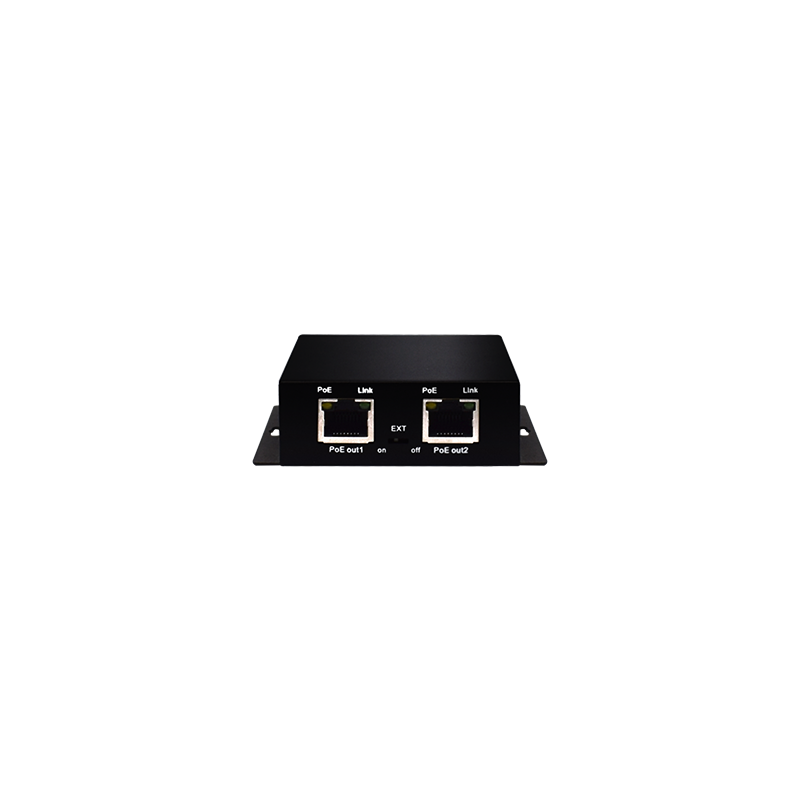

- PoE output port: 2*1000Mbps PoE port with 802.3af/at 30W
- Support desktop mount and wall mount
- Plug and play, zero configuration
- Cost-effective to extend your network
HARDWARE FEATU RES | WI-PE31G |
Interface | PoE in port： 1 x 1000Mbps PoE port with 802.3af/at 30W DC in port:48-55V PoE out port: 2 x 1000Mbps PoE port with 802.3af/at 30W |
Network Media | 10BASE-T: UTP category 3, 4, 5 cable (Max 100m) EIA/TIA-568 100Ω STP (Max 100m) 100BASE-TX: UTP category 5, 5e cable (Max 100m)EIA/TIA-568 100Ω STP (Max 100m) |
Fan Quantity | Fanless |
PoE PIN | PoE IN: 4/5(+) 7/8(-)or 1/2(+) 3/6(-) PoE OUT: 4/5(+) 7/8(-)or 1/2(+)3/6(-) |
LED Indicator | PWR, Link |
DIP Switch | Extend |
250m Long Distance | Yes |
Transmission Method | Store-And-Forward |
Advanced Functions | Mac Address Auto-Learning And Auto-Aging Store and forward IEEE 802.3x flow control for Full-duplex Mode Backpressure for Half-duplex Mode |
OTHERS | |
Certification | CE, FCC, RoHS |
Package Dimension | 100×100×30mm |
Switch Dimension | 87×87×25mm |
Gross Weight | 0.17kg |
Net Weight | 0.14kg |
Operating Temperature | -10°C~55°C |
Package Contents | 1 x PoE Extender 1 x Installation Guide |
