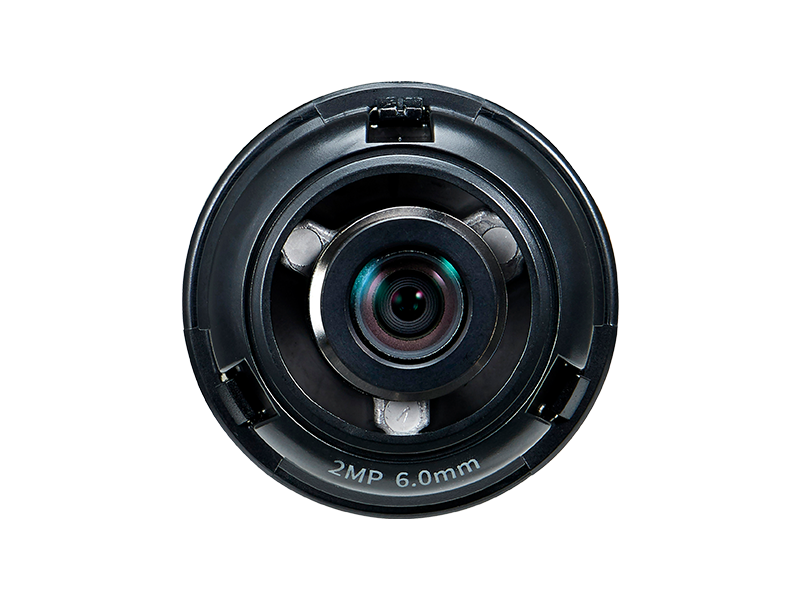

Hanwha - SLA-2M6000Q - 2M Lens Module for PNM-9000VQ, 9002VQ
Part number:
SLA-2M6000Q
Price:
1/2.8" 2MP CMOS with a 6.0mm fixed focal lens, FoV: H: 50.4˚, V: 28.8˚, for the PNM-9000VQ
Features:
- 0.55Lux@F2.0 Color, B/W (2MP lenses)
- Selectable lens options: 2.4 / 2.8 / 3.6 / 6.0mm fixed lens (2MP)
| VIDEO | |
| Imaging Device | 1 / 2.8" 2M CMOS |
| Effective Pixels | 1945 (H) x 1097 (V) 2.13M |
| Min. Illumination | Color : 0.055 Lux (F2.0, 1 / 30sec), B/W : 0.055 Lux (F2.0, 1 / 30sec) |
| LENS | |
| Focal Length (Zoom Ratio) | 6mm |
| Max. Aperture Ratio | F2.0 |
| Angular Field of View | H : 50.4˚, V : 28.8˚, D : 58.1˚ |
| Focus Control | Fixed focal |
| PAN / TILT / ROTATE | |
| Pan / Tilt / Rotate Range | -90˚~+90˚ / 30˚~89˚ / -180˚~+180˚ |
| MECHANICAL | |
| Color / Material | Black / Plastic |
| Dimension (W x H x D) | Ø 35.5 x 35.9 mm (Ø 1.39" x 1.41") |
