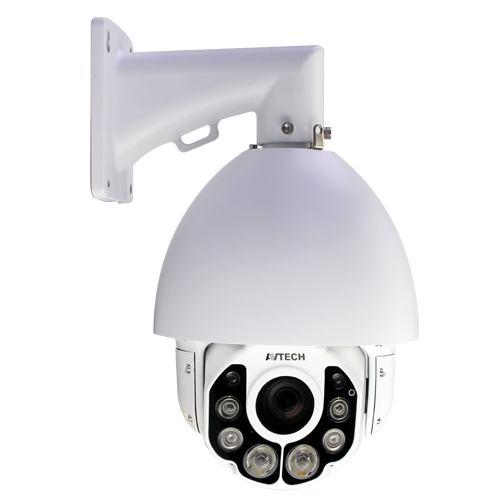

Avtech - AVZ592 - 2MP 20X Speed Dome Camera with Wall Mount bracket ( TVI, IP, or AHD )
Part number:
AVZ592
Price:
2MP 20X Speed Dome Camera with Wall Mount bracket ( TVI, IP, or AHD )
Features:
- External alarm I/O device connection
- ONVIF standard supported to simplify system integration
POE (Power-over-Ethernet) support to eliminate the use of power cables and reduce installation costs
- MicroSD card support (up to 64GB) for video storage
- WDR to increase image recognizability in overexposure and dark areas
Line in / out jacks available for audio transmission
- IR effective range up to 200 meters or more when the IR Turbo mode is on
- IP66 for outdoor application
PTZ control for seamless monitoring:
- Capable of 360° pan rotation continuously with the tilt movement of -6° ~ 90°, allowing quick and smooth action of the camera lens
- Auto Tracking to follow moving objects
- Hot Point support to quickly move the camera to the specified point remotely
- Up to 256 preset points & four sequence groups programmable for multiple points monitoring, and auto pan
Remote Surveillance
- Fully compatible with iOS and Android devices, and Internet Explorer on Windows operating system
- Free PC program, CMS Lite, for 32CH devices monitoring on Windows operating system
- Push Video available on your iOS and Android devices when used with Push Video NVR series
| Specifications | |
| Network | |
| LAN Port | YES |
| LAN Speed | 10/100 Based-T Ethernet |
| Data Transmission Speed | 10/100/1000 Based-T |
| Supported Protocols | DDNS, PPPoE, DHCP, NTP, SNTP, TCP/IP,ICMP, SMTP, FTP, HTTP, RTP, RTSP, RTCP,IPv4, Bonjour,UPnP, DNS,UDP,IGMP, QoS, IEEE802.1X, SNMP |
| ONVIF Compatible | YES (Profile S) |
| Number of Online Users | 10 |
Security |
|
Remote Access |
|
| Video | |
| Video Output | IP, TVI*,AHD* and CVBS |
| Compression Format | H.264 (Main Profile) / MJPEG |
| Video Resolution | 1920 x 1080 / 1280 x 720 / 720 x 480 / 352 x 240 |
| Frame Rate | 30 fps |
| Multiple Video Streaming | 4 (H.264, MJPEG) |
| Bitrate Control | SVBR control (VBR + Max bitrate) |
| General | |
| Image Sensor | 1/2.8" Sony CMOS image sensor |
| Min Illumination | 0.1 Lux / F1.6(Wide)~F3.5(Tele), 0 Lux (IR LED ON) |
| Shutter Speed | 1 / 60 (1/50) to 1 / 100,000 sec. |
| S/N Ratio | More than 48dB (AGC off) |
| Lens | f4.7 ~ 94mm / F1.6 (Wide) ~ 3.5(Tele), auto focus |
| Viewing Angle | 1X: 60.8° (Horizontal) / 35.3° (Vertical) / 68.3° (Diagonal) 20X: 3.4° (Horizontal) / 1.9° (Vertical) / 3.8° (Diagonal) |
| IR LED | 8units |
| IR Effective Distance | Default: Up to 200 meters / IR Turbo mode: More than 200 meters |
| IR Shift | YES |
| Smart Light Control | YES |
| White Balance | Auto / 2500K / 3200K / 4200K / 5800K / 9500K |
| AGC | YES |
| IRIS Mode | YES |
| Sharpness | YES |
| WDR | YES |
| PoE | 802.3at |
| External Alarm I/O | YES (1 input / 1 output) |
| RAM | 20MB |
| MicroSD Card Slot | YES (up to 64GB) |
| RS-485 | YES |
| IP Rating (weather-proof) | IP66 |
| Operating Temperature | -25℃ ~ 50℃ |
| Operating Humidity | 90% or less relative humidity |
| Power Source (±10%) | AC 24V / DC19V |
| Current consumption (±10%) | DC19V / 1.3A |
| Power Consumption (±10%) | PoE / PoN: 30.2W; DC Adapter: 25W |
| Net Weight (kg) | 6.9 |
| Audio | |
| Line in | YES (Mono) |
| Line out | YES (Mono) |
| PTZ Mechanism | |
| Pan Range | 360° continuous rotation |
| Max. Pan Speed | 90º/s |
| Tilt Range | -6° ~ 90° |
| Max. Tilt Speed | 70º/s |
| Zoom Ratio | 20X Optical Zoom / 16X Digital Zoom |
| Max. Zoom Speed | Approx. 3s (Tele ~ Wide) |
| Preset Points | Up to 256 preset points |
Sequence Group |
|
| Auto Tracking | YES |
| Others | |
| Mobile Surveillance | iOS & Android |
| Event Notification | FTP / Email / SMS |
| Digital Pan / Tilt / Zoom | YES |
| Reset Default | YES |
| Motion Detection | YES |
| RTC (real-time clock) | YES |
Minimum Web Browsing Requirements | ‧Intel core i3 or higher, or equivalent AMD ‧2GB RAM ‧AGP graphics card, Direct Draw, 32MB RAM ‧Windows 10, Windows 8, Windows 7, Windows Vista & Windows XP, DirectX 9.0 or later ‧Internet Explorer 7.x or later (Windows Edge not supported) |
| Optional Peripherals | USB Joystick (AVX102) |
| Certification | CE |
