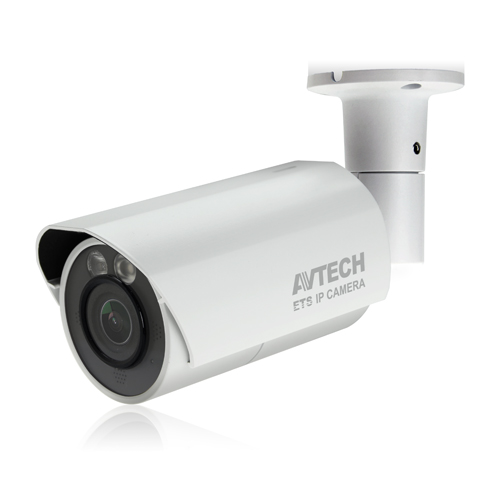

Avtech - AVM553 - 2MP IR Bullet IP Camera
• It is equipped with a motorised varifocal lens with an f-number of 2.8–12 mm.
• External alarm I/O device connecti Supports POE (Power over Ethernet) to eliminate the need for power cables and reduce installation costs.
• Supports the ONVIF standard to simplify system integration.
• IR effective range of up to 35 metres for night surveillance.
• WDR increases image recognisability in overexposed and dark areas.
• Waterproof design of the Ethernet cable connector.
| Network | |
|---|---|
| LAN Port | YES |
| LAN Speed | 10/100 Based-T Ethernet |
| Supported Protocols | DDNS, PPPoE, DHCP, NTP, SNTP, TCP/IP, ICMP, SMTP, FTP, HTTP, RTP, RTSP, RTCP, IPv4/IPv6, Bonjour, UPnP, DNS, UDP, IGMP, QoS, SNMP |
| ONVIF Compatible | YES (Profile S) |
| Number of Online Users | 10 |
| Security | |
| Access Levels | Multiple user access levels with password |
| IP Filtering | IP address filtering |
| Authentication | Digest authentication |
| Remote Access | |
| Desktop | Internet Explorer on Windows operating system |
| Software | CMS Lite, 32CH CMS software for Windows operating system |
| Mobile | EagleEyes on iOS & Android mobile devices |
| Video | |
| Network Compression | H.264 (Main Profile) / MJPEG |
| Video Resolution | 1920 x 1080 / 1280 x 720 / 720 x 480 / 352 x 240 |
| Frame Rate | 30fps |
| Multiple Video Streaming | 4 (H.264, MJPEG) |
| General | |
| Image Sensor | 1/2.8" SONY CMOS image sensor |
| Min Illumination | 0.1 Lux / F1.4(Wide)~F2.8(Tele), 0 Lux (IR LED ON) |
| Shutter Speed | 1/10,000 ~ 1/7.5 (Slow shutter) |
| S/N Ratio | More than 48dB (AGC off) |
| Lens | f2.8 ~ 12mm / F1.4 ~ F2.8 |
| Viewing Angle | Wide: 103° (Horizontal) / 54° (Vertical) / 122° (Diagonal) Tele: 31° (Horizontal) / 17° (Vertical) / 36°(Diagonal) |
| IR LED | 2 units |
| IR Effective Distance | Default: up to 25 meters IR Enhanced Mode: up to 35 meters |
| IR Shift | YES |
| Smart Light Control | YES |
| White Balance | ATW |
| AGC | Auto |
| IRIS Mode | AES |
| WDR | YES |
| POE | YES (IEEE 802.3af) |
| External Alarm I/O | YES (1 input / 1 output) |
| RAM | 20MB |
| MicroSD Card Slot | YES (up to 128GB) |
| IP Rating | IP66 |
| Startup Temperature | 0℃ ~ 40℃ |
| Operating Temperature | -25℃ ~ 50℃ |
| Operating Humidity | 90% or less relative humidity |
| Power Source (±10%) | DC12V / 1A |
| Current Consumption (±10%) | 315mA (LED off) / 500mA (LED on) |
| Power Consumption (±10%) | 8W (PoE); 8W (PoN); 7W (DC Adapter) |
| Net Weight (kg) | 1.4 |
| Audio | |
| Line in | YES (Mono) |
| Line out | YES (Mono) |
| Others | |
| TV-Out | YES |
| Mobile Surveillance | iOS & Android mobile devices |
| EaZy Networking | YES |
| Event Notification | Push Video / FTP / Email / SMS |
| Digital Pan / Tilt / Zoom | YES |
| Motion Detection | YES |
| RTC (real-time clock) | YES |
| Minimum Web Browsing Requirements | Intel core i3 or higher, or equivalent AMD 2GB RAM AGP graphics card, Direct Draw, 32MB RAM Windows 10, Windows 8, Windows 7, Windows Vista & Windows XP, DirectX 9.0 or later Internet Explorer 7.x or later (Windows Edge not supported) |
| Certification | |
| Standard | CE |
The camera is a Full HD (1920x1080) network dome camera with a 1/2.8-inch SONY CMOS image sensor. It uses a motorized vari-focal lens with a 2.8-12mm focal range, providing a wide horizontal field of view from 103 degrees to 31 degrees. For low-light operation, it features two IR LEDs with a standard range of up to 25 meters (extendable to 35 meters in enhanced mode), supporting a minimum illumination of 0.1 lux in color mode and 0 lux with IR on. The camera compresses video using H.264 and MJPEG codecs at up to 30 frames per second and offers quadruple video streaming.
The imaging includes Wide Dynamic Range and IR Shift for day/night transition. It is housed in an IP66-rated weatherproof enclosure designed to operate in temperatures from -25°C to 50°C (starting from 0°C). Network connectivity is provided via a 10/100 Mbps Ethernet port with Power over Ethernet 802.3af support. It is compatible with ONVIF Profile S for system integration. Power can also be supplied via a 12VDC adapter, with total consumption not exceeding 8 watts. The unit includes 1 alarm input and 1 alarm output, a microSD card slot for local storage up to 128GB, and support for mobile viewing on iOS and Android devices.
