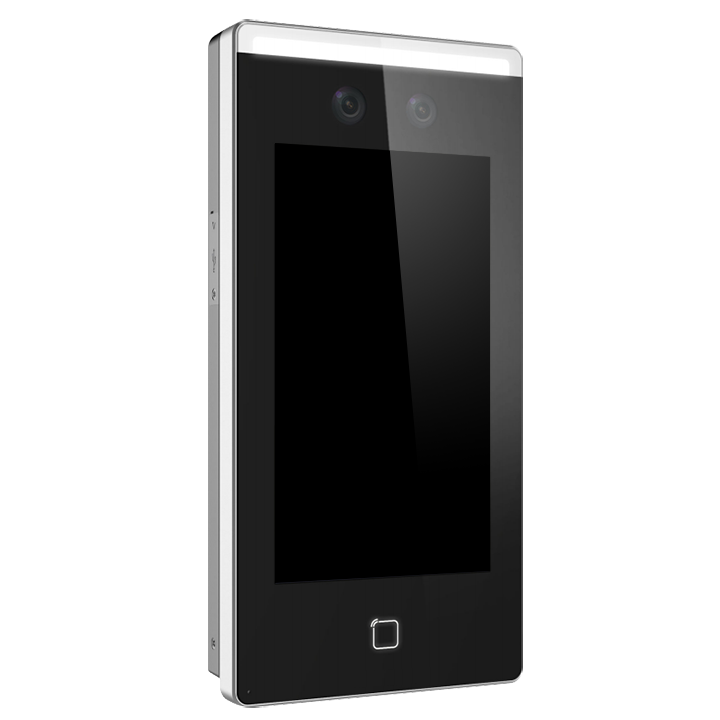

ACTi - R71CF-35 - 2MP Mifare LCD Card Face Recognition Wiegand Reader and Controller with Bundle 50,000 Card Database / 20,000 Face Database
ACTi - R71CF-35 - 2MP Mifare LCD Card Face Recognition Wiegand Reader and Controller with Bundle 50,000 Card Database / 20,000 Face Database
Part number:
R71CF-35
Price:
Dealers only
Add to Quote/Project Registration
Description Specifications Downloads

2MP Mifare LCD Card Face Recognition Wiegand Reader and Controller with Bundle 50,000 Card Database / 20,000 Face Database.



Features:

  • Access Control with Card + Face Recognition (99%) , Intercom Station
  • 7" LCD Color Touch Screen
  • Wiegand Reader and Controller
  • Bundle with 20000 Face Database
  • Built-in MIFARE Card Reading Module
  • Not available in the USA
Device
Product TypeReader and Controller
Device TypeAccess Controller
RFID Reader
Face Reader
Maximum Resolution2MP
Product ApplicationAccess Control with Card + Face Recognition (99%) , Intercom Station
Description2MP Mifare LCD Card Face Recognition Wiegand Reader and Controller with Bundle 50,000 Card Database / 20,000 Face Database.
LCD Screen7" Color Touch Screen; Resolution: 1024 x 600
Lens
Number of Lenses2 Lenses
Focal LengthFixed focal
Video
Built-in AnalyticsFace Recognition, RFID Recognition
Audio
Audio Type2-way, Built-in Microphone, Built-in Speaker
Network
Ethernet Port1 x Ethernet (10/100/1000 Base-T), RJ-45 connector
Video Analytics
Analysis Source TypeVideo, Image
Metadata AccuracyExcellent
Face Recognition Distance0.3m - 3m
Event
Event Log100,000
System
Operating SystemLinux
Access Control Functionality
Access ModeCard only, Face only, Card and Face
RFID Card
Communication Frequency13.56 MHz
RFID StandardISO 14443A
RFID OptionsMIFARE
Storage
User DatabaseCard Capacity: 50,000
Face Picture Capacity: 20,000
Card + Face Detection User Limit20,000
Face Only Detection User Limit20,000
Interface
Serial Port1 x RS-485
Digital Input/Output2/1
General
Power SourceDC 12V (adapter not included), 3 A
Dimensions(W x H x D): 239mm x 116.5mm x 33mm (9.41" x 4.59" x 1.30")
Environmental CasingWeather resistant (IP65)
Operating Temperature-30°C ~ 60°C (-22°F ~ 140°F)
Operating Humidity0% - 90% RH
Warranty1 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty
