Hanwha - SLA-T2880BA - 2MP Network Bandit Barrier Lens
Part number:
SLA-T2880BA
Price:

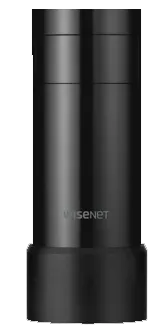

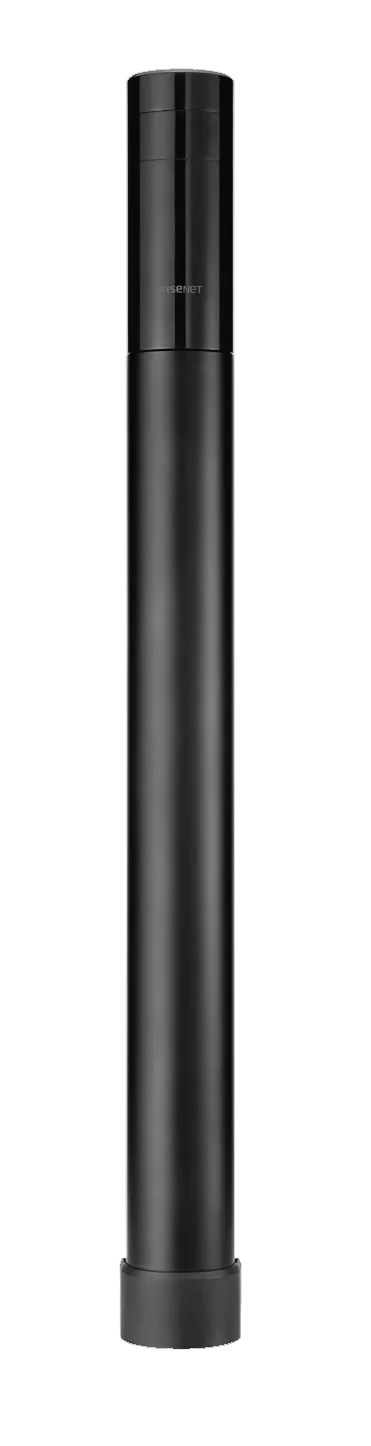

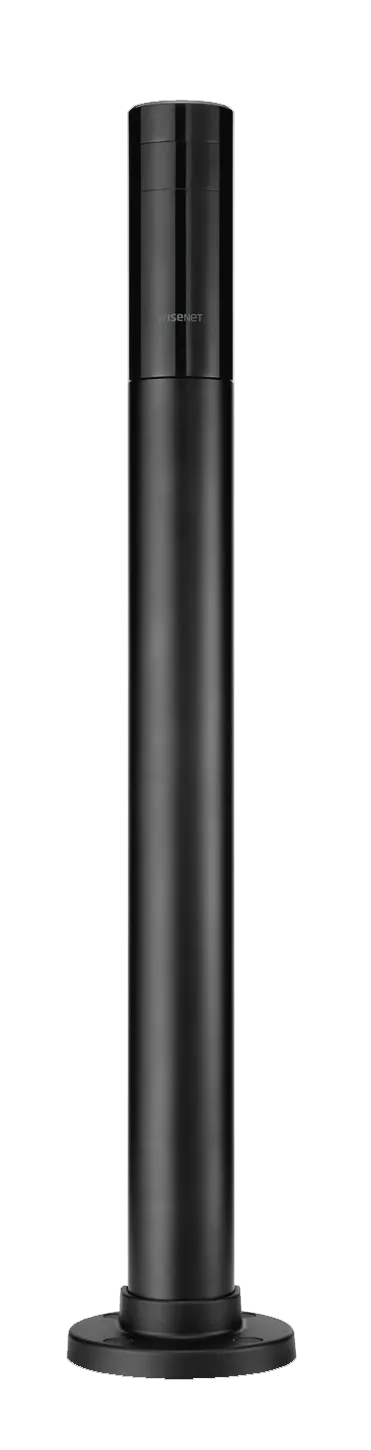

The SLA-T2880BA Bandit Barrier / Teller Tower lens is designed for banking and retail applications. The bandit barrier lens is adjustable in height to suit your installation environment and can be mounted flat against a wall/counter/partition, or anchored to a counter below. Designed for overt surveillance while being stylish to blend into the surroundings and obtain video from the desired height and angle.
Features:
- 2 Megapixel (1920 x 1080) resolution
- 2.8mm wide-angle lens provides a 107.4° FoV
- Includes an 8m cable that can be cut to length as needed
- Black color
- Supports up to 60fps@2MP
- WDR (120dB), LDC
- Adjustable height and installation options for various installation types
- cable length 8m (26 feet), can be cut to length as needed
- Requires optional XNB-6002 / PNM-9000QB main unit
| Focal Length (Zoom Ratio) | 2.8mm fixed |
| Max. Aperture Ratio | F2.0 |
| Angular Field of View | H : 107.4˚ / V : 62.2˚ / D : 122.0˚ |
| Min. Object Distance | 0.5m (1.64ft) |
| Focus Control | Fixed focus |
| Lens / Mount Type | Fixed / RJ12 connected to main unit with 8m cable, can be cut to length |
| Day & Night | Auto (Electrical) / Color / B/W / Schedule |
| Backlight Compensation | Off / BLC / HLC (Masking / Dimming) / WDR |
| Wide Dynamic Range | 120dB |
| Contrast Enhancement | SSDR (Off / On) |
| Digital Noise Reduction | SSNRV (2D + 3D Noise filter) (Off / On) |
| Digital Image Stabilization | Off / On |
| Defog | Off / Auto (input from fog detection) / Manual |
| Resolution | 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240 |
| Maximum Framerate | H.265 / H.264 : Maximum 60fps at all resolutions, MJPEG : Maximum 30fps |
| Operating Temperature / Humidity | -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH |
| Storage Temperature / Humidity | -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH |
| Color / Material | Black / Plastic & Metal |
| Dimensions (WxH) | 66.5x46x175~737mm (2.6x1.8x6.9~29.0") |
| Weight | 250~1,000g (0.55~2.205 lb) |
