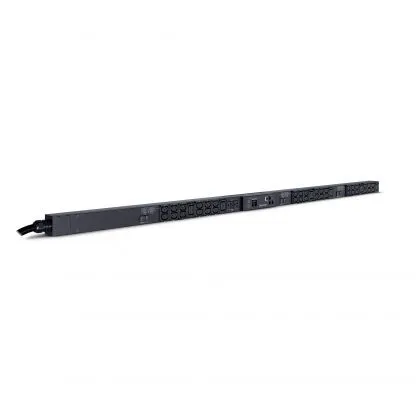

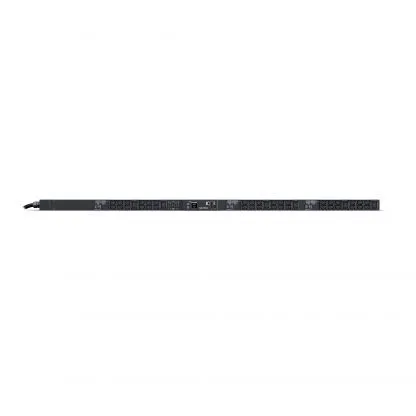

Cyber Power - PDU33105 - 3-Phase Monitored PDU, 120V/208V, 30A, 0U, (2) 5-20R + (36) C13 + (6) C19, NEMA L21-30P
Part number:
PDU33105
Price:

Stay informed about your power with the CyberPower PDU33105 monitored 3-Phase PDU. Ideal for data centers and network closets, this unit provides power monitoring in real time over the network by using the CyberPower management console and the RJ45 Ethernet port for network connection or locally by using the LCD.

The PDU33105 supports a 208V 30A input and includes 44 outlets. Other features include an interactive digital display with selectable background color, high operating temperature range, built-in web interface, and power event notifications. The CyberPower PDU33105 is protected by a three-year limited warranty.



Features:

  • Power Distribution: Delivers AC power to servers, equipment, and connected devices via a power distribution unit.
  • Remote and Local Monitoring: Enables offsite and onsite tracking of PDU vitals; provides outlet control for individual and networked clients.
  • Automatic Event Notifications: Provide immediate updates about power events via email, SMS text, or SNMP traps.
  • Digital Display: Provides easy-to-read information about amperage, voltage, KW, IP address, and other PDU information.
  • Multi-color LCD Background: User selectable background color on digital display allows for easy classification of PDU based on application. The LCD turns red when there is an alert.
  • High Operating Temperature Range: Operates in data center hot aisle up to 140˚F (60˚C).
  • CyberPower Management Console: A hardware interface built into Monitored and Switched PDUs. Its functionality includes the ability to switch PDU outlets on and off, reboot connected equipment locally or remotely, schedule power cycling of attached equipment, and perform other tasks, such as load monitoring and event logging.
  • Switch-Free Design: Safeguards against accidental power shut down.
  • Upgradeable Firmware: Downloadable improvements (firmware updates) to programs that run the PDU.
  • Long Input Power Cord: Reaches distant power sources, allowing the PDU to be placed where it’s needed.
  • Cord Retention Tray: Secures power cords, keeping them organized and accessible. Helps cords stay plugged in.
  • Durable Metal Housing: Protects internal components and resists damage from impact or abrasions within challenging industrial environments. Also extends the life of the product.
  • Network-Grade Plugs and Outlets: Highly-durable construction ensures the efficient distribution of power in demanding IT or industrial environments to servers, equipment, and connected devices.
  • Three-Year Limited Warranty: Covers defects in materials and workmanship in the product under normal use and conditions within three years of the purchase date. See warranty for details.
Input
Cord Length10 ft (3.0 m)
Derated Input Current24 A
Input Frequency Range50 Hz – 60 Hz
Input Plug TypeNEMA L21-30P
Maximum Input Current30A
Nominal Input Voltage208 VAC
Phase3 Phase
Output
Nominal Output Voltage120 – 208 VAC
Outlet Type2 – NEMA 5-20R, 36 – IEC-320 C13, 6 – IEC-320 C19

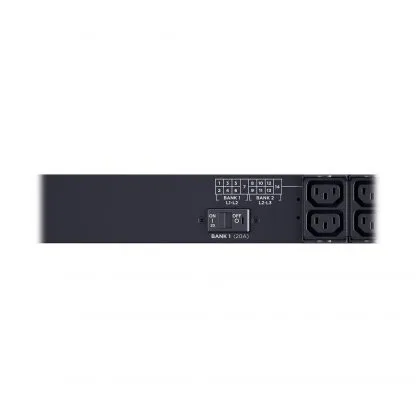

Outlets – # of Banks3
Outlets – Total44
Overload Protection20A X 3
Management & Communications
Environmental SensorOptional, via RJ45
Hardware Connection PortEthernet (RJ45)
Serial (RJ45)
LCDMultifunction LCD
LED IndicatorsTx/Rx, LINK, Normal/Warning/Critical Status
Modular Expandability (Cascading)Yes, via RJ45
Monitoring LevelInput, Per Circuit
ProtocolsIPv4, TCP/IP, UDP, SNMPv1, HTTP, NTP, DNS, Telnet, DHCP, SMTP, FTP, IPv6, SNMPv3, HTTPs, SSH, SSL, TLS, LDAP(S), RADIUS, Syslog, CLI, Windows AD
Software (Free Download)PowerPanel® Business
Upgradeable firmwareYes
Physical
Adjustable Mounting Brackets1 set
ColorBlack
Cord Retention Tray/Cord OrganizersYes
Material of ConstructionMetal
Rack Height0U
Dimensions

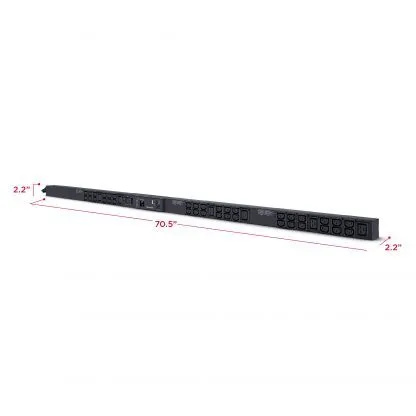

Physical Dimensions – (WxHxD) (cm)5.59 x 179.07 x 5.59 (cm)
Physical Dimensions – (WxHxD) (in)2.2 x 70.5 x 2.2 (in)
Physical Dimensions – (WxHxD) (mm)56 x 1791 x 56 (mm)
Physical Weight (kg)7.12
Physical Weight (lb)15.7
Dimensions – Shipping
Shipping – Weight (kg)10.48
Shipping – Weight (lb)23.1
Shipping Dimensions – (WxHxD) (cm)17.53 x 203.45 x 16.0 (cm)
Shipping Dimensions – (WxHxD) (in)6.9 x 80.1 x 6.3 (in)
Shipping Dimensions – (WxHxD) (mm)175.26 x 2034.54 x 160.02 (mm)
Environmental
Operating Elevation0 – 11480 ft (0 – 3499 m)
Operating Relative Humidity0 – 95 % (non-condensing)
Operating Temperature23 – 140 °F (-5 – 60 °C)
Certifications
EnvironmentalRoHS Compliant
SafetyUL60950-1, UL62368-1, FCC Class A
Warranty
Extended Warranty OptionWEXT5YR-PDU1B
Product Warranty3 Year Limited Warranty
