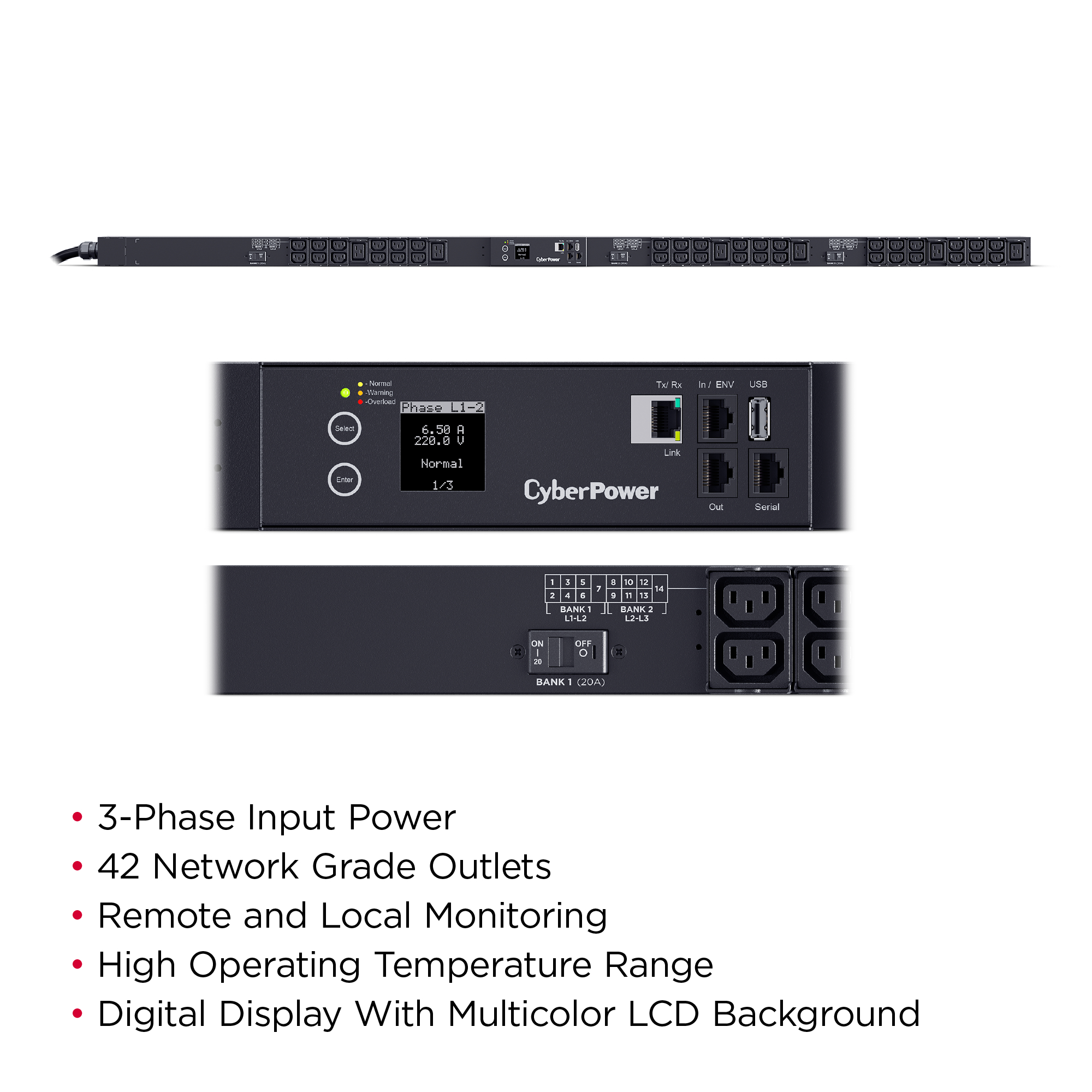

Stay informed about your power with the CyberPower PDU33108 monitored 3-Phase PDU. Ideal for data centers and network closets, this unit provides power monitoring in real time over the network by using the CyberPower management console and the RJ45 Ethernet port for network connection or locally by using the LCD.
The PDU33108 supports inputs between 200-240V and includes 42 IEC-320 outlets. Other features include an interactive digital display with selectable background color, high operating temperature range, built-in web interface, and power event notifications. The CyberPower PDU33108 is protected by a three-year limited warranty.
Features:
Input | |
Cord Length | 10 ft (3.0 m) |
Derated Input Current | 35 A |
Input Frequency Range | 50 Hz – 60 Hz |
Input Plug Type | Hubbell CS8365C |
Maximum Input Current | 50A |
Nominal Input Voltage | 200 – 240 VAC |
Phase | 3 Phase |
Output | |
Nominal Output Voltage | 200 – 240 VAC |
Outlet Type | 36 – IEC-320 C13 |
6 – IEC-320 C19 | |
Outlets – # of Banks | 3 |
Outlets – Total | 42 |
Overload Protection | 20A X 3 |
Management & Communications | |
Environmental Sensor | Optional, via RJ45 |
Hardware Connection Port | Ethernet (RJ45), Serial (RJ45) |
LCD | Multifunction LCD |
LED Indicators | Tx/Rx, LINK, Normal/Warning/Critical Status |
Modular Expandability (Cascading) | Yes, via RJ45 |
Monitoring Level | Input, Per Circuit |
Protocols | IPv4, TCP/IP, UDP, SNMPv1, HTTP, NTP, DNS, Telnet, DHCP, SMTP, FTP, IPv6, SNMPv3, HTTPs, SSH, SSL, TLS, LDAP(S), RADIUS, Syslog, CLI, Windows AD |
Software (Free Download) | PowerPanel® Business |
Upgradeable firmware | Yes |
Physical | |
Adjustable Mounting Brackets | 1 set |
Color | Black |
Cord Retention Tray/Cord Organizers | Yes |
Material of Construction | Metal |
Rack Height | 0U |
Dimensions | |
Physical Dimensions – (WxHxD) (cm) | 5.59 x 179.07 x 5.59 (cm) |
Physical Dimensions – (WxHxD) (in) | 2.2 x 70.5 x 2.2 (in) |
Physical Dimensions – (WxHxD) (mm) | 56 x 1791 x 56 (mm) |
Physical Weight (kg) | 7.98 |
Physical Weight (lb) | 17.6 |
Dimensions – Shipping | |
Shipping – Weight (kg) | 11.79 |
Shipping – Weight (lb) | 26 |
Shipping Dimensions – (WxHxD) (cm) | 21.59 x 203.45 x 16.0 (cm) |
Shipping Dimensions – (WxHxD) (in) | 8.5 x 80.1 x 6.3 (in) |
Shipping Dimensions – (WxHxD) (mm) | 215.9 x 2034.54 x 160.02 (mm) |
Environmental | |
Operating Elevation | 0 – 11480 ft (0 – 3499 m) |
Operating Relative Humidity | 0 – 95 % (non-condensing) |
Operating Temperature | 23 – 140 °F (-5 – 60 °C) |
Certifications | |
Environmental | RoHS Compliant |
Safety | UL60950-1, UL62368-1, FCC Class A |
Warranty | |
Extended Warranty Option | WEXT5YR-PDU1B |
Product Warranty | 3 Year Limited Warranty |
