Product Overview

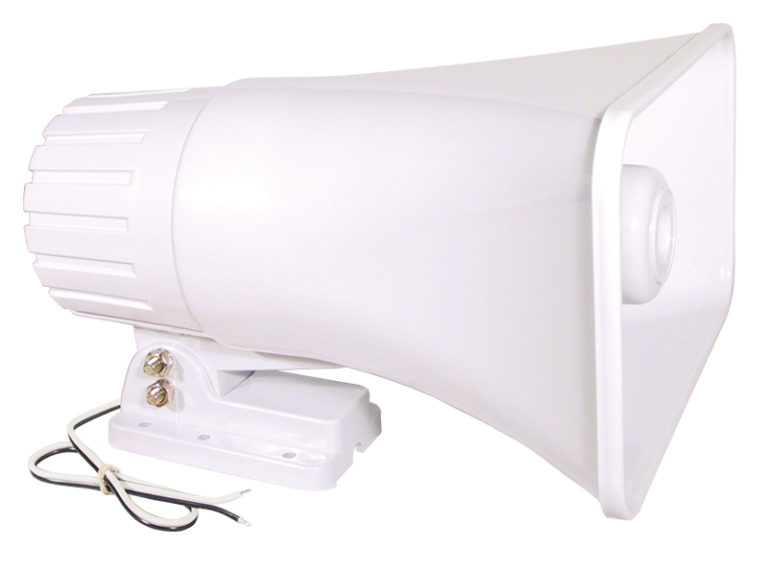

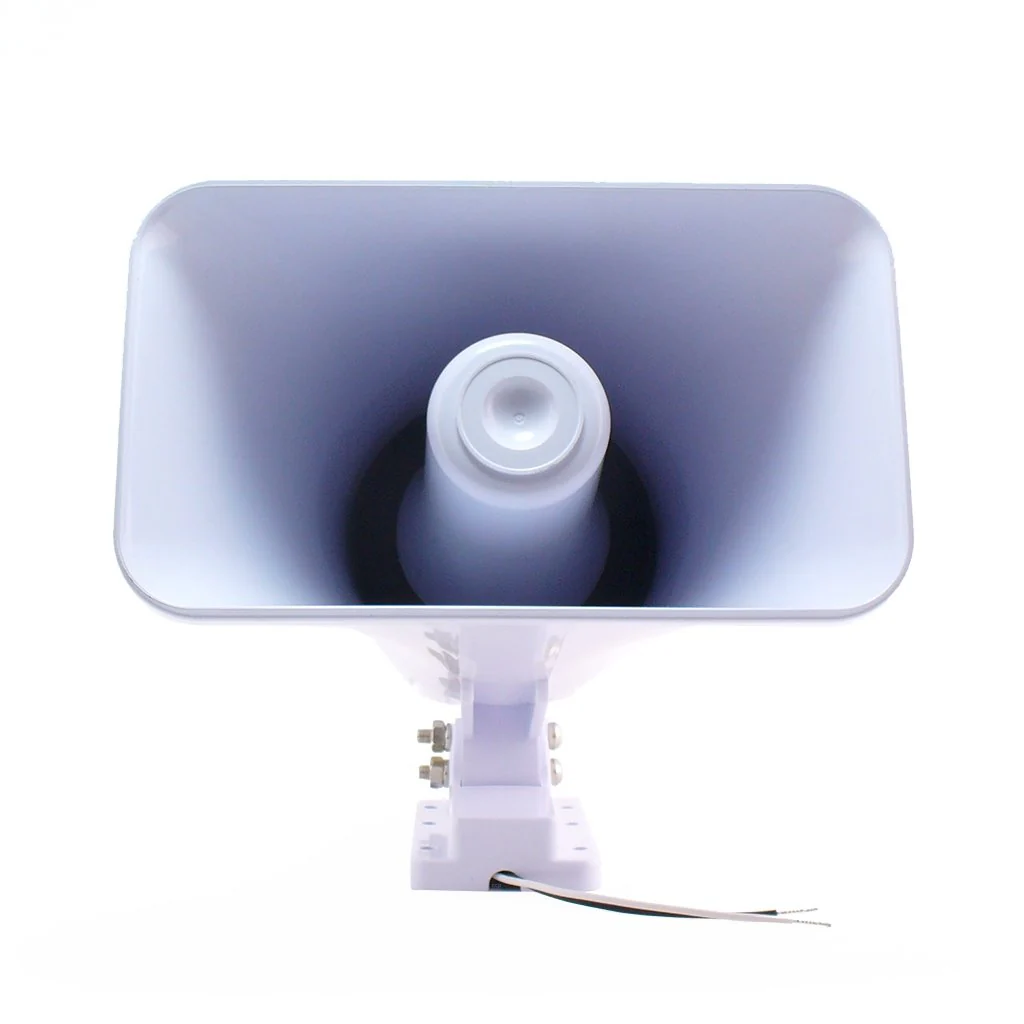

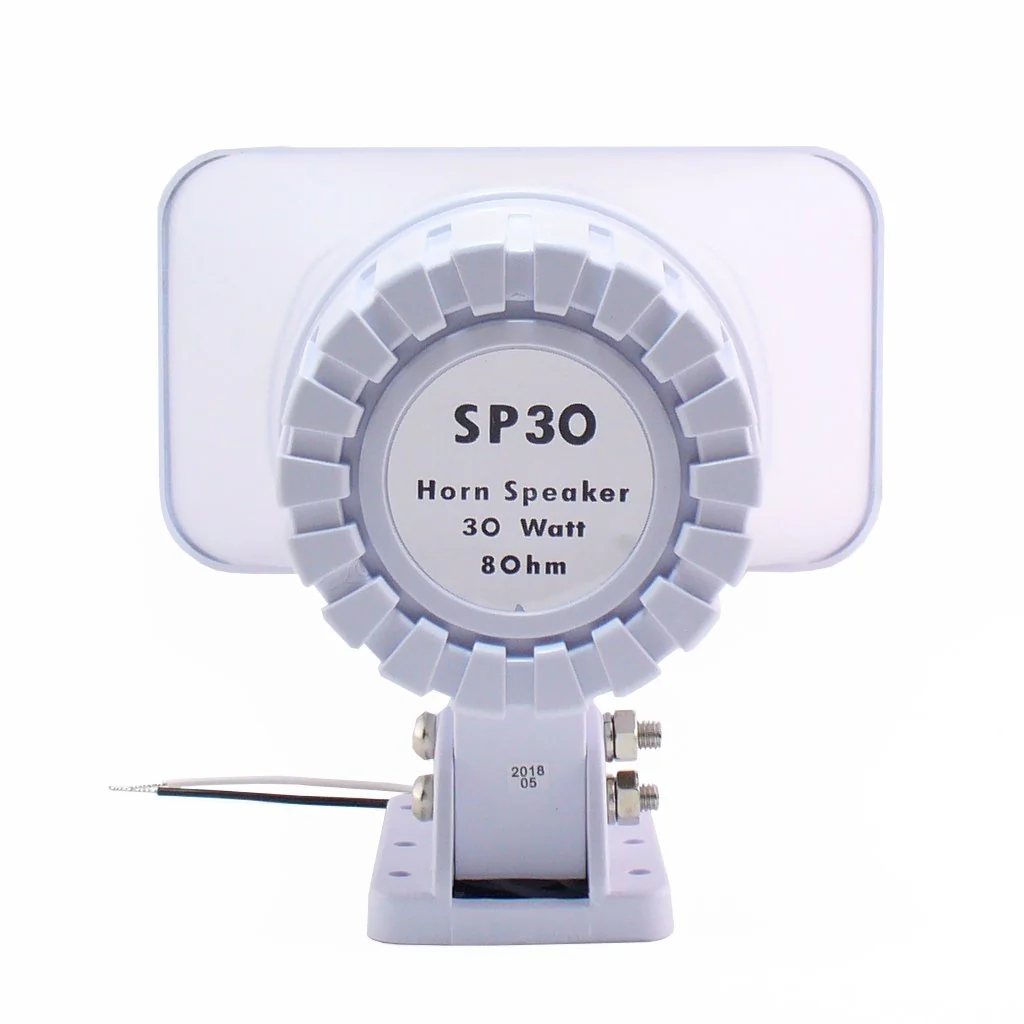

ELK exterior speaker is a multi-purpose horn style speaker rated at 30 watts nominal with 8 ohm impedance. It features a high fidelity voice coil, pre-wired for easy installation, and is suitable for voice or sounds in alarm systems or paging applications. Designed for interior or exterior use with an operating temperature range of 4°F to 140°F (-20°C to 60°C).
Key Configuration
- • Impedance: 8 Ohms
- • Rating: 30 Watts nominal
- • Frequency response: 500 to 7000 Hz
- • Operating temperature: 4°F to 140°F (-20°C to 60°C)
- • Dimensions: 6" × 8" × 9.5"; color: white
| Impedance | 8 Ohms |
| Rating | 30 Watts Nominal |
| Frequency Response | 500 to 7000 Hz |
| Operating Temperature Range | 4° to 140° F (-20° to 60° C) |
| Size | 6" x 8" x 9.5" |
| Color | White |
Name
Description
Size
Downloads
File
Datasheet
0.3mb
