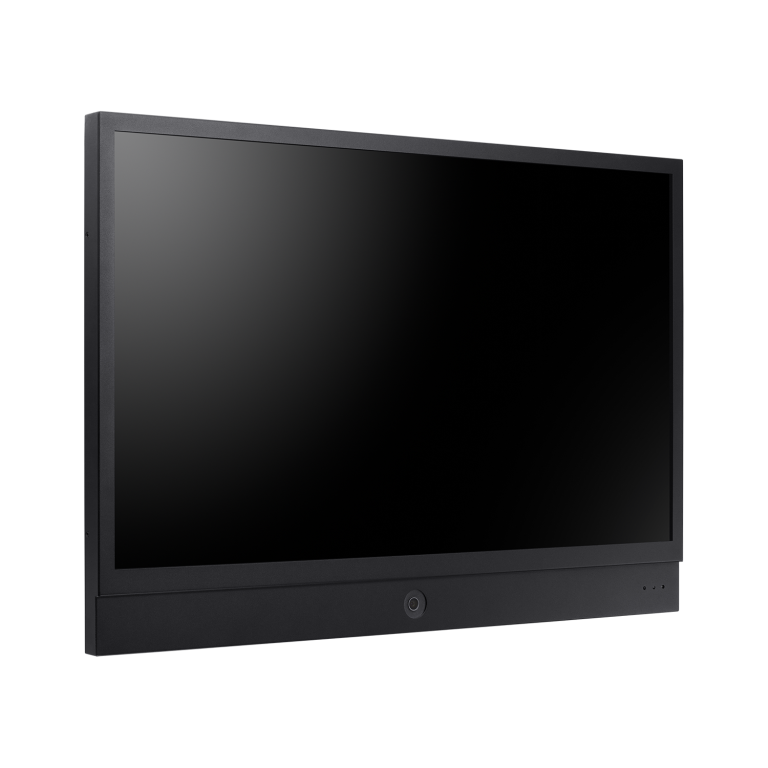

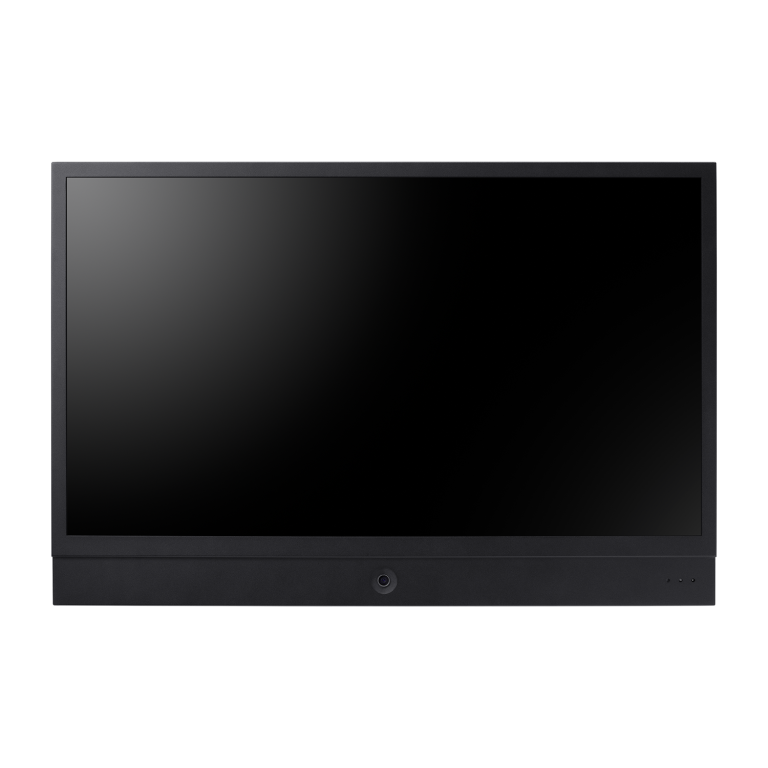

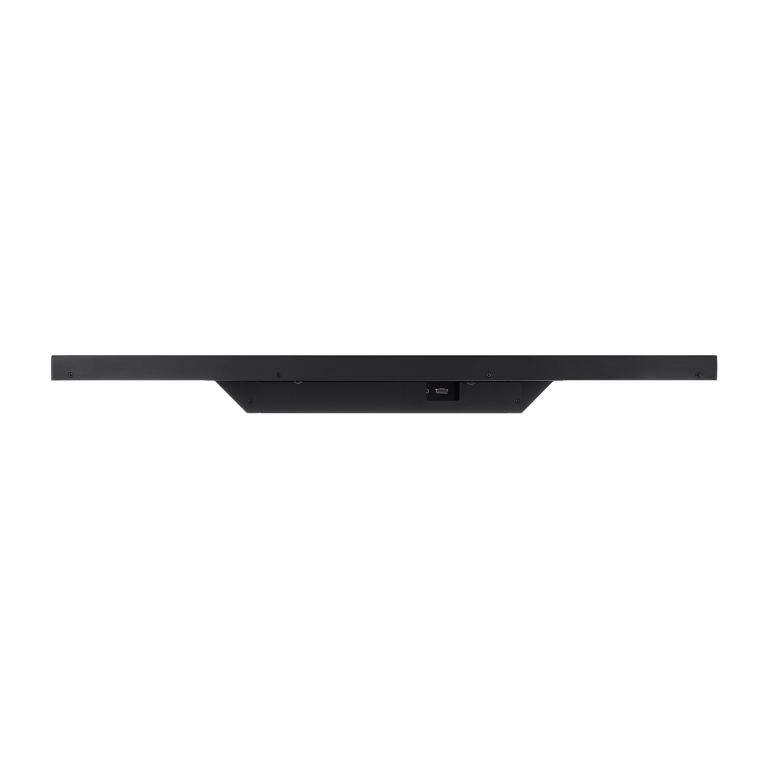

Hanwha - SMT-3221PV - 32” (31.55") AI Enabled IP public view monitor (AI PVM), 1080p (1920x1080 60Hz), 16:9 Aspect Ratio, HDMI In (x2), Ethernet, Built-in Speakers (2W x2), AI Object Classification and Analytics, Face Detection, Motion Activated LED
Part number:
SMT-3221PV
Price:
32” (31.55") AI Enabled IP public view monitor (AI PVM),1080p (1920 x 1080 60Hz), HDMI (x2), Ethernet, 16:9 Aspect Ratio, Built-in speaker (2W x2), Face Detection for Visual Deterrence, AI Analytics, Customizable Banner Overlay Messages, Built-In 2MP IP Camera, 3.06mm Fixed Lens (107.7" H, 59.0V), 120dB WDR, H.265/H.264/MJPEG, Slide Show & Live Video, Micro SD/SDHC/SDXC, VESA Compatible (100x100 / 200x100 / 200x200), Black Cabinet, Hallway View Mode, Portrait and Landscape Display Support, HPoE 802.3bt, DC 24V. ***Power adapter not included***
Features:
- 2MP AI Camera, f1.6
- SUNAPI/Onvif Profile S/G/T/M
- AI Object Classification and Analytics
- Motion and event activated LED and audio alarm
- Landscape and Portrait modes
- Face Detection box
- Image Slide Show (No additional storage is required)
- Customizable text overlay with default "Recording in progress“ message
- On-screen custom logo image
- Monitor management via WebUI (Power On/Off/Scheduling, Banner etc.)
- Steel cabinet
- Dual power HPoE and DC24V (adapters are not included)
* DC 24V Power Adapter (SPU-60240), HPoE Injector (SPO-8315)
| Alarm | Alarm I/O | Input 1ea / Output 1ea |
| Network | Ethernet | 1 RJ-45 10/100BASE-T, |
| General | Edge Storage | Micro SD/SDHC/SDXC 1slot 256GB |
| On Screen Display | ||
| Functions | VESA™ DPM Compatible | |
| Language | English, Spanish, French | |
| General | ||
| Electrical | Input Voltage | DC24V, HPOE 802.3bt |
| Power Consumption | 56W | |
| Environmental | Operating Temperature | 0 ~ +40°C (+32°F ~ +104°F) |
| Operating Humidity | 10% ~ 80% (non-condensing) | |
| Mechanical | Dimensions without Stand (WxHxD) | 734mm(W) x 490mm(H) x 68mm(D) |
| Weight | 12.4kg | |
| Cabinet Color | Black | |
| VESA Mounts Interface | VESA 100 x 100mm, 200 x 100mm, 200 x 200mm |
Name
Description
Size
Downloads
File
Datasheet
0.4mb
File
Quick Guide
0.3mb
File
Quick Start Guide
0.4mb
